MAX8627

PRODUCTION

Low VBATT, 20µA IQ, 1MHz Synchronous Boost Converter with True Shutdown

Ideal for DSC Motors and Backup Power

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Overview

  • 1MHz PWM Switching Frequency
  • True Shutdown Output
  • Up to 95% Efficiency
  • 1.0A Guaranteed Output Current
  • Soft-Start Eliminates Inrush Current
  • 20µA (typ) Quiescent Current
  • 0.1µA Logic-Controlled Shutdown
  • Internal Synchronous Rectifier
  • Internal Compensation
  • Adjustable Current Limit
  • Low-Noise Antiringing Feature
  • Tiny 14-Pin, 3mm x 3mm, TDFN Package

The MAX8627 step-up converter is a high-efficiency, low-quiescent current, synchronous boost converter with True Shutdown™ and inrush current limiting. The MAX8627 generates any boosted output voltage from 3V to 5V from either a 2-cell NiMH/NiCd or a single-cell Li+/Li polymer battery.

Quiescent current is only 20µA (typ), and at light loads the converter pulses only as needed for best efficiency. At higher loads, PWM mode maintains fixed 1MHz operation for lowest noise and ripple.

The MAX8627 includes an internal soft-start to limit inrush current to a maximum of 500mA. Additional features include True Shutdown, internal compensation, and adjustable current limit. The MAX8627 is available in a tiny 3mm x 3mm TDFN package and is ideal for use in handheld devices such as DSCs, PDAs, and smartphones.

Applications

  • Cell Phones, PDAs, MP3 Players
  • DSC Motors and Backup Power
  • Microprocessor/DSP Core Power
  • Portable Handheld Devices
MAX8627
Low VBATT, 20µA IQ, 1MHz Synchronous Boost Converter with True Shutdown

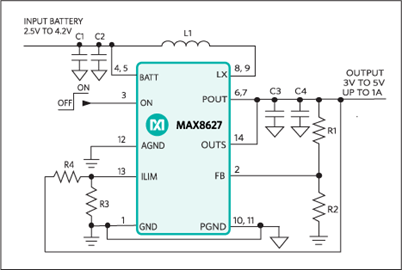

MAX8627: Typical Operating Circuit
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

Reliability Data 1

Technical Articles 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

MAX8627EVKIT

Evaluation Kit for the MAX8627

Buy Now View Details

Features and Benefits

  • 1MHz PWM Switching Frequency
  • True Shutdown™ Output
  • Up to 95% Efficiency
  • 1.0A Guaranteed Output Current at VIN > 3V
  • Fast Soft-Start Eliminates Inrush Current
  • 20µA (typ) Quiescent Current
  • 0.1µA Logic-Controlled Shutdown
  • Tiny 14-Pin, 3mm x 3mm TDFN IC Package
  • Fully Assembled and Tested

Product Details

The MAX8627 evaluation kit (EV kit) is a fully assembled and tested circuit for evaluating the MAX8627 step-up converter. The MAX8627 EV kit operates from a 1.8V to 5.5V supply, and provides up to 1A output current from its 5V output. The output voltage can be adjusted from 3V to 5V by changing a resistor on the board.

Applications

  • Cell Phones, PDAs, MP3 Players
  • DSC Motors and Backup Power
  • Microprocessor/DSP Core Power
  • Portable Handheld Devices
MAX8627EVKIT
Evaluation Kit for the MAX8627
