MAX825

5-Pin Microprocessor Supervisory Circuits with Watchdog Timer and Manual Reset

Industry's-First SOT Reset ICs with Watchdog and Manual Reset

PRODUCTION

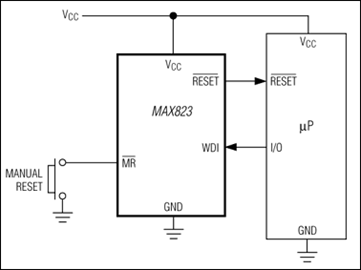

MAX823, MAX823L, MAX823M, MAX823R, MAX823S, MAX823T, MAX823Y, MAX823Z, MAX824, MAX824L, MAX824M, MAX824R, MAX824S, MAX824T, MAX824Y, MAX824Z, MAX825, MAX825L, MAX825M, MAX825R, MAX825S, MAX825T, MAX825Y, MAX825Z: Typical Operating Circuit slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 16

1ku List Price Starting From $2.47

Features

Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power Supplies
Operating Current:
- 6µA (MAX823L/M) (SC70)
- 2µA (MAX825T/S/R/Z/Y) (SC70)
Fully Specified Over Temperature
140ms min Power-On Reset
Guaranteed active-low RESET Valid to V_CC = 1V
Power-Supply Transient Immunity
Watchdog Timer with 1.6s Timeout (MAX823/MAX824)
Manual Reset Input (MAX823/MAX825)
No External Components

Additional Details

The MAX823/MAX824/MAX825 microprocessor (µP) supervisory circuits combine reset output, watchdog, and manual reset input functions in 5-pin SOT23 and SC70 packages. They significantly improve system reliability and accuracy compared to separate ICs or discrete components. The MAX823/MAX824/MAX825 are specifically designed to ignore fast transients on V_CC.

Seven preprogrammed reset threshold voltages are available (see Reset Threshold Table in the full data sheet). All three devices have an active-low reset output, which is guaranteed to be in the correct state for V_CC down to 1V. The MAX823 also offers a watchdog input and manual reset input. The MAX824 offers a watchdog input and a complementary active-high reset. The MAX825 offers a manual reset input and a complementary active-high reset. The Selector Guide explains the functions offered in this series of parts.

Applications

Automotive Electronics
Computers and Controllers
Critical µP Monitoring
Embedded Controllers
Intelligent Instruments
Portable Battery-Powered Equipment

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 16

1ku List Price Starting From $2.47

Technical Documents 2

MAX823-MAX825Z: 5-Pin Microprocessor Supervisory Circuits with Watchdog Timer and Manual Reset Data Sheet (Rev.5) 03/14/2006

Watchdogs Improve System Reliability—How to Choose the Right Part 03/26/2003

Design Resources 16

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX825LEUK+	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825LEUK+T	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825LEXK+	5-SC70-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825LEXK+T	5-SC70-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825MEUK+	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825MEUK+T	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825REUK+	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825REUK+T	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825SEUK+	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825SEUK+T	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825SEXK+T	5-SC70-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825TEUK+	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825TEUK+T	5-SOT_23-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825TEXK+	5-SC70-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825TEXK+T	5-SC70-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX825ZEXK+T	5-SC70-N/A	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
