MAX78630+PPM

Energy Measurement Processor for Polyphase Monitoring Systems

Autonomous Power Monitoring and Control for Embedded Applications

Viewing:

Overview

Six Configurable Analog Inputs for Monitoring a Variety of Delta- and Wye-Connected Three-Phase Topologies
Supports Current Transformers (CTs), Resistive Shunts, and Rogowski Coils
Delta-Sigma ADC with Precision Voltage Reference and On-Chip Temperature Sensor
Internal or External Oscillator Timing Reference
SPI, I²C, or UART Interface Options with Configurable I/O Pins for Alarm Signaling, Address Pins, or User Control
24-Bit Measurement Processor with Integrated Firmware and Flash Memory for Nonvolatile Storage of Calibration and Configuration Parameters
Supports Extraction of Individual Harmonics
Small 32-TQFN Package and Reduced Bill of Materials

The MAX78630+PPM is an energy measurement processor for polyphase power-monitoring systems. It is designed for real-time monitoring for a variety of typical three-phase configurations in industrial applications. It is available in a 32-pin TQFN package with an exposed pad.

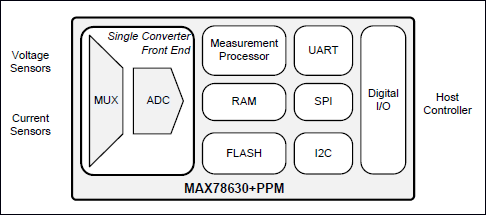

The MAX78630+PPM provides up to six analog inputs for interfacing to voltage and current sensors. Scaled voltages from the sensors are fed to the single converter front-end using a high-resolution delta-sigma converter. Supported current sensors include current transformers (CTs), Rogowski coils, and resistive shunts.

An embedded 24-bit measurement processor and firmware perform all necessary computations and data formatting for accurate reporting to the host. With integrated flash memory for storing nonvolatile calibration coefficients and device configuration settings, the MAX78630+PPM is capable of being a completely autonomous solution.

The MAX78630+PPM is designed to interface to the host processor via the UART interface. Alternatively, SPI or I²C can also be used.

Applications

Building Automation Systems (Commercial, Industrial)
Inverters and Renewable Energy Systems

Documentation

Data Sheet 1

MAX78630PPM: Energy Measurement Processor for Polyphase Monitoring Systems Data Sheet (Rev.3) 09/17/2014

User Guide 1

UG-5713: MAX78630+PPM Evaluation Kit User Manual 09/25/2013

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluation Kit for the MAX78630+PPM

Buy Now View Details

Features and Benefits

Includes Shunt and Current Transformers
Windows-Based GUI Allows for Easy Configuration and Reading of Measurement Data

Product Details

The MAX78630+PPM evaluation kit (EV kit) demonstrates the capability of the MAX78630+PPM for monitoring a three-phase AC load using up to three voltages and three currents (sensors included). The EV kit connects to a PC through a USB cable that provides both power and data communication to the board. A Windows®-based graphical user interface (GUI) communicates with the device for simplified access to measurement data and controls.
