MAX77847

Name: MAX77847
Brand: Analog Devices
Availability: InStock

RECOMMENDED FOR NEW DESIGNS

5.5V Input, 4.5A Switching Current High Efficiency Buck-Boost Converter

Data Sheet (Rev. 0) Product Selection Table

Part Models: 4
1ku List Price: Starting From $1.25

Viewing:

Overview

Flexible System Integration

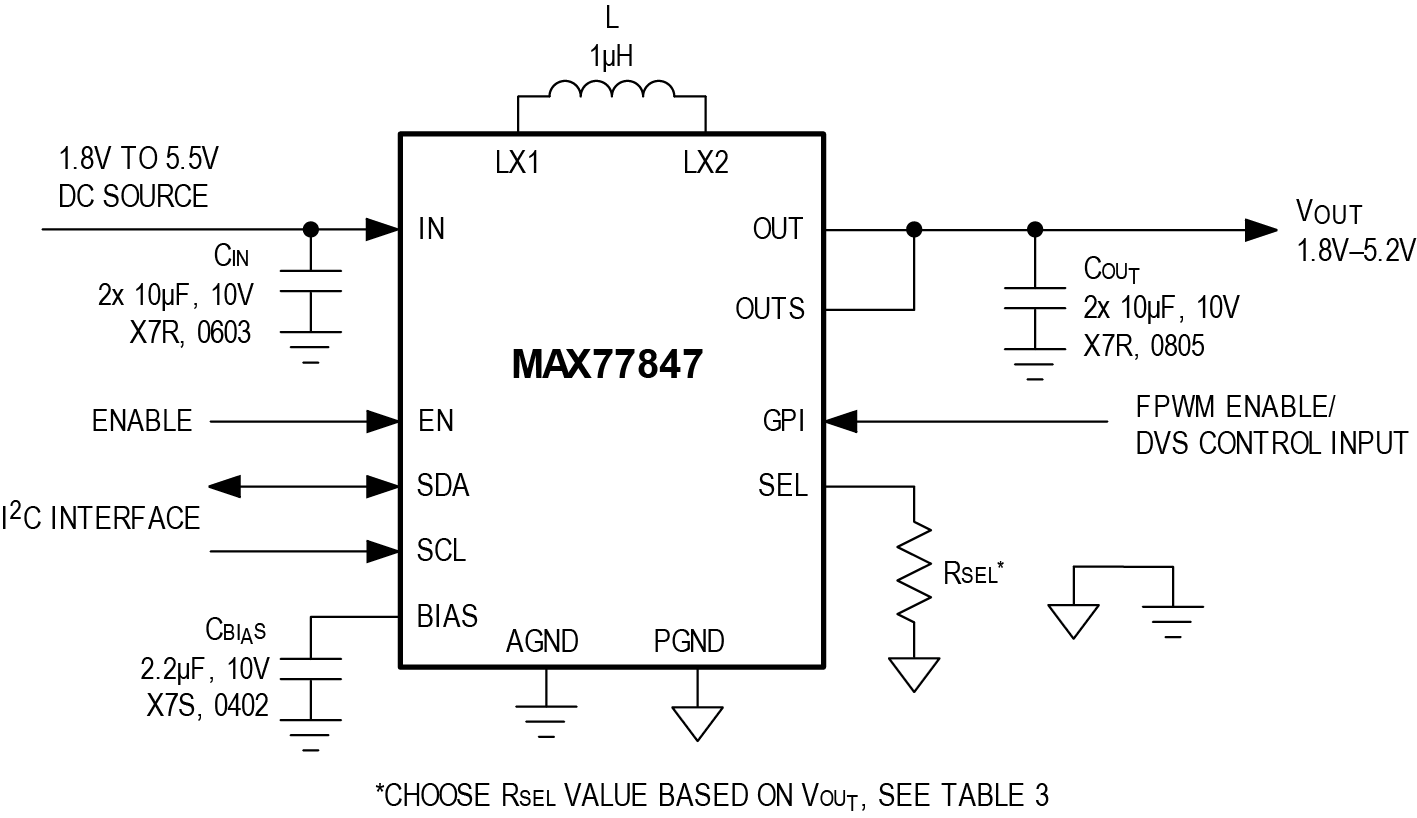

- 1.8V to 5.5V Input Voltage Range
- 1.8V to 5.2V (50mV steps) Output Voltage Range
- 4.5A/3.6A Switching Current Limit
- 14μA Ultra-Low I_Q
I²C Interface
- Programmable Output Voltage
- Programmable Output Slew Rate (DVS)
- Forced PWM Mode Operation (FPWM)
- Output Active Discharge

I²C configurable GPI Pin
- External FPWM Enable Input
- DVS Control Input
SEL Pin to Configure Device
- Default Start-Up Voltage (16 Options)
- I²C Target Address (2 Options)
Soft-Start

Part Models: 4
1ku List Price: Starting From $1.25

Documentation

Data Sheet 1

MAX77847: 5.5V Input, 4.5A Switching Current High Efficiency Buck-Boost Converter Data Sheet (Rev.0) 10/23/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX77847AEWL+	WLCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX77847AEWL+T	WLCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX77847BEWL+	WLCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
MAX77847BEWL+T	WLCSP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluation Kit for MAX77847

Buy Now View Details

Features and Benefits

Proven PCB Reference Design and Layout
Fully Assembled and Tested
Sense points for High-Accuracy measurements
Probe sockets for sensitive nodes
Adjustable startup voltage using a potentiometer (R3)
I²C header to use external I²C interface
MAXUSB_INTERFACE# supports using the Windows^®-based GUI
Provision for external logic level support using V_IO header

Product Details

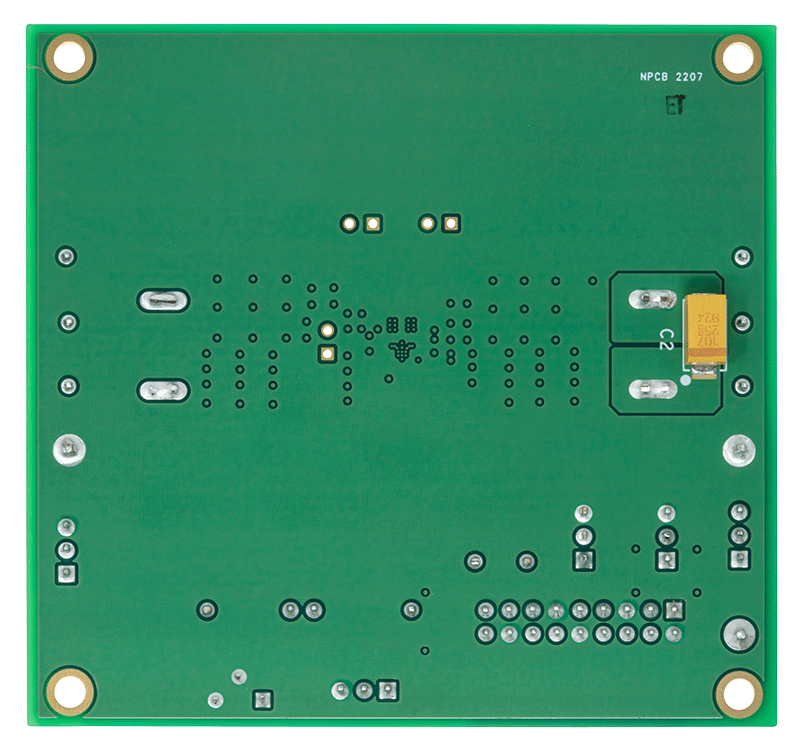

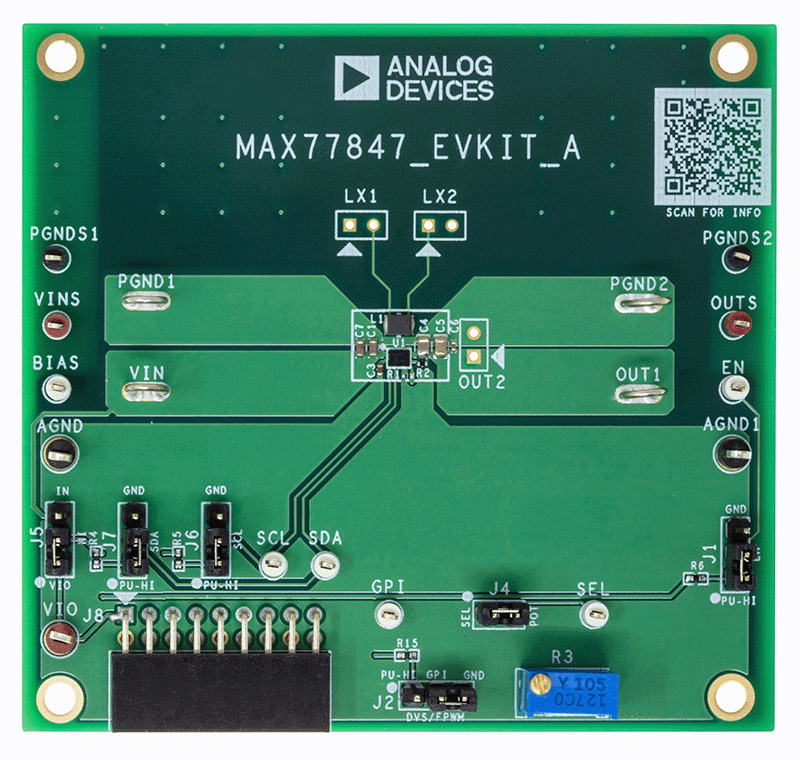

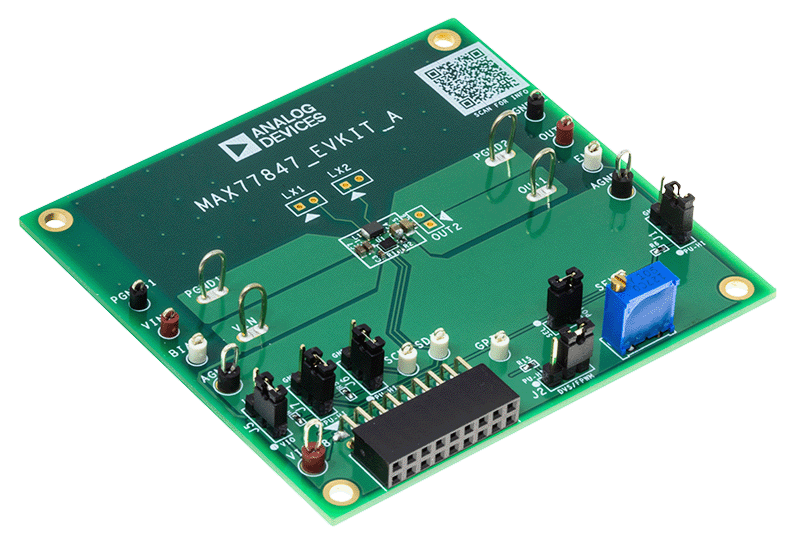

The MAX77847 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the capabilities of MAX77847 in the Wafer-Level Packaging (WLP) package. It is a highly efficient high-performance buck-boost regulator with a switching current limit of 4.5A/3.6A and an industry-leading quiescent current of 14μA for battery-powered applications. The IC supports an input voltage range from 1.8V to 5.5V and an output voltage range from 1.8V to 5.2V. The output voltage can be set using the SEL pin, and dynamic voltage scaling can be achieved using the GPI pin without using the I²C interface.

The I²C interface is optional. However, it allows changing the output voltage dynamically in 50mV steps. In addition, the I²C interface also allows selecting the switching current limit, ramp-up/ramp-down slew rate, Forced PWM Mode Operation (FPWM) operation, and monitoring protection status for overcurrent, overvoltage, and thermal shutdown protection for the part. MAXUSB_INTERFACE# allows the use of a Windows^® based graphical-user interface (GUI) and a detailed register-based interface to exercise all the features of the IC. The EV kit is compatible with any version of MAX77847 IC (MAX77847BEWL+ is the default version installed on the EV kit).
