Product Lifecycle Obsolete
The models in this product family are no longer available.
Evaluation Kits (1)

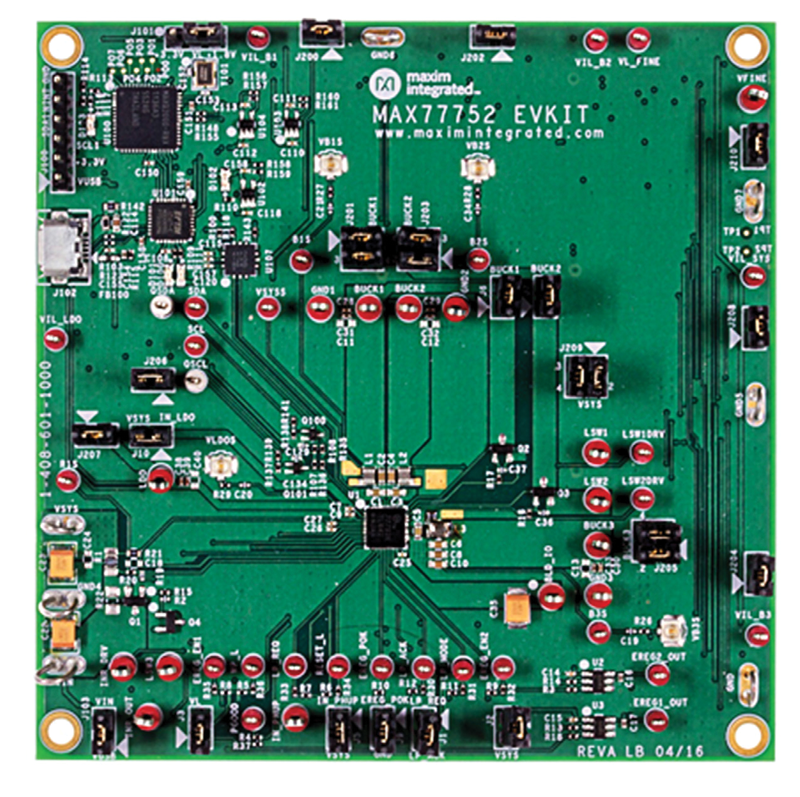

The MAX77752 evaluation kit (EV kit) is a fully assembled and tested printed circuit board (PCB) that demonstrates the highly integrated MAX77752 PMIC. The MAX77752 comprises three buck converters, a low dropout linear regulator, two external regulators enable outputs, two dedicated load switch controllers, and an inrush-current limiter which can be configured as a third load switch controller using OTP.
The EV kit also includes a MAXQ2000 microcontroller command module that provides the I2C interface to control power sequence, inrush current, individual output on/off, and setting regulator output voltage.
The MAX77752 evaluation software is provided for easy evaluation.
- Automation Systems
- Gaming Consoles
- Handheld Devices
- Solid-State Drive Systems
Features & Benefits
- USB to I2C Converter Allows for Easy Communication
- Level Translator (MAX3395) Allows for Adjusting I2C Bus Voltage from 1.8V to 3.3V
- On-Board Electronics Load Allows for Easy Evaluation
- GUI Allows Static/Dynamic Load Adjustment for Buck Converters, LDO, LSWs, and SYS
- MOSFET can be Driven by External Function Generator to Evaluate Transient Performance for Each Regulator
- Proven PCB Reference Design and Layout
- Fully Assembled and Tested
Documentation & Resources
UG-6627: MAX77752 Programmer's Guide5/10/2018
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
|Part Number||Material Declaration||Reliability Data||Pin/Package Drawing||CAD Symbols, Footprints & 3D Models|
|MAX77752AETL+||Material Declaration||Reliability Data||Thin Quad Flatpack, No Leads|
|MAX77752AETL+T||Material Declaration||Reliability Data||Thin Quad Flatpack, No Leads|
|MAX77752BETL+T||Material Declaration||Reliability Data||Thin Quad Flatpack, No Leads|
|MAX77752CETL+T||Material Declaration||Reliability Data||Thin Quad Flatpack, No Leads|
|MAX77752DETL+T||Material Declaration||Reliability Data||Thin Quad Flatpack, No Leads|
|Wafer Fabrication Data|
