MAX77371

RECOMMENDED FOR NEW DESIGNS

5A Boost Converter with I²C Interface, Dynamic Voltage Scaling, and Short Circuit Protection

5A Boost Converter with I2C Interface, Dynamic Voltage Scaling, and Short Circuit Protection

Data Sheet (Rev. 2) Product Selection Table

Part Models: 4
1ku List Price: Starting From $0.99

Viewing:

Overview

2.5V to 5.5V Input Voltage Range
4.5V to 10.0V Output Voltage Range
Up to 5.0A Cycle-by-Cycle Inductor Current Limit
95% Peak Efficiency
I²C Serial Interface Enabling:
- Dynamic Voltage Scaling (DVS)
- Mode Configuration
- Current Limit Adjustment
Ultrasonic Mode (USM with f_SW > 25kHz) to Alleviate Acoustic Audible Interference for Light Load Operation
2MHz Switching Frequency

Forced PWM (FPWM) Operation
True Shutdown Mode
- Output Disconnects from Input with no Forward or Reverse Current
Output Short Circuit Protection
Overcurrent Protection
Overvoltage Protection
Thermal Shutdown Protection

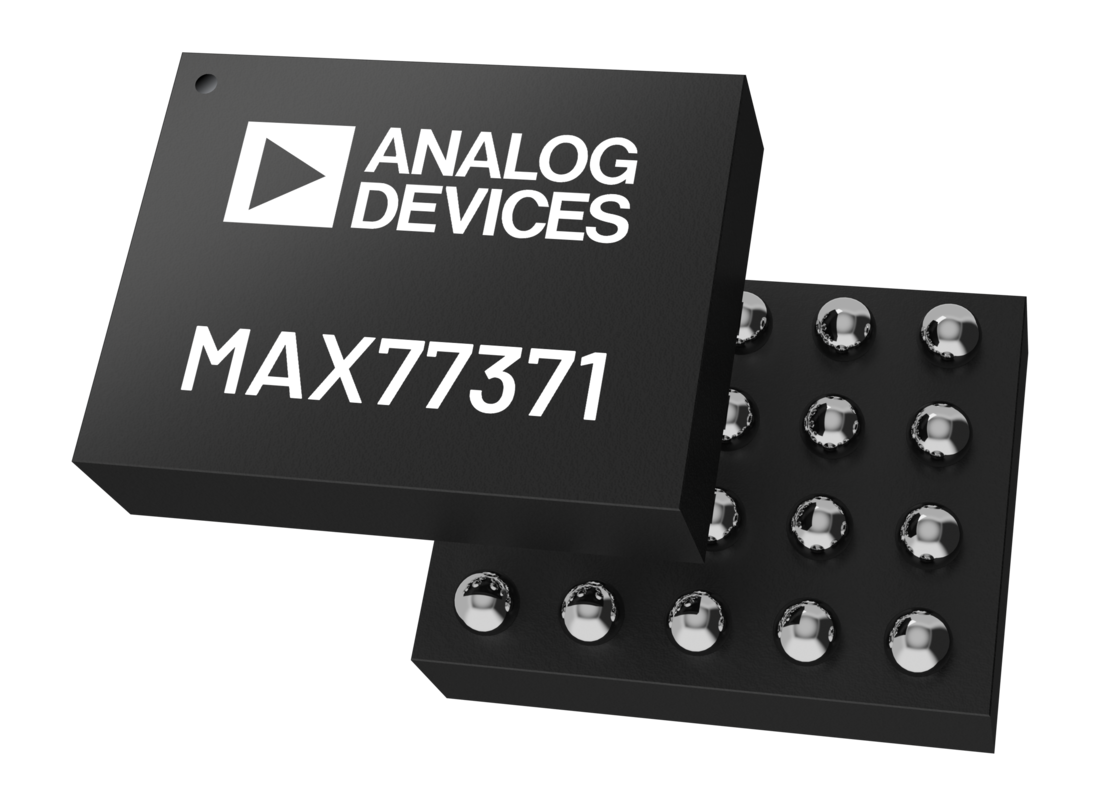

Package:
- 1.89mm x 1.46mm, 0.35mm Pitch 20-Bump WLP
-40°C to +125°C Operating Temperature Range

The MAX77371 is an ultrasonic, high-performance boost converter with an input voltage range from 2.5V to 5.5V and a configurable switching current limit of up to 5.0A. The IC operates in Ultrasonic mode (f_SW > 25kHz) at low loads and transitions into Skip and CCM modes of operation at higher load currents. When selected, the device can operate in forced PWM mode.

The output voltage can be widely varied between 4.5V and 10.0V.

The MAX77371 features a true shutdown mode that disconnects V_IN and V_OUT when the EN pin is pulled low. It also implements short circuit, overcurrent, voltage, and temperature protection features. The MAX77371 is available in a 20-bump, 0.35mm pitch wafer-level package (WLP).

APPLICATIONS

AR/VR Laser Driver Bias
Wireless Charging Circuit Bias

Part Models: 4
1ku List Price: Starting From $0.99

Documentation

Data Sheet 1

MAX77371: 5A Boost Converter with I²C Interface, Dynamic Voltage Scaling, and Short Circuit Protection (Rev.2) 02/06/2025

User Guide 1

MAX77371EVKIT User Guide: Evaluation Kit for the MAX77371 (Rev.1) 02/06/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX77371AAWP+	N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX77371AAWP+T	N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX77371PAWP+	N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX77371PAWP+T	N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

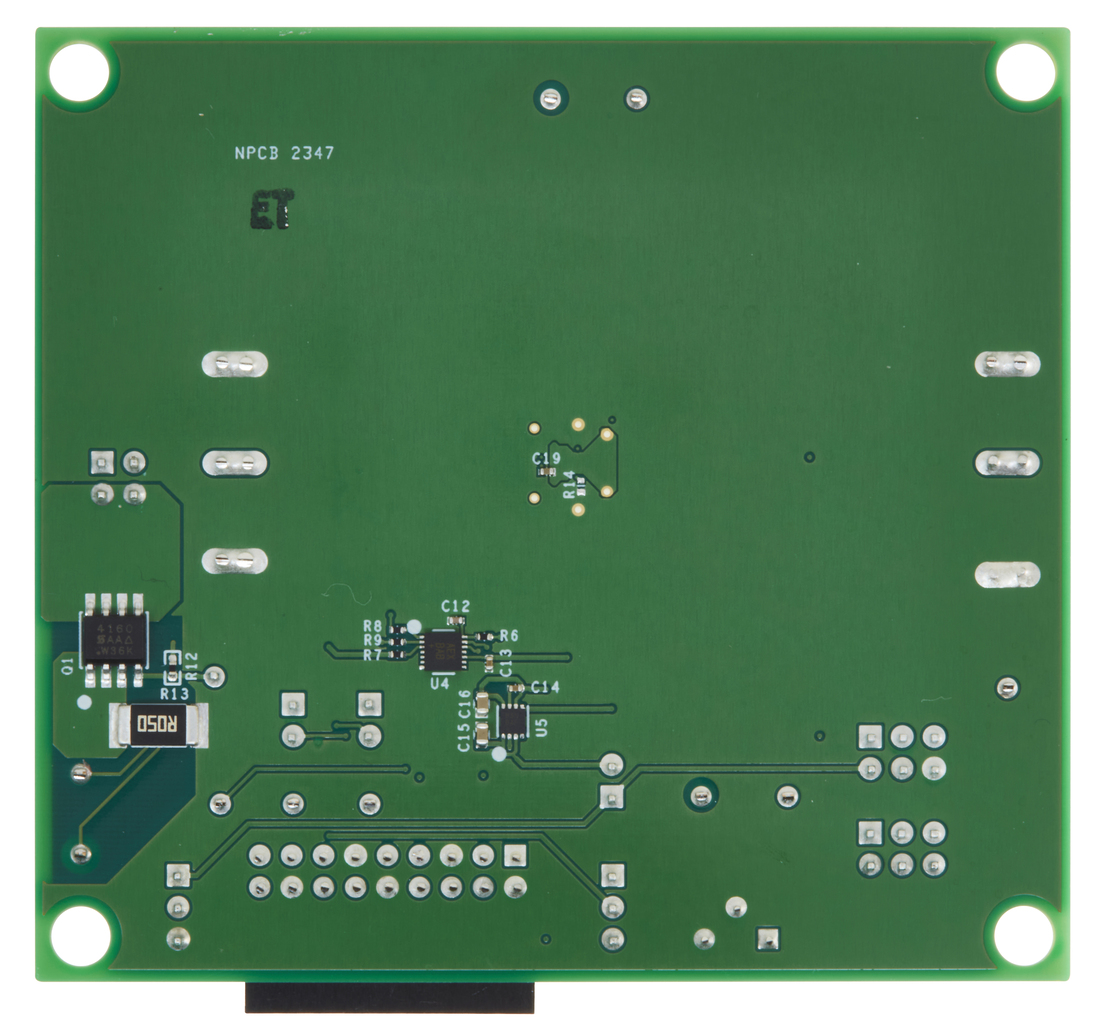

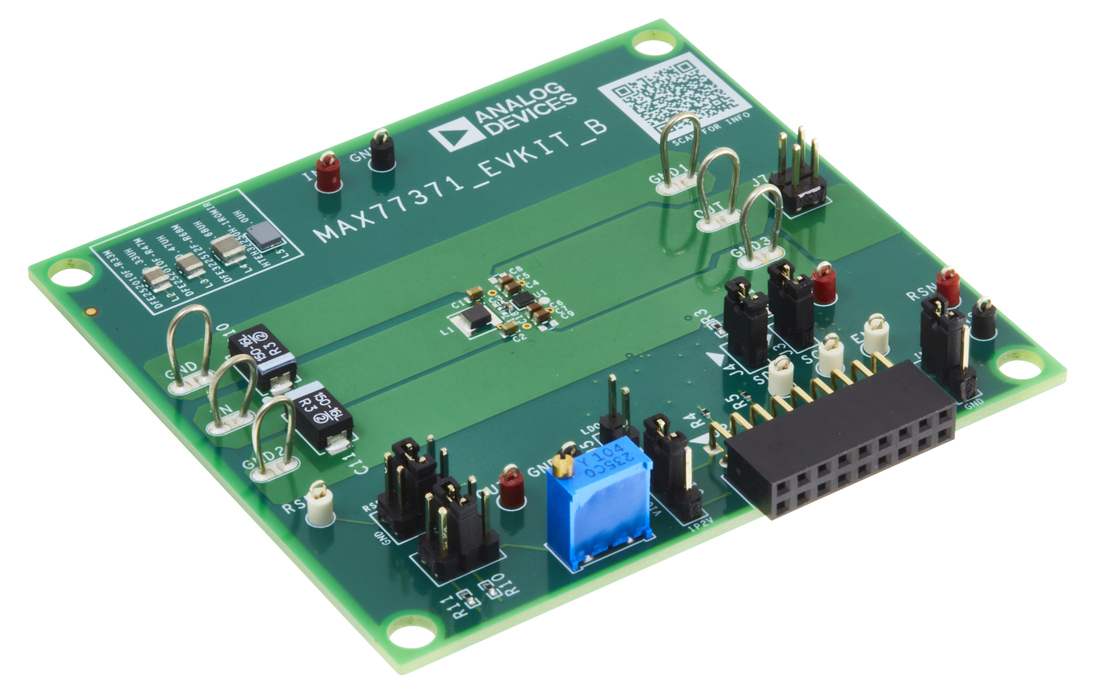

Evaluation Kit for MAX77371

Buy Now View Details

Features and Benefits

Evaluates the MAX77371 IC
(4 x 5 Bump, 0.35mm Pitch)
2.5V to 5.5V Input Range
4.5V to 10V Configurable Output Voltage

Product Details

The MAX77371 evaluation kit (EV kit) evaluates the MAX77371 IC in a wafer-level package (WLP). The MAX77371 is an ultrasonic, high-performance boost converter with an input range from 2.5V to 5.5V. The EV kit comes with the MAX77371AAWP+ installed.

Resources

MAX77371EVKIT User Guide: Evaluation Kit for the MAX77371 (Rev.1)
2/6/2025

MAX77371EVKIT Gerber Files
2/6/2025

Software

MAX77371EVKIT Gui Setup
6.7 M
