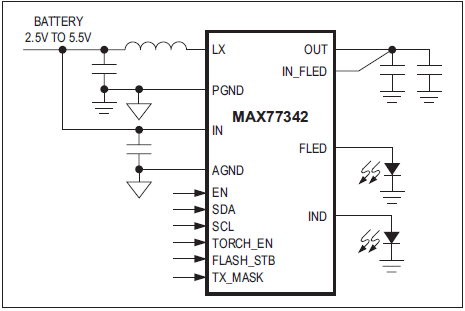

The MAX77342 provides a highly efficient solution for cell phone camera flash applications by integrating a 1.6A PWM DC-DC step-up converter and three programmable high-side, low-dropout LED current regulators. An I2C interface provides flexible control of the step-up converter, indicator, assist, torch, and flash mode selection, and flash safety timer duration settings.
The device operates down to 2.5V, making it future proof for new battery technologies. The step-up converter features an internal switching MOSFET and synchronous rectifier to improve efficiency and minimize external component count. Three high-side, high-current regulators provide support for indicator, assist, torch, and flash modes. They can source up to 1600mA in flash mode, 100mA in torch and assist light mode, and 16mA for indicator. The output voltage is adaptively controlled, stepping up voltage only as high as necessary to support the required LED forward voltage in flash mode. This approach reduces IC power dissipation by optimizing the step-up ratio and by minimizing the losses in the current regulator. In torch, assist light, and indicator, the current regulators are powered directly from IN, providing the highest system efficiency.
Additionally, the device includes a low input voltage protection function that reduces flash current during low battery conditions to prevent system undervoltage lockup. Other features include shorted LED detection, overvoltage and thermal shutdown protection, and low-power standby and shutdown modes. The MAX77342 is available in a 16-bump, 0.5mm pitch WLP package (2.065mm x 2.065mm).
Design Solution: How to Power Your QSFP-DD Optical Transceiver ›
Applications
- Cell Phones and Smartphones
