MAX7325
I2C Port Expander with 8 Push-Pull and 8 Open-Drain I/Os
Show MoreLow Operating Supply Voltage I2C Port Expander with 8 Push-Pull and 8 Configurable Open-Drain I/Os
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support PageFeatures
- 400kHz I2C Serial Interface
- +1.71V to +5.5V Operating Voltage
- 8 Push-Pull Output Ports
- 8 Open-Drain I/O Ports, Rated at 20mA Sink Current
- I/O Ports are Overvoltage Protected to +6V
- Selectable I/O Port Power-Up Default Logic States
- Transient Changes are Latched, Allowing Detection Between Read Operations
- Active-Low INT Output Alerts Changes on Inputs
- AD0 and AD2 Inputs Select from 16 Slave Addresses
- Low 0.6µA (typ) Standby Current
- -40°C to +125°C Temperature Range

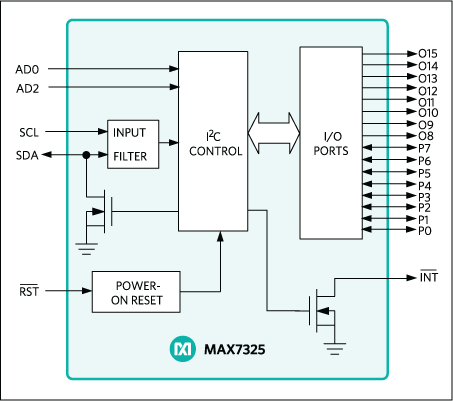

The MAX7325 2-wire serial-interfaced peripheral features 16 I/O ports. Ports are divided into eight push-pull outputs and eight I/Os with selectable internal pullups and transition detection. Eight ports are push-pull outputs and eight I/Os may be used as a logic input or an open-drain output. Ports are overvoltage protected to +6V.
All I/O ports configured as inputs are continuously monitored for state changes (transition detection). State changes are indicated by the active-low INT output. The interrupt is latched, allowing detection of transient changes. When the MAX7325 is subsequently accessed through the serial interface, any pending interrupt is cleared. The open-drain outputs are rated to sink 20mA, and are capable of driving LEDs. The active-low RST input clears the serial interface, terminating any I2C communication to or from the MAX7325.
The MAX7325 uses two address inputs with four-level logic to allow 16 I2C slave addresses. The slave address also determines the power-up logic state for the I/O ports, and enables or disables internal 40kΩ pullups in groups of four ports.
The MAX7325 is one device in a family of pin-compatible port expanders with a choice of input ports, open-drain I/O ports, and push-pull output ports (see Table 1 of the full data sheet).
The MAX7325 is available in 24-pin QSOP and TQFN packages and is specified over the -40°C to +125°C automotive temperature range.
Applications
- Automotive
- Cell Phones
- Notebooks
- SAN/NAS
- Satellite Radio
- Servers
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
MAX7325
Documentation
Filters
1 Applied
Documentation
Device Drivers 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
MAX7325AEG+ | 24-QSOP-150_MIL |
|
|
MAX7325AEG+T | 24-QSOP-150_MIL |
|
|
MAX7325AEG/V+ | 24-QSOP-150_MIL |
|
|
MAX7325AEG/V+T | 24-QSOP-150_MIL |
|
|
MAX7325ATG+ | 24-TQFN-4X4X0.75 |
|
|
MAX7325ATG+T | 24-TQFN-4X4X0.75 |
|
- MAX7325AEG+
- Pin/Package Drawing
- 24-QSOP-150_MIL
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX7325AEG+T
- Pin/Package Drawing
- 24-QSOP-150_MIL
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX7325AEG/V+
- Pin/Package Drawing
- 24-QSOP-150_MIL
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX7325AEG/V+T
- Pin/Package Drawing
- 24-QSOP-150_MIL
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX7325ATG+
- Pin/Package Drawing
- 24-TQFN-4X4X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- MAX7325ATG+T
- Pin/Package Drawing
- 24-TQFN-4X4X0.75
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 9, 2015
- 1481
WAFER FAB
MAX7325AEG+
PRODUCTION
MAX7325AEG+T
PRODUCTION
MAX7325ATG+
PRODUCTION
MAX7325ATG+T
PRODUCTION
Aug 6, 2015
- 1512_CANCELATION
WAFER FAB
MAX7325AEG/V+T
PRODUCTION
Feb 20, 2015
- 1508
WAFER FAB
MAX7325AEG/V+T
PRODUCTION
Jun 20, 2016
- 1612
ASSEMBLY
MAX7325ATG+
PRODUCTION
MAX7325ATG+T
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 9, 2015
- 1481
WAFER FAB
MAX7325AEG+
PRODUCTION
MAX7325AEG+T
PRODUCTION
MAX7325ATG+
PRODUCTION
MAX7325ATG+T
PRODUCTION
Aug 6, 2015
- 1512_CANCELATION
WAFER FAB
Feb 20, 2015
- 1508
WAFER FAB
Jun 20, 2016
- 1612
ASSEMBLY
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Parts | Product Life Cycle | Description | ||
---|---|---|---|---|
Direct from Battery LED/GPIO Drivers10 |
||||
PRODUCTION |
I²C Port Expanders with Eight I/O Ports |
|||
PRODUCTION |
I²C Port Expanders with Eight I/O Ports |
|||
PRODUCTION |
I²C Port Expander with 4 Push-Pull Outputs and 4 Open-Drain I/Os |
|||
PRODUCTION |
I²C Port Expander with 4 Push-Pull Outputs and 4 Inputs |
|||
PRODUCTION |
I2C Port Expander with 8 Open-Drain I/Os |
|||
PRODUCTION |
I²C Port Expander with Eight Push-Pull Outputs |
|||
PRODUCTION |
I²C Port Expander with Eight Inputs and Maskable Transition Detection |
|||
PRODUCTION |
I²C Port Expander with Eight Push-Pull Outputs and Eight Inputs |
|||
PRODUCTION |
I²C Port Expander with 12 Push-Pull Outputs and Four Inputs |
|||
PRODUCTION |
I²C Port Expander with 12 Push-Pull Outputs and 4 Open-Drain I/Os |
Evaluation Kits 2
MAX7325EVCMAXQU
Evaluation Kit/Evaluation System for the MAX7325
Product Detail
The MAX7325 evaluation kit (EV kit) is a fully assembled and tested printed-circuit board (PCB) that demonstrates the capabilities of the MAX7325 I²C port expander with eight push-pull outputs and eight open-drain I/Os. The MAX7325 EV kit also includes Windows 2000/XP/Vista®-compatible software that provides a simple graphical user interface (GUI) for exercising the MAX7325's features.
The MAX7325 evaluation system (EV system) includes a MAX7325 EV kit and a Maxim CMAXQUSB serial-interface board. The CMAXQUSB board connects to a PC's USB port and allows the transfer of I²C commands to the MAX7325 EV kit.
The EV kit comes with the MAX7325ATG+ installed.
Applications
- Automotive
- Cell Phones
- Notebooks
- SAN/NAS
- Satellite Radio
- Servers
MAX7325EVKIT
Evaluation Kit/Evaluation System for the MAX7325
Product Detail
The MAX7325 evaluation kit (EV kit) is a fully assembled and tested printed-circuit board (PCB) that demonstrates the capabilities of the MAX7325 I²C port expander with eight push-pull outputs and eight open-drain I/Os. The MAX7325 EV kit also includes Windows 2000/XP/Vista®-compatible software that provides a simple graphical user interface (GUI) for exercising the MAX7325's features.
The MAX7325 evaluation system (EV system) includes a MAX7325 EV kit and a Maxim CMAXQUSB serial-interface board. The CMAXQUSB board connects to a PC's USB port and allows the transfer of I²C commands to the MAX7325 EV kit.
The EV kit comes with the MAX7325ATG+ installed.
