MAX6971: 16-Port, 36V Constant-Current LED Driver Data Sheet (Rev. 1)12/4/2005PDF245K
Overview
Features and Benefits
- 25Mb, Industry-Standard, 4-Wire Serial Interface
- 3V to 5.5V Logic Supply
- 16 Constant-Current LED Outputs Rated at 36V
- Up to 55mA Continuous Current per Output
- Output Current Programmed by Single Resistor
- 3% Current Matching Between Outputs
- 6% Current Matching Between ICs
- High-Dissipation, 24-Pin Packages
- -40°C to +125°C Temperature Range
Product Details
The MAX6971 serial-interfaced LED driver provides 16 open-drain, constant-current-sinking LED driver outputs rated at 36V. The MAX6971 operates from a 3V to 5.5V supply. The MAX6971 supply and the LEDs' supply or supplies can power up in any order. The constant-current outputs are programmed together to up to 55mA using a single external resistor. The MAX6971 operates with a 25Mb, industry-standard, 4-wire serial interface.

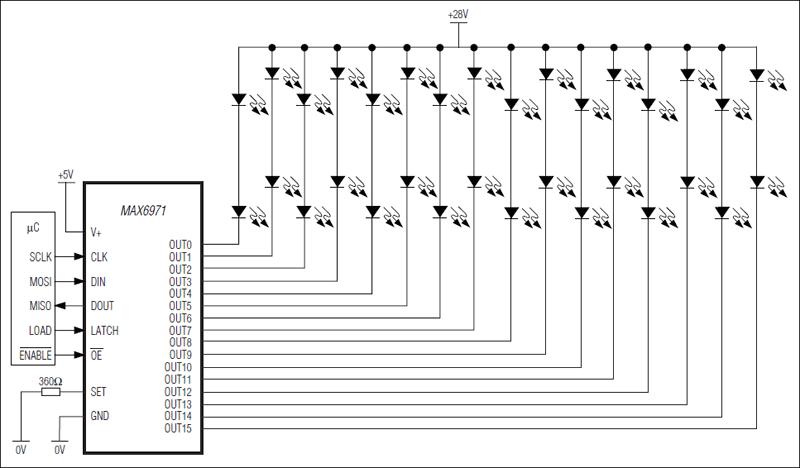

The MAX6971 uses the industry-standard, shift-register-plus-latch-type serial interface. The driver accepts data shifted into a 16-bit shift register using data input DIN and clock input CLK. Input data appears at the DOUT output 16 clock cycles later to allow cascading of multiple MAX6971s. The latch-enable input, LE, loads the 16 bits of shift register data into a 16-bit output latch to set which LEDs are on and which are off. The active-low output-enable, OE, gates all 16 outputs on and off, and is fast enough to be used as a PWM input for LED intensity control.
For applications requiring LED fault detection, refer to the MAX6983, which automatically detects open-circuit LEDs.
For safety-related applications requiring a watchdog timer, refer to the MAX6983, which includes a fail-safe feature that blanks the display if the serial interface becomes inactive for more than 1s.
The MAX6971 is one of a family of 12 shift-register-plus-latch-type LED drivers. The family includes 8-port and 16-port types, with 5.5V- or 36V-rated LED outputs, with and without open-circuit LED detection and watchdog. All versions operate from a 3V to 5.5V supply, and are specified over the -40°C to +125°C temperature range.
Applications
- Architectural Lighting
- Gaming Features
- Marquee Displays
- Point-of-Order Signs
- Traffic Signs
- Variable Message Signs
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
