MAX653

5V/3.3V/3V Adjustable, High-Efficiency, Low-IQ, Step-Down DC-DC Converters

Show More showmore-icon

Low Supply Current, High-Efficiency Over Wide Load Range

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.4)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $2.13
Features
  • High Efficiency for a Wide Range of Load Currents
  • 10µA Quiescent Current
  • Output Currents Up to 225mA
  • Preset or Adjustable Output Voltage:
    • 5.0V (MAX639)
    • 3.3V (MAX640)
    • 3.0V (MAX653)
  • Low-Battery Detection Comparator
  • Current-Limiting PFM Control Scheme
Additional Details
show more Icon

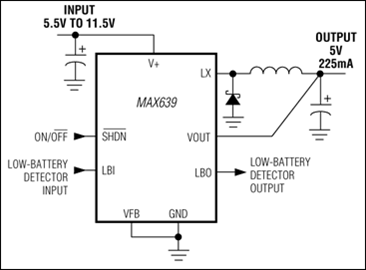

The MAX639/MAX640/MAX653 step-down switching regulators provide high efficiency over a wide range of load currents, delivering up to 225mA. A current-limiting pulse-frequency-modulated (PFM) control scheme gives the devices the benefits of pulse-width-modulated (PWM) converters (high efficiency at heavy loads), while using only 10µA of supply current (vs. 2mA to 10mA for PWM converters). The result is high efficiency over a wide range of loads.

The MAX639/MAX640/MAX653 input range is 4V to 11.5V, and the devices provide lower preset output voltages of 5V, 3.3V, and 3V, respectively. Or, the output can be user-adjusted to any voltage from 1.3V to the input voltage.

The MAX639/MAX640/MAX653 have an internal 1A power MOSFET switch, making them ideal for minimum-component, low- and medium-power applications. For increased output drive capability, use the MAX649/MAX651/MAX652 step-down controllers, which drive an external P-channel FET to deliver up to 5W.

Applications

  • 5V to 3.3V Conversion
  • 9V Battery to 5V, 3.3V, or 3V Conversion
  • High-Efficiency Linear Regulator Replacement
  • Portable Instruments and Handy-Terminals
Show More Arrow image
file View Data Sheet (Rev.4)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $2.13
