MAX5934
Positive High-Voltage, Hot-Swap Controllers with Selectable Fault Management and Status Polarity
Top
Overview
Features and Benefits
- Provides Safe Hot Swap for +9V to +80V Power Supplies (MAX5934A)
- Safe Board Insertion and Removal from a Live Backplane
- Pin-Selectable Active-Low or Active-High Power-Good Output
- Pin-Selectable Latched or Autoretry Fault Management
- Programmable Foldback Current Limiting
- High-Side Drive for an External n-Channel MOSFET
- Built-In Thermal Shutdown
- Undervoltage Lockout (UVLO)
- Pin-Selectable Duty-Cycle Options (0.94%, 1.88%, 3.75%)

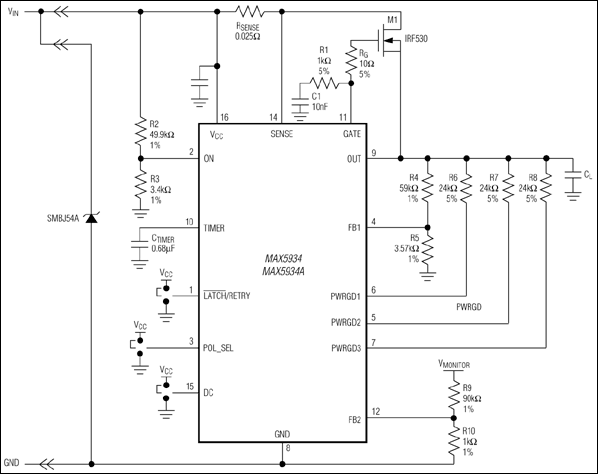

Product Details
The MAX5934/MAX5934A are fully integrated hot-swap controllers for +9V to +80V (MAX5934A) positive supply rails. The MAX5934 is optimized for +33V to +80V power-supply rails. These devices allow for the safe insertion and removal of circuit cards into a live backplane without causing glitches on the backplane power-supply rail. The MAX5934/MAX5934A feature a programmable analog foldback current limit, programmable undervoltage lockout, and programmable output- voltage slew rate through an external n-channel MOSFET. In addition, if these devices remain in current limit for more than a programmable time, the external n-channel MOSFET latches off.
The MAX5934/MAX5934A feature pin-selectable PWRGD_ assertion polarity (active low or active high) and pin-selectable fault management (latched or autoretry). Other features include automatic restart after a circuit-breaker fault, selectable duty-cycle (DC) options, and thermal-shutdown mode for overtemperature protection.
The MAX5934/MAX5934A operate in the extended (-40°C to +85°C) temperature range and are available in a 16-pin QSOP package.
Applications
- 24V/48V Industrial/Alarm Systems
- Electronic Circuit Breakers
- Hot Board Insertion
- Industrial High-Side Switch/Circuit Breakers
- Network Routers and Switches
