MAX5913

Obsolete

+48V Quad Hot-Swap Controllers For Power-Over-LAN

Data Sheet (Rev. 2) Product Selection Table
Viewing:

Overview

  • Wide Operating Input Voltage Range +35V to +72V
  • IEEE 802.3AF Compatible
  • Four Independent Power Switch Controllers
  • Open-Circuit Detector
  • On-Board Charge Pumps to Drive External N-Channel FETs
  • Current Sense with External Resistor
  • Foldback Current Limiting
  • +32V Input Undervoltage Lockout
  • On-Chip +12V, 100mA Voltage Relay Drivers

    • Applications

    • IP Phone Switches/Routers
    • Mid-Span Power-Over-MDI
    • Network Routers and Switches
    • Power-Over-LAN
    • Power-Over-MDI
    • Telecom Line Cards
    MAX5913
    +48V Quad Hot-Swap Controllers For Power-Over-LAN

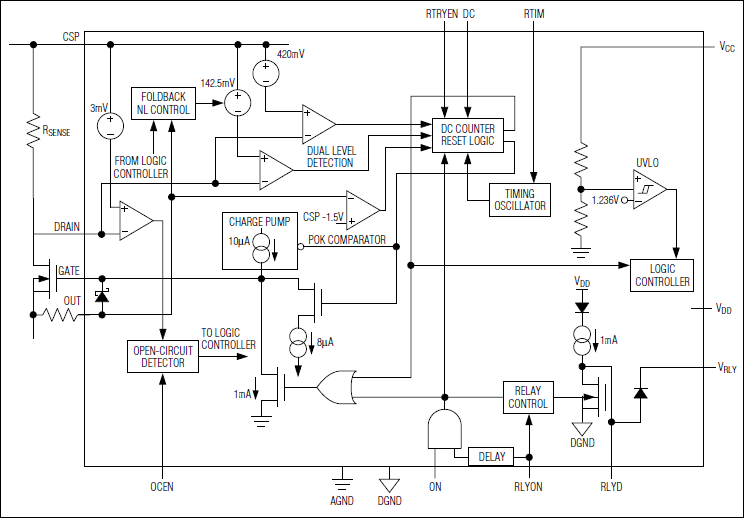

    MAX5913, MAX5914: Functional Diagram
