MAX4885AE
PRODUCTIONHigh-Bandwidth, VGA 2:1 Switch with ±15kV ESD Protection
Allows for a Signal From One Video Source to Be Switched into Two Video Sinks with Increased Bandwidth and ESD Protection
- Part Models
- 2
- 1ku List Price
- Starting From $2.01
Part Details
- Low 5Ω (typ) On-Resistance (R, G, B Signals)
- Low 5.5pF (typ) On-Capacitance (R, G, B Signals)
- Independent, Selectable Logic Inputs for Switching
- Similar Pin Configuration to MAX4885
- Ultra-Small, 28-Pin (4mm x 4mm) TQFN Package
- ±15kV ESD Human Body Model (HBM)

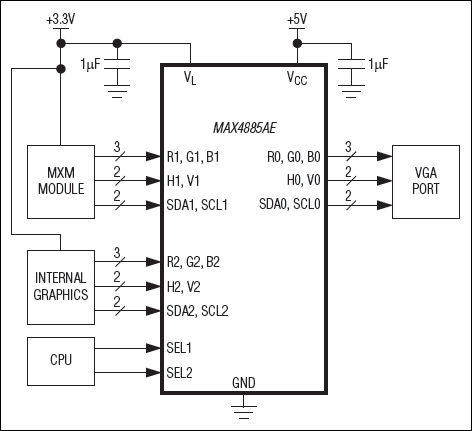

The MAX4885AE integrates high-bandwidth analog switches, level-translating buffers, and level-translating FET switches to implement a complete 2:1 multiplexer for VGA signals. The device provides three very high-frequency 900MHz (typ) SPDT switches for RGB signals, two low-frequency clamping switches for the DDC signals, a pair of level-translating buffers for the H and V signals and integrated extended ESD protection.
Horizontal and vertical synchronization (H_/V_) inputs feature level-shifting buffers to support low-voltage controllers and standard 5V-TTL-compatible monitors, meeting the VESA requirement. Display Data Channel (DDC), consisting of SDA_ and SCL_, are FET switches that protect the low-voltage VGA source from potential damage from high-voltage presence on the monitor while reducing capacitive load.
All seven output terminals of the MAX4885AE feature high-ESD protection to ±15kV Human Body Model (HBM) (see the Pin Description in the full data sheet). All other pins are protected to ±2kV Human Body Model (HBM).
The MAX4885AE is specified over the extended -40°C to +85°C temperature range, and is available in a space-saving, 28-pin, 4mm × 4mm TQFN package.
Applications
- KVM for Servers
- Notebook Computers—MXM/Switchable Graphics
Documentation
Data Sheet 1
Reliability Data 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX4885AEETI+ | Thin Quad Flatpack, No Leads | ||
| MAX4885AEETI+T | Thin Quad Flatpack, No Leads |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
| No Match Found | ||
|
Jun 20, 2016 - 1612 ASSEMBLY |
||
| MAX4885AEETI+ | PRODUCTION | |
| MAX4885AEETI+T | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
Evaluation Kits
Evaluation Kit for the MAX4885AE
