Overview

Features and Benefits

  • Low RON
    • 0.6Ω (3V Supply)
    • 1.5Ω (1.8V Supply)
  • 0.1Ω max RON Flatness (3V Supply)
  • Single-Supply Operation Down to 1.6V
  • Available in TQFN, µDFN and µMAX Packages
  • 1.8V CMOS Logic Compatible (3V Supply)
  • Fast Switching: tON = 25ns, tOFF = 20ns

Product Details

The MAX4736 is a low on-resistance, low-voltage, dual single-pole/double throw (SPDT) analog switch that operates from a single 1.6V to 4.2V supply. This device has fast switching speeds (tON = 25ns, tOFF = 20ns max), handles rail-to-rail analog signals, and consumes less than 4µW of quiescent power. The MAX4736 has break-before-make switching.

When powered from a 3V supply, the MAX4736 features low 0.6Ω on-resistance (RON), with 0.1Ω RON matching and 0.05Ω RON flatness. The digital logic input is 1.8V CMOS compatible when using a single 3V supply.

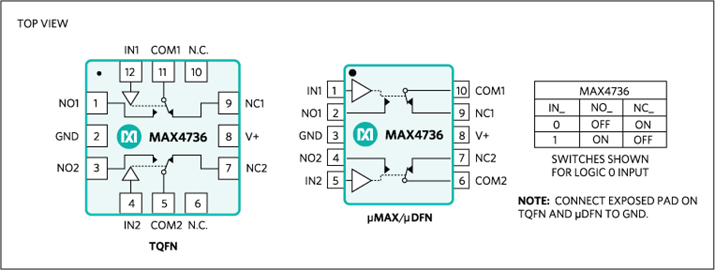

The MAX4736 has one normally open (NO) switch and one normally closed (NC) switch, and is available in 12-pin TQFN-EP (3mm x 3mm), QFN-EP (3mm x 3mm), 10-pin µMAX and 10 pin µDFN (2mm x 2mm) packages.

Applications

  • Audio/Video Signal Routing
  • Battery-Powered Applications
  • Cell Phones
  • Communication Systems
  • Hard Drives
  • Low-Voltage Data-Acquisition Systems
  • Modems
  • PCMCIA Cards
  • Power Routing
