Overview

Features and Benefits

  • Low RON
    • 0.8Ω max (+3V Supply)
    • 2.5Ω max (+1.8V Supply)
  • 0.18Ω max RON Flatness (+3V Supply)
  • +1.6V to +3.6V Single-Supply Operation
  • Available in 6-Pin µDFN (1.5mm x 1mm) and SC70 Packages
  • Fast Switching: tON = 18ns max, tOFF = 12ns max
  • 1.8V CMOS Logic Compatible (+3V Supply)
  • Pin Compatible with MAX4599
  • Guaranteed Break-Before-Make

Product Details

The MAX4714 is a low on-resistance, low-voltage single-pole/double-throw (SPDT) analog switch that operates from a single +1.6V to +3.6V supply. The MAX4714 has break-before-make switching. This device also has fast switching speeds (tON = 18ns max, tOFF = 12ns max).

When powered from a +3V supply, the MAX4714 features 0.8Ω max on-resistance (RON), with 0.18Ω max RON matching and flatness. The digital logic input is 1.8V CMOS compatible when using a single +3V supply.

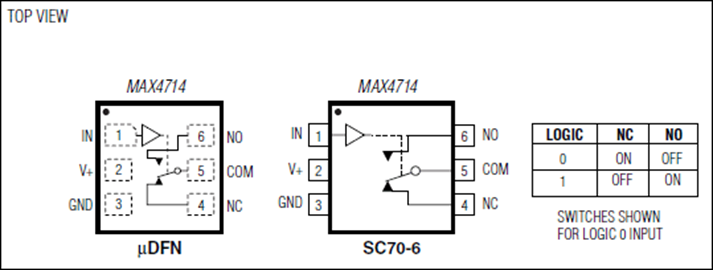

The MAX4714 is pin compatible with the MAX4599 and is available in a 6-pin SC70 or µDFN package.

Applications

  • Audio/Video Signal Routing
  • Battery-Operated Equipment
  • Cell Phones
  • Communications Circuits
  • Hard Drives
  • Low-Voltage Data-Acquisition Systems
  • Modems
  • PCMCIA Cards
  • Power Routing
