Features and Benefits

  • 12-Bump, 0.5mm-Pitch UCSP
  • NC Switch RON
    • 0.5Ω max (+2.7V Supply) (MAX4684)
    • 0.8Ω max (+2.7V Supply) (MAX4685)
  • NO Switch RON
    • 0.8Ω max (+2.7V Supply)
  • RON Match Between Channels
    • 0.06Ω (max)
  • RON Flatness Over Signal Range
    • 0.15Ω (max)
  • +1.8V to +5.5V Single-Supply Operation
  • Rail-to-Rail Signal Handling
  • 1.8V Logic Compatibility
  • Low Crosstalk: -68dB (100kHz)
  • High Off-Isolation: -64dB (100kHz)
  • THD: 0.03%
  • 50nA (max) Supply Current
  • Low Leakage Currents
    • 1nA (max) at TA = +25°C

Product Details

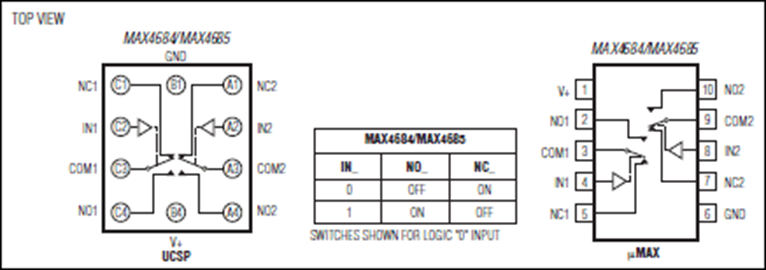

The MAX4684/MAX4685 low on-resistance (RON), low-voltage, dual single-pole/double-throw (SPDT) analog switches operate from a single +1.8V to +5.5V supply. The MAX4684 features a 0.5Ω (max) RON for its NC switch and a 0.8Ω (max) RON for its NO switch at a +2.7V supply. The MAX4685 features a 0.8Ω max on-resistance for both NO and NC switches at a +2.7V supply.

Both parts feature break-before-make switching action (2ns) with tON = 50ns and tOFF = 40ns at +3V. The digital logic inputs are 1.8V logic-compatible with a +2.7V to +3.3V supply.

The MAX4684/MAX4685 are packaged in the chipscale package (UCSP™), significantly reducing the required PC board area. The chip occupies only a 2.0mm x 1.50mm area. The 4 x 3 array of solder bumps are spaced with a 0.5mm bump pitch.


  • Audio/Video Signal Routing
  • Battery-Operated Equipment
  • Cell Phones
  • Communications Circuits
  • Modems
  • MP3 Players
  • PCMCIA Cards
  • Power Routing
  • Relay Replacement
  • Speaker-Headset Switching
