MAX4589
Low-Voltage, High-Isolation, Dual 2-Channel RF Video Multiplexer
Show More
Not the part you were looking for?
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Search
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page
Features
- Low Insertion Loss: < -2.5dB up to 100MHz
- High Off-Isolation: -74dB at 10MHz
- Low Crosstalk: < -70dB up to 10MHz
- 20MHz -0.1dB Signal Bandwidth
- 200MHz -3dB Signal Bandwidth
- 60Ω (max) On-Resistance with ±5V Supplies
- 4Ω (max) On-Resistance Matching with ±5V Supplies
- 2Ω (max) On-Resistance Flatness with ±5V Supplies
- +2.7V to +12V Single-Supply Operation
- ±2.7V to ±6V Dual-Supply Operation
- Low Power Consumption: < 20µW
- Rail-to-Rail, Bidirectional Signal Handling
- Parallel or SPI/QSPI/MICROWIRE-Compatible Serial Interface
- > ±2kV ESD Protection per Method 3015.7
- TTL/CMOS-Compatible Inputs with VL = +5V
.svg?rev=fd385c90e2cf4716ae9a8c8d20e6b8e3&la=en&h=24&w=24&hash=A302DF48F94BAAA11877AF223F27157A){kind=icon}

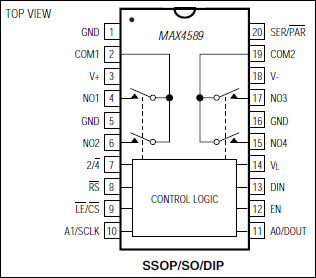

The MAX4589 low-voltage, dual 2-channel multiplexer is designed for RF and video signal processing at frequencies up to 200MHz in 50Ω and 75Ω systems. On-chip functions are controlled through either a parallel interface or an SPI™/QSPI™/MICROWIRE™ serial interface.
Each channel of the MAX4589 is designed using a "T" switch configuration, ensuring excellent high-frequency off-isolation. The MAX4589 has low on-resistance of 60Ω max, with an on-resistance match across all channels of 4Ω max. Additionally, on-resistance is flat across the specified signal range (2Ω max). The off-leakage current is under 1nA at TA = +25°C, and less than 10nA at TA = +85°C.
The MAX4589 operates from single +2.7V to +12V or dual ±2.7V to ±6V supplies. When operating with a positive supply of +5V, the inputs maintain TTL/CMOS- level compatibility. The MAX4589 is available in 20-pin DIP, wide SO, and SSOP packages.
Applications
- Automated Test Equipment (ATE)
- High-Speed Data Acquisition
- Networking
- RF Switching
- Video Signal Routing
