Features and Benefits
- +2.7V to +5.5V Single-Supply Operation
- SPST and SPDT Switches
- 65Ω (max) RON with +5V Supply
- Audio Performance
- -83dB Off-Isolation at 20kHz
- -84dB Crosstalk at 20kHz
- Video Performance
- -48dB Off-Isolation at 10MHz
- -60dB Crosstalk at 10MHz
- Serial Interface
- 2-Wire I2C Compatible (MAX4584)
- 3-Wire SPI/QSPI/MICROWIRE Compatible (MAX4585)
The MAX4584/MAX4585 serial-interface, programmable switches are ideal for multimedia applications. Each device contains one normally open (NO) single-pole/single-throw (SPST) switch and one single-pole/double-throw (SPDT) switch. The MAX4584/MAX4585 feature 65Ω on-resistance, 4Ω on-resistance matching between channels, and 5Ω on-resistance flatness. Additionally, they have off-isolation of -83dB at 20kHz and -48dB at 10MHz, with crosstalk of -84dB at 20kHz and -60dB at 10MHz.

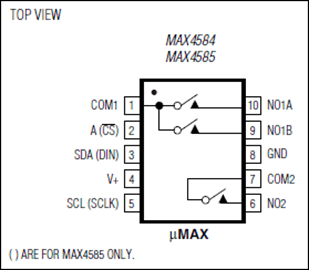

The MAX4584 uses a 2-wire I2C-compatible serial interface; the MAX4585 uses a 3-wire SPI™/QSPI™/MICROWIRE™-compatible interface. Both devices are available in a 10-pin µMAX® package and are specified for the extended-industrial (-40°C to +85°C) temperature range.
- Cellular Phones and Accessories
- High-End Audio Equipment
- Industrial Equipment
- PC Multimedia Audio/Video Routing
- Private Mobile Radios (PMRs)
- Set-Top Boxes
- Video Conferencing
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
