MAX3987

8.5Gbps Quad Equalizer and Preemphasis Driver

Show More showmore-icon

Best-in-Class Redriver Can Equalize 25in to 30in of FR4

alert : Obsolete tooltip
alert : Obsolete tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 2
1ku List Price
price unavailable
Features
  • Up to 8.5 NRZ Data Speed
  • Receive Equalization Up to 30in FR4
  • Preemphasis Drive Up to 30in FR4
  • Global and Individual Programming of Preemphasis, Output Drive Levels, Polarity Inversion, and Offset Cancellation
  • Signal Detect and Internal Output Squelch
  • Compliant with SAS-2 and SATA Revision 3 OOB
  • Coding Independent, 8B/10B, 64B/66B, Scrambled, and Others
  • Differential CML Data-Output Drive
  • I²C Serial Interface and Pin Programmable
  • Software Power-Down of Unused Outputs
  • 0.5W Typical Power Dissipation for Drive Level 1 at VCC = 2.5V
  • High-Performance, Lead-Free, 7mm x 7mm, 48-Pin TQFN Package
Additional Details
show more Icon

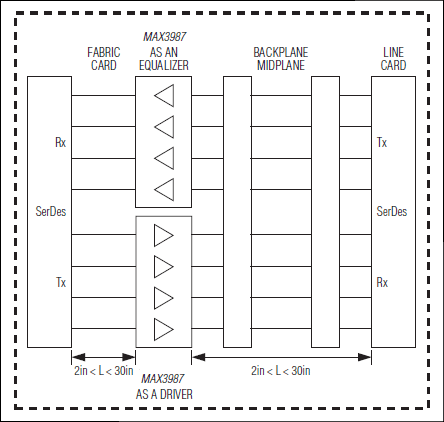

The MAX3987 is a 4-channel receive and transmit equalizer (EQ). It compensates for transmission medium losses encountered with FR4 stripline/microstrip and/or high-speed cable. The device can be used at the beginning, middle, or end of a channel. The input equalization requires no setting, and the output preemphasis (PE) is programmable.

For each channel, the preemphasis level, output drive level, output polarity, and powering down of unused outputs are programmable through an I²C serial interface. It can also be configured globally through pins.

The device operates from a 2.5V or 3.3V supply, and is packaged in a 7mm x 7mm, 48-pin TQFN.

Applications

  • FR4 and Cable Equalization
  • PCIe® Compatible
  • Preemphasis and Receive Equalization
  • Redrive
  • XAUI and XAUI2, Fibre Channel, Interlaken, InfiniBandTM/SM, SAS-2 and SATA Revision 3 OOB
Show More Arrow image
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 2
1ku List Price
price unavailable
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX3987

Documentation

2
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Reliability Data
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 05/08/2012
English

MAX3987: 8.5Gbps Quad Equalizer and Preemphasis Driver Data Sheet (Rev.2)

Open PDF File

redirect
2.00M
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 01/12/2023
English
MAX3987 Reliability Data redirect icon

157.64K

download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX3987ETM+ 48-TQFN-7X7X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX3987ETM+T 48-TQFN-7X7X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 14, 2023

- 2275A

WAFER FAB

MAX3987ETM+

LAST TIME BUY

pdf

pcn_2275a

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Aug 14, 2023

- 2275A

arrow down

WAFER FAB

MAX3987ETM+

LAST TIME BUY

pdf

pcn_2275a

external-icon

Software & Part Ecosystem

Evaluation Kits 1

MAX3987EVKIT

Evaluation Kit for the MAX3987

zoom

MAX3987EVKIT

Evaluation Kit for the MAX3987

download icon

Download

 print icon

Print
MAX3987EVKIT
Evaluation Kit for the MAX3987

Features and Benefits

  • SMA Connectors for Inputs and Outputs
  • Controlled Impedance and Matched Length Input and Output Signal Traces
  • Software- or Hardware-Controlled Operation
  • Windows Software Provides Point-and-Click Access to MAX3987 Features
  • Silkscreen Labels Identify All Signal Traces, Connectors, Jumpers, and LEDs
  • Power Through USB or External 5V Supply
Buy Now View Details

Product Detail

The MAX3987 evaluation kit (EV kit) is a fully assembled and tested PCB that demonstrates the capabilities of the MAX3987 8.5Gbps quad equalizer and preemphasis driver. The EV kit can be controlled using a PC to run the evaluation software or using DIP switches mounted on the EV kit to bias hardware pins. The included software is Windows® compatible and provides a simple graphical user interface (GUI) to configure all available device features. The software communicates with the EV kit through a USB port and provides three methods for configuration. The primary method is a simple point-and-click interface. The other debug interfaces allow direct register read/write operations, or software-controlled external pin programming. The data I/O traces on the EV kit are controlled impedance with matched lengths. All external connections are AC-coupled with standard SMA connectors for easy connection to test equipment.

Applications

  • FR4 and Cable Equalization
  • PCIe® Compatible
  • Preemphasis and Receive Equalization
  • Redrive
  • XAUI and XAUI2, Fibre Channel, Interlaken, InfiniBandTM/SM, SAS-2 and SATA Revision 3 OOB
