MAX3812

Multirate SMPTE SD/HD Cable Driver with Selectable Slew Rate

Viewing:

Overview

SMPTE 292M, SMPTE 344M, SMPTE 259M, and DVB-ASI Compliant
106mW Power Consumption Using a +3.3V Power Supply
Smooth Rise/Fall Transitions for Low EMI
Selectable Slew Rate for HD and SD Rates
Pin Compatible with Gennum GS1528
Dual Coaxial Cable Driving Outputs
Adjustable Output Voltage Swing
Input Compatibility with Differential Swings of CML, LVPECL, and LVDS
0°C to +85°C Operating Temperature Range

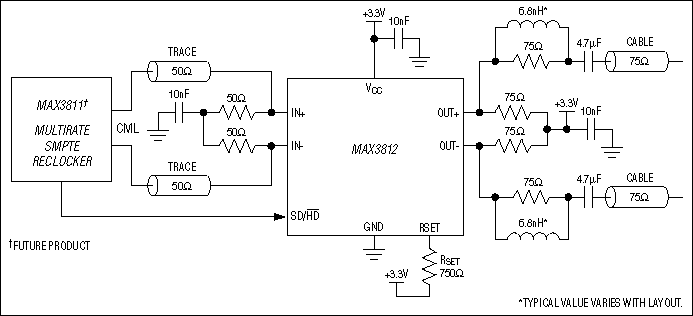

The MAX3812 is a multirate SMPTE cable driver designed to operate at data rates up to 1.485Gbps, driving one or two 75Ω coaxial cables. Two selectable slew rates are provided for compliance to SMPTE 292M, SMPTE 344M, and SMPTE 259M. The MAX3812 is pin compatible with the Gennum GS1528.

The MAX3812 inputs are internally biased and compatible with differential swings of CML, LVPECL, and LVDS. Output voltage swing is adjustable with a single external resistor.

The MAX3812 operates over a 0°C to +85°C temperature range. It typically consumes 106mW with a +3.3V power supply and is available in an 8-pin SO package.

Applications

Professional Digital Video Cameras and Recording Devices
Professional Digital Video Switchers and Routers
SMPTE 292M, SMPTE 344M, SMPTE 259M, and DVB-ASI Coaxial Cable Serial Digital Interfaces
