Overview
Features and Benefits
- VL Pin for Compatibility with Mixed-Voltage Systems
- ±15kV ESD Protection on Rx Inputs and Tx Outputs
- Low 300µA Supply Current
- Guaranteed 250kbps Data Rate
- 1µA AutoShutdown Plus™ with Receivers Active
- Meets EIA/TIA-232 Specifications Down to 3.0V
Product Details

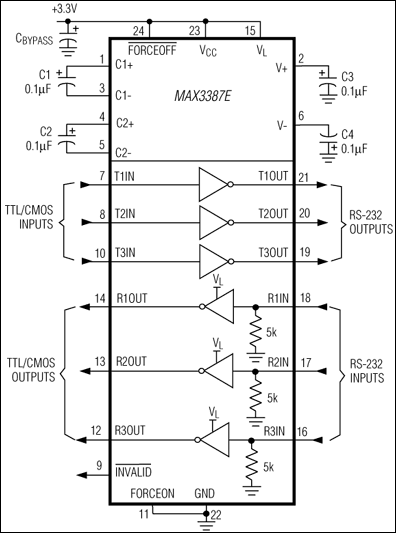

The MAX3387E 3V powered EIA/TIA-232 and V.28/V.24 is a communications interface with low power requirements, high data-rate capabilities, and enhanced electrostatic discharge (ESD) protection. The MAX3387E has three receivers and three transmitters. All RS-232 inputs and outputs are protected to ±15kV using the IEC 1000-4-2 Air-Gap Discharge method, ±8kV using the IEC 1000-4-2 Contact Discharge method, and ±15kV using the Human Body Model.
A proprietary low-dropout transmitter output stage enables true RS-232 performance from a +3.0V to +5.5V supply with a dual charge pump. The charge pump requires only four small 0.1µF capacitors for operation from a +3.3V supply. The MAX3387E is capable of running at data rates up to 250kbps while maintaining RS-232 compliant output levels.
The MAX3387E has a unique VL pin that allows interoperation in mixed-logic voltage systems. Both input and output logic levels are pin programmable through the VL pin. The MAX3387E is available in a space-saving TSSOP package.
Applications
- Battery-Powered Applications
- Cellular Data Cables
- Handheld Equipment
- PDAs and PDA Cradles
- Peripherals
- Subnotebook and Palmtop Computers
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
MAX3387E Reliability Data1/12/2023PDF170K
-
Reduce the Chances of Human Error: Part 2, Super Amps and Filters for Analog Interface3/8/2011
-
Oops...Practical ESD Protection vs. Foolhardy Placebos3/2/2011
-
Design Considerations for Data-Lump Cables11/19/2001
-
Selecting and using RS-232 Interface Parts for Your Power Supply Voltages1/1/2001
-
Analog Devices Leads the Way in ESD Protection10/3/2000
-
ESD Protection for I/O Ports3/13/2000
