MAX3355E

PRODUCTION

±15kV ESD-Protected USB On-the-Go Charge Pump and Comparators in UCSP

Data Sheet (Rev. 1) Product Selection Table

Part Models: 3
1ku List Price: Starting From $2.64

Viewing:

Overview

Guaranteed 8mA (min) V_BUS Charge-Pump Output
±15kV ESD Protection on V_BUS and ID_IN
Up to +6.0V Backdrive Capability for V_BUS
+2.6V to +5.5V Operating Voltage Range
V_L Operates Down to +1.65V
Guaranteed V_BUS Input Impedance When Not Driven
Automatic C_LOAD Detection
Comparators for Host Negotiation Protocol
ID_IN Detection
Available in 4 x 3 UCSP or 14-Pin TSSOP Package

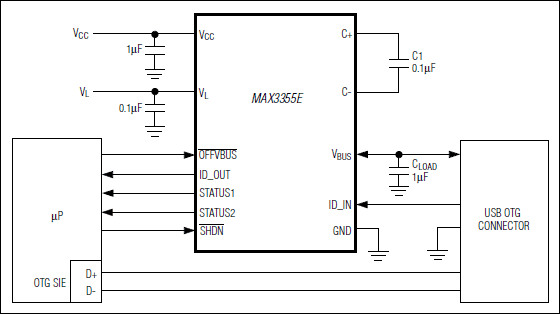

The MAX3355E integrates a charge pump and comparators to enable a system with an integrated USB On-the-Go (OTG) dual-role transceiver to function as a USB OTG dual-role device. USB OTG facilitates the direct connection of peripherals and mobile devices such as PDAs, cellular phones, MP3 players, and digital cameras to one another without a host PC.

The MAX3355E's internal charge pump supplies V_BUS power and signaling that is required by the transceiver as defined in On-the-Go Supplement to the USB 2.0 Specification, Revision 1.0. The MAX3355E features ID detection and internal comparators for monitoring V_BUS. The V_BUS status outputs are used during negotiation for the USB according to the session request protocol (SRP) and host negotiation protocol (HNP).

The MAX3355E operates with logic supply voltages (V_L) as low as 1.65V, ensuring compatibility with low-voltage ASICs. The device also features a logic-selectable 1µA shutdown mode.

The MAX3355E has built-in ±15kV ESD-protection circuitry to protect the V_BUS and ID_IN pins. The device is available in a miniature 4 x 3 chip-scale package (UCSP™), as well as a 14-pin TSSOP package, and is specified for operation over the -40°C to +85°C extended temperature range.

Applications

Cell Phones
Digital Cameras
MP3 Players
PDAs

Part Models: 3
1ku List Price: Starting From $2.64

Documentation

Data Sheet 1

MAX3355E: ±15kV ESD-Protected USB On-the-Go Charge Pump and Comparators in UCSP Data Sheet (Rev.1) 08/18/2003

Reliability Data 1

MAX3355E Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX3355EEBC+T	12-WLCSP-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX3355EEUD+	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX3355EEUD+T	Thin Shrink Small-Outline Package	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
