Overview
Features and Benefits
- High-Speed Data Line ESD Protection
- ±15kV—Human Body Model
- ±8kV—IEC 61000-4-2, Contact Discharge
- ±15kV—IEC 61000-4-2, Air-Gap Discharge
- Tiny WLP Package Available
- Low 5pF Input Capacitance
- Low 1nA (max) Leakage Current
- Low 1nA Supply Current
- +0.9V to +5.5V Supply Voltage Range
- 2-, 3-, 4-, or 6-Channel Devices Available
Product Details

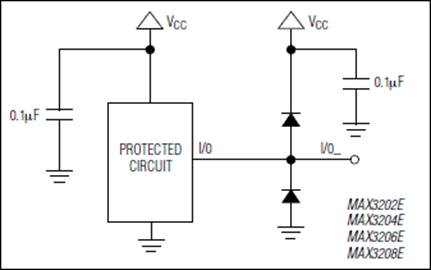

The MAX3202E/MAX3203E/MAX3204E/MAX3206E are low-capacitance ±15kV ESD-protection diode arrays designed to protect sensitive electronics attached to communication lines. Each channel consists of a pair of diodes that steer ESD current pulses to VCC or GND. The MAX3202E/MAX3203E/MAX3204E/MAX3206E protect against ESD pulses up to ±15kV Human Body Model, ±8kV Contact Discharge, and ±15kV Air-Gap Discharge, as specified in IEC 61000-4-2. These devices have a 5pF capacitance per channel, making them ideal for use on high-speed data I/O interfaces.
The MAX3202E is a two-channel device intended for USB and USB 2.0 applications. The MAX3203E is a triple-ESD structure intended for USB On-the-Go (OTG) and video applications. The MAX3204E is a quad-ESD structure designed for Ethernet and FireWire® applications, and the MAX3206E is a six-channel device designed for cell phone connectors and SVGA video connections.
All devices are available in tiny 4-bump (1.05mm x 1.05mm) WLP, 6-bump (1.05mm x 1.57mm) WLP, 9-bump (1.52mm x 1.52mm) WLP, 6-pin (3mm x 3mm) TDFN, and 12-pin (4mm x 4mm) TQFN packages and are specified for -40°C to +85°C operation.
Applications
- Cell Phones
- Ethernet
- FireWire®
- SVGA Video Connections
- Universal Serial Bus (USB)
- USB 2.0
- Video
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
