MAX3170

PRODUCTION

+3.3V, Multiprotocol, 3 Tx/3 Rx, Software-Selectable Clock/Data Transceiver

Industry's First +3.3V Multiprotocol Transceiver Intended for Use with Control Signals

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $8.29

Viewing:

Overview

Industry's First +3.3V Single-Supply Transceiver
3V/5V Logic-Compatible I/O
Certified TBR-1 and TBR-2 Compliant (NET1 and NET2)—Pending Completion
Supports V.28 (RS-232), V.11 (RS-449/V.36, EIA530, EIA530-A, X.21), and V.35 Protocols
Software-Selectable DTE/DCE
Complete DTE/DCE Port with MAX3171/MAX3173 and MAX3172/MAX3174
True Fail-Safe Receiver Operation
Available in Small 28-Pin SSOP Package
10Mbps Operation (V.11/V.35)
Requires Only Four Tiny Surface-Mount Capacitors
All Transmitter Outputs Are Fault Protected to ±15V to Survive Cable Miswiring

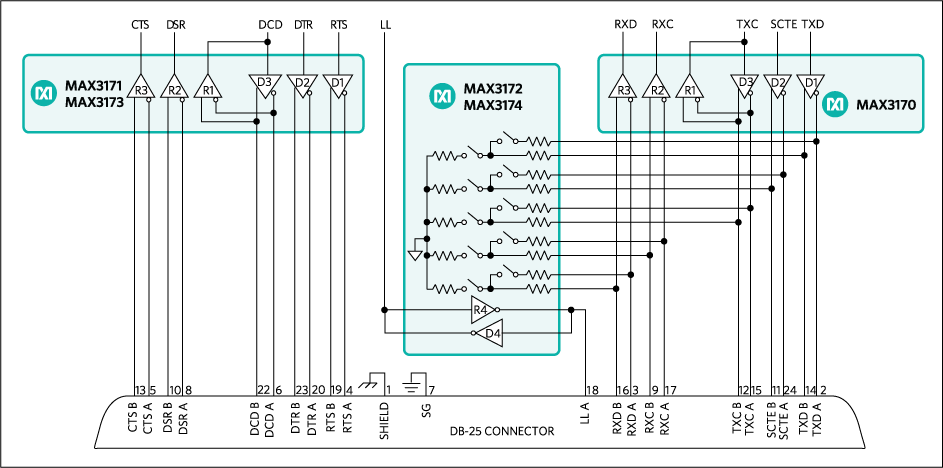

The MAX3170 is a three-driver/three-receiver multiprotocol transceiver that operates from a +3.3V single supply. The MAX3170, along with the MAX3171/MAX3173 and MAX3172/MAX3174, form a complete software-selectable data terminal equipment (DTE) or data communications equipment (DCE) interface port that supports the V.28 (RS-232), V.11 (RS-449/V.36, EIA530, EIA530-A, X.21), and V.35 protocols. The MAX3170 transceiver carries the high-speed clock and data signals, while the MAX3171 or MAX3173 carries the control signals. The MAX3170 can be terminated by the MAX3172 or MAX3174 software-selectable resistor termination network or by a discrete termination network.

An internal charge pump and proprietary low-dropout transmitter output stage allow V.11-, V.28-, and V.35-compliant operation from a +3.3V single supply. A no-cable mode is entered when all mode pins (M0, M1, and M2) are pulled high or left unconnected. In no-cable mode, supply current decreases to 1mA and all transmitter and receiver outputs are disabled (high impedance). Short-circuit limiting and thermal shutdown circuitry protect the drivers against excessive power dissipation.

Applications

CSUs/DSUs
Data Networking PCI Cards
Data Routers

Part Models: 2
1ku List Price: Starting From $8.29

Documentation

Data Sheet 1

MAX3170: +3.3V, Multiprotocol, 3 Tx/3 Rx, Software-Selectable Clock/Data Transceiver Data Sheet (Rev.0) 08/07/2000

Reliability Data 1

MAX3170 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX3170CAI+	28-SSOP-5.3_MM	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX3170CAI+T	28-SSOP-5.3_MM	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Interface Transceivers & Isolators 2
MAX3172	PRODUCTION	+3.3V Multiprotocol Software-Selectable Cable Terminators and Transceivers
MAX3174	PRODUCTION	+3.3V Multiprotocol Software-Selectable Cable Terminators and Transceivers

Evaluation Kits

Evaluation Kit for the MAX3170, MAX3171, MAX3172

Buy Now View Details

Features and Benefits

Industry’s First Single +3.3V Supply Multiprotocol Chipset
Industry’s First Multiprotocol Chipset with True Failsafe Receivers
Programmable Transceiver Supports
- V.28 (RS-232)
- V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21)
- V.35
Certified TBR-1 and TBR-2 Compliant
Certified NET1 and NET2 Compliant
Programmable Cable Termination (MAX3172)
Receiver Control Line Deglitching
Fully Assembled and Tested

Product Details

The MAX3170 evaluation kit (EV kit) combines Maxim’s multiprotocol clock/data transceiver (MAX3170), control transceiver (MAX3171), and cable terminator (MAX3172) chips. This chipset forms a complete software-selectable data terminal equipment (DTE) or data communications equipment (DCE) interface port.

The MAX3170, MAX3171, and MAX3172 chipset supports V.28 (RS-232), V.11 (RS-449/V.36, EIA-530, EIA-530A, X.21), and V.35 protocols. Compliance for NET1, NET2, TBR-1, and TBR-2 has been certified by TUV Telecom Services, Inc. Internal charge pumps allow this kit to operate from a single +3.3V supply.

The MAX3170 EV kit was designed to take advantage of the chipset’s flow-through pinout. This kit includes a 40-pin header (logic signals), a female DB25 connector (protocol signals), three SMA connectors (high-speed logic signals), and scope probe connectors for measuring the high-speed data signals (logic and protocol signals).
