Data Sheet Rev. 0

Overview

Features and Benefits

  • High-Performance, Low-Power, 16-Bit RISC Core
  • Internal 12MHz Oscillator Requires No External Components
  • Two-Channel, 10-Bit 93.75ksps ADC
  • I²C Slave Peripheral
    • 400kHz Operating Frequency
    • Flash Bootloader Function
    • Wakeup from Ultra-Low Power Stop Mode on I²C Address Match
  • 16-Bit PWM Timer Output
  • Wake-Up Timer
  • SHA-3 KMAC Secure Authentication with RNG
  • 1.71V to 3.63V Operating Voltage
  • 16-Bit Instruction Word, 16-Bit Data Bus
  • Memory Features
    • 16KB Flash Memory
    • 2KB Data SRAM
  • -40°C to +85°C Operating Temperature
  • Low Power Consumption
    • 0.2µA (typ), 2.0µA (max) in Stop Mode, TA = +25°C, Power-Fail Monitor Disabled
    • 2.7mA (typ) at 12MHz in Active Mode
  • 1.7mm x 1.8mm x 0.5mm 12-Bump WLP Package

Product Details

The MAX28200 is a low-power, 16-bit MAXQ® microcontroller (µC) designed for low-power applications, including smart phones and consumer electronics. The device combines a powerful 16-bit RISC microcontroller with a 10-bit, 93.75ksps ADC along with an I²C communications port. The device includes four GPIO pins. The device includes 16KB of flash memory and 2KB of data SRAM. Additional utility ROM space includes macros such as an I²C bootloader to enable flash memory firmware updates in the field. The device provides NIST SP 800-185 compliant secure hash algorithm (SHA-3) KMAC challenge and response authentication and can be paired with other SHA-3 devices.

For the ultimate in low-power battery-operated performance, the device includes an ultra-low-power stop mode. In this mode, the minimum amount of circuitry is powered. The device wakes up on a matching I²C address. Wake-up sources also include external interrupts, the power-fail warning, and a wake-up timer interrupts. The microcontroller runs from a wide 1.71V to 3.63V operating voltage.

Applications

  • Consumer Electronics
  • Smartphones

Product Categories

Comparable Parts Click to see all in Parametric Search

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

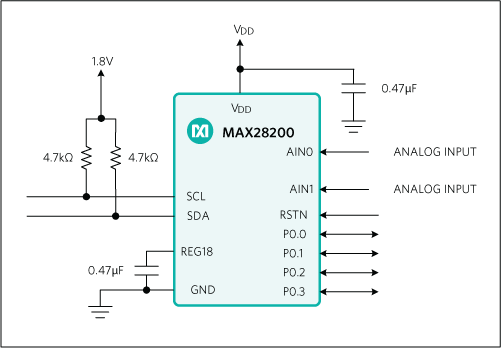

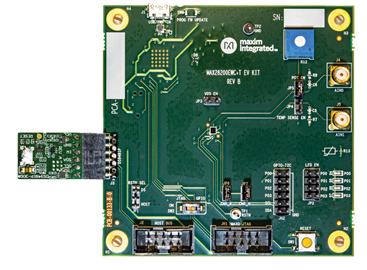

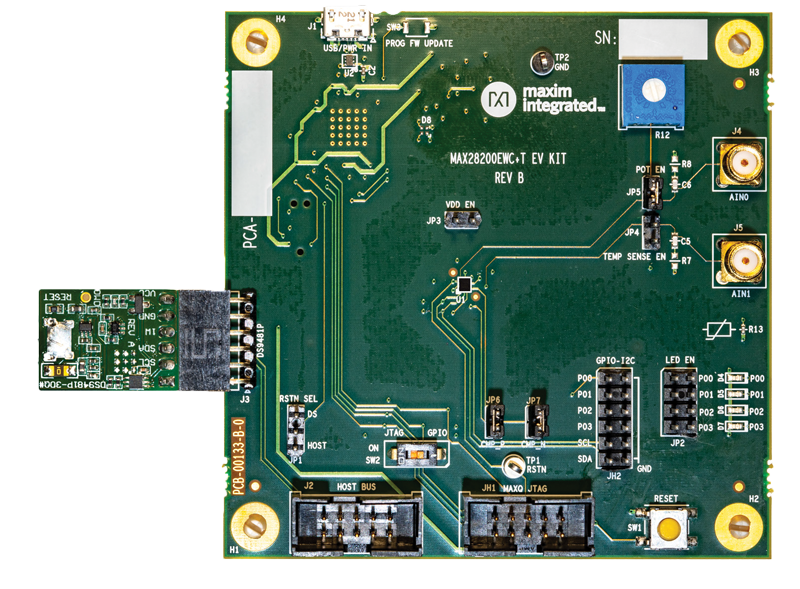

Evaluation Kits (1)
