Features and Benefits

  • High Integration
    • Synchronous Boost Provides Positive Output at upto 10.5V/200mA (+12V for MAX25520ATEC)
    • Inverter Output Provides up to -10.5V/-200mA (-12V for MAX25520ATEC)
  • Low EMI
    • 420kHz/2.1MHz Switching Frequency
    • Spread Spectrum
  • UV Diagnostics on All Outputs
  • Versatile
    • Complete Sequencing Flexibility
    • Compact TQFN Package
    • -40°C to +125°C Operating Temperature Range
  • AEC-Q100 Grade 1
  • Product Details

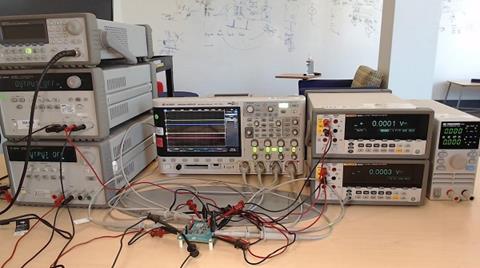

    The MAX25520 is a dual-output power IC that provides symmetrical or asymmetrical positive and negative voltages up to 10.5V and down to -10.5V (±12V for MAX25520ATEC) with an input voltage between 2.65V and 5.5V. It incorporates a fully integrated current-mode boost converter and a current-mode inverter with external rectifier. The device operates at one of two switching frequencies, 420kHz or 2.1MHz. Operation at 2.1MHz permits very compact dual-output power supplies.

    The two output voltages can be programmed independently or can be made to track each other. Independent enable pins allow complete flexibility in powering the outputs up and down.

    The outputs are protected against overcurrent and under-voltage.

    The MAX25520 is available in a compact 3mm x 3mm TQFN package and operates over the -40°C to +125°C automotive temperature range.


    • Central Information Displays
    • Infotainment Displays
    • Instrument Clusters

    Product Lifecycle icon-recommended Production

    At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
