MAX25432

Automotive, 100W, USB PD, PPS, Buck-Boost Port Controller and Protector

Show More showmore-icon

Industry's First Single-IC, 100W, Automotive USB-PD PPS Power, Charger and Protector

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.1)
Open Interactive Page external-link
Documentation View All Documentation
Part Models 8
1ku List Price Starting From $6.43
Features
  • Integrated I2C Buck-Boost Controller with PPS
    • 4.5V to 36V Input Operating Range
    • 3.3V to 21V Constant Voltage, 10mV LSB
    • 1A to 6.35A Current Limit, 25mA LSB
    • 220kHz, 300kHz, and 400kHz SwitchingFrequency
    • VBUS Cable Compensation up to 516mΩ
    • External Frequency Synchronization and SpreadSpectrum for Reduced EMI
  • USB PD 3.1 Type-C Port Controller
    • USB-IF Compliant - TID 9154
    • Up to 800mV Ground Offset
    • Pairs with ADI TCPM for Turn-Key Solution
  • MAX25432BATLP Enables:
    • ADI TCPM Alternate Mode and Dual-Role Port
    • Improved CC Detection
    • Advanced Monitoring Algorithms (V, T)
    • Dynamic Loop Control
  • Highest Performance, Safest, and Lowest Cost Passenger Cable-Shield Short-to-Battery Protection
    • Minimizes Short-Circuit Currents with a Small,Single-FET Solution
  • Integrated Current-Sense Amplifiers, ADC and DAC
    • Integrated 3.3V to 5.0V, 1.5W, Smart, Reliable VCONN Switches and Protection, 50mA to 500mA OCP
  • Integrated 24V DC Protection on Protected HVD+, HVD-, HVCC1, HVCC2 Outputs
  • Integrated Legacy USB 2.0 Charging Support Including BC1.2, Apple CarPlay, OTG, and Apple MFi Rev 3x
  • Integrated ±15kV Air-Gap/±8kV Contact Discharge ISO 10605 and IEC 61000-4-2 ESD Protection
  • -40°C to +125°C Operating Temperature Range

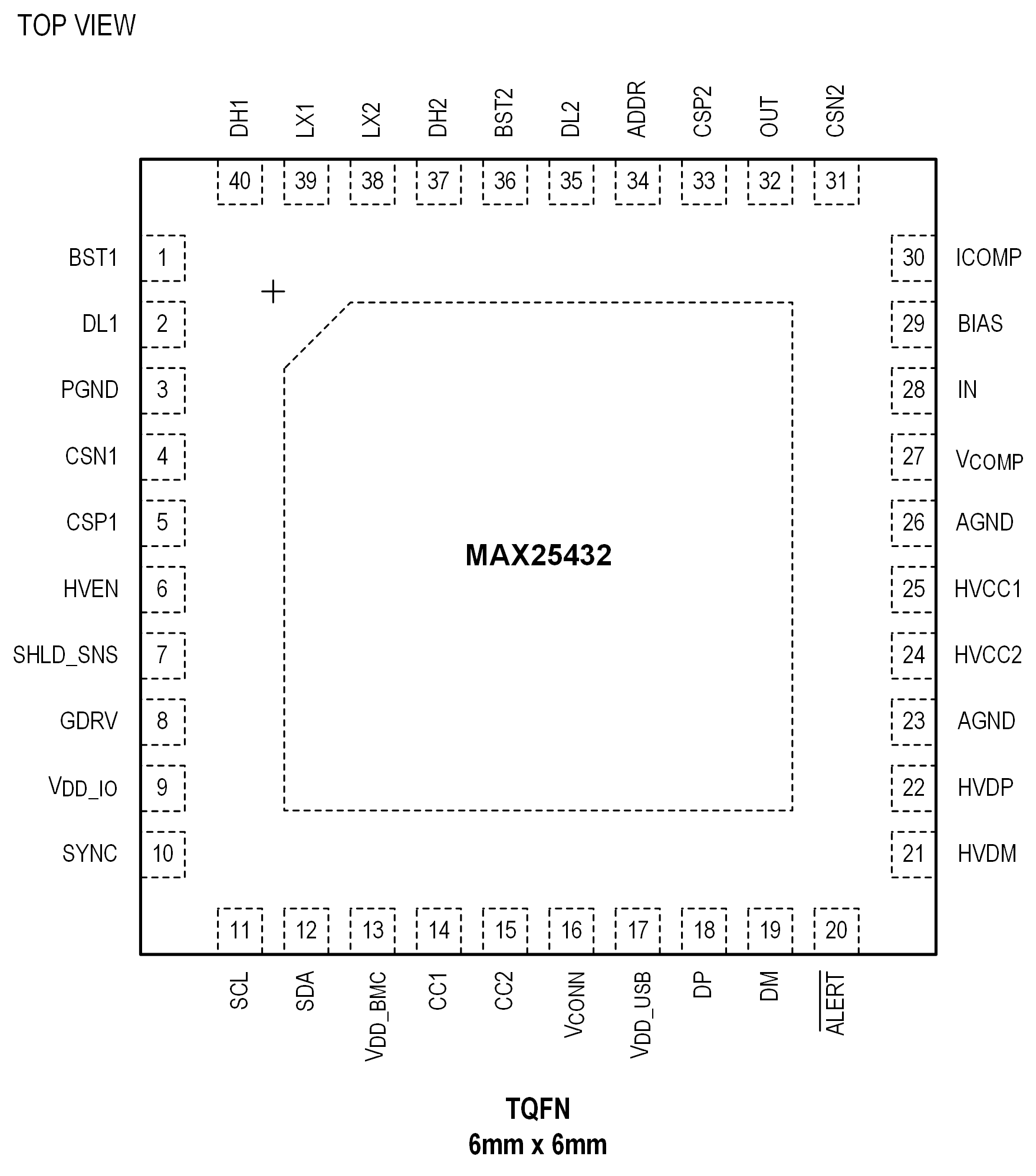

  • 40-Pin, 6mm x 6mm, TQFN Package with EP
  • AEC-Q100 and AEC-Q006 Qualified
Additional Details
show more Icon

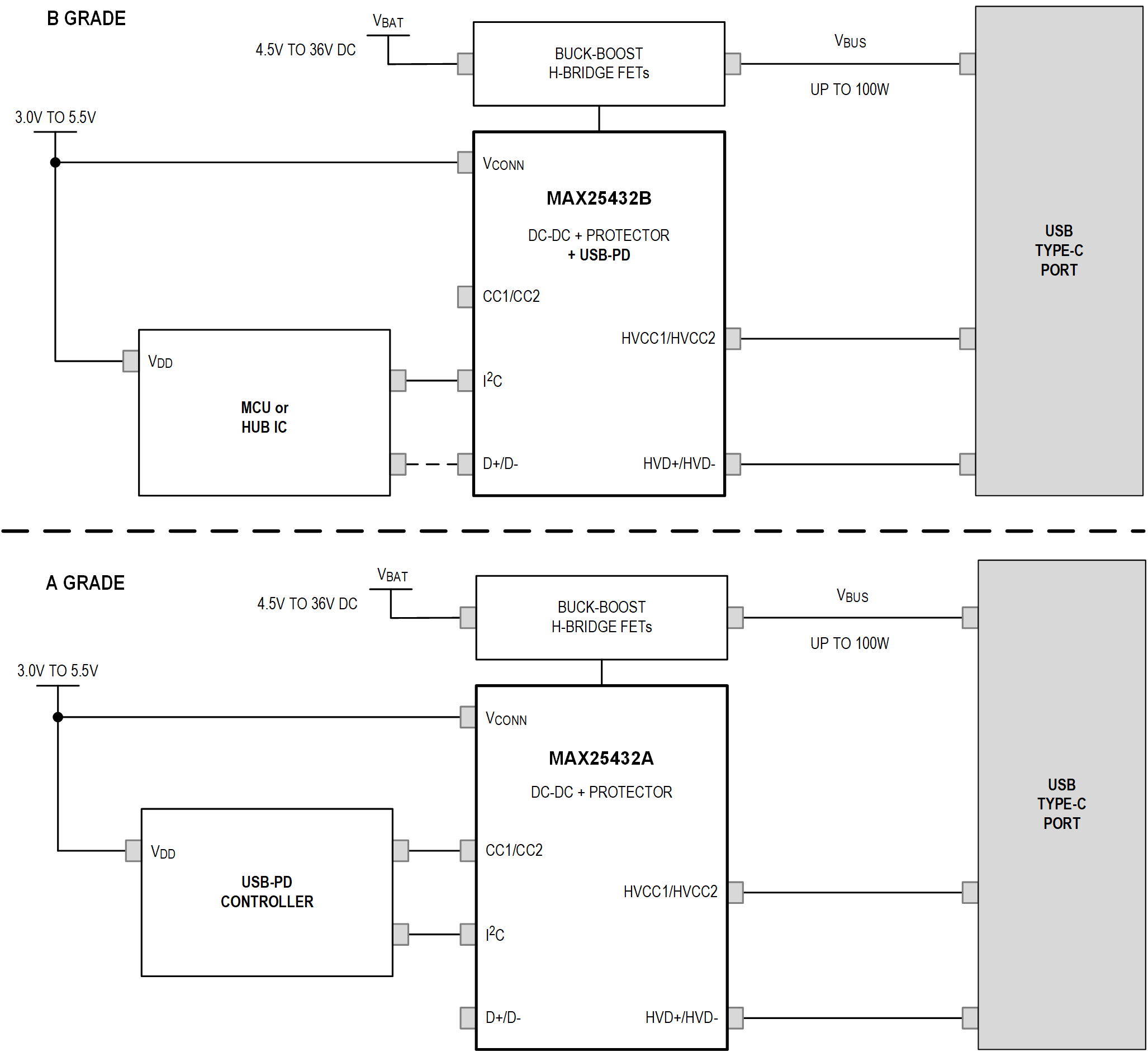

The MAX25432 combines an automotive-grade buck-boost controller capable of full-range 3.3V to 21V programmable power supply (PPS) at up to 6.35A, a USB Power Delivery (USB PD) analog front-end (AFE), legacy USB charging support, and USB Type-C® protection switches for automotive USB host or downstream-facing (DFP) applications. The USB Type-C protection switches provide automotive system-level ESD protection and 24V short-circuit protection for D+, D-, CC1, CC2, and VCONN. The device can optionally support legacy charging modes for older passenger phones including BC1.2, Apple® Charge, Apple CarPlay®, Apple MFi, and USB On-The-Go (OTG).


The MAX25432B integrates a USB PD AFE, which supports the USB-IF Type-C Port Controller Interface (TCPCI) specification and can interface with any I2C master in the application. The MAX25432A provides configuration channel (CC) signal pass-through protection for an external USB PD controller.


P-suffix and G-suffix devices include intelligent detection and protection to avoid high short-circuit currents flowing from the car battery through the cable shield to ground during fault events, thus preventing car module damage.


The MAX25432 is available in a small, 6mm x 6mm, 40-pin TQFN-EP package and requires very few external components. The MAX25432 evaluation (EV) kit and collateral provide a convenient platform to the design engineer for rapid evaluation with reduced test and firmware development time.

Applications

  • Dedicated Charging Modules
  • Head Unit, Radio, Navigation
  • Rear-Seat Entertainment Modules
  • USB Hubs, Breakout Boxes, and Multimedia Hubs
Show More Arrow image
file View Data Sheet (Rev.1)
Documentation View All Documentation
Part Models 8
1ku List Price Starting From $6.43
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX25432

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

PDF Vector

HTML

UPDATED 01/16/2024
English

MAX25432: Automotive, 100W, USB PD, PPS, Buck-Boost Port Controller and Protector Data Sheet (Rev.1)

Open PDF File

redirect
2.85 M

Open Interactive Page

redirect
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

Video

1

Thumbnail Image

Video

2022-10-04

02:45

Introduction to the MAX25432 Automotive 100W USB-PD PPS Buck-Boost Port Controller and Protector

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX25432BATLG/V+ 40-LFCSP-6X6X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX25432BATLG/V+T 40-LFCSP-6X6X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX25432BATLGS/V+ 40-LFCSP-6X6X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX25432BATLGS/V+T 40-LFCSP-6X6X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX25432BATLM/V+ 40-LFCSP-6X6X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX25432BATLM/V+T 40-LFCSP-6X6X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX25432BATLP/V+ 40-LFCSP-6X6X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX25432BATLP/V+T 40-LFCSP-6X6X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

MAX25432BEVKIT

Evaluation Kit for the MAX25432

zoom

MAX25432BEVKIT

Evaluation Kit for the MAX25432

download icon

Download

 print icon

Print
MAX25432BEVKIT
Evaluation Kit for the MAX25432

Features and Benefits

  • 100W USB-PD Rev. 3.0 with PPS for CDP and DCP Applications
  • Legacy USB 2.0 Charging Support—Meets MFi R3x
  • Programmable Fixed and Augmented PDOs Using the Feather Board and GUI
  • Test Points Available for Signals and Buck-Boost analysis
  • Fully Assembled and Tested, Proven PCB Layout
Buy Now View Details

Product Detail

The MAX25432 EV kit and collateral provides a convenient platform to the design engineer for rapid evaluation with reduced test and firmware-development time.

The MAX25432B evaluation kit (EV kit) features MAX25432BATLG/V+ automotive 100W USB-PD PPS buck-boost port controller and protector for head-unit, multi-media hub, rear-seat infotainment, and dedicated charging port (DCP) applications.

The IC combines an automotive-grade buck-boost controller capable of full range PPS 3.3V-21V at up to 6.35A, a USB-PD analog front-end (AFE), legacy USB charging support and USB Type-C® protection switches for automotive USB host or DFP applications.

The integrated USB Type-C protection switches provide automotive system-level ESD and 24V short-circuit protection for D+, D-, CC1, CC2, and VCONN. The device also supports legacy USB 2.0 charging modes including BC1.2, Apple® 2.4A, Apple CarPlay®, Apple MFi and USB On-The-Go (OTG).

The USB-PD source capabilities and I2C registers can be changed using the PC GUI software available for download.

The EV kit also allows evaluation of the intelligent shield short-to-battery detection and protection available on MAX25432. This feature protects against high shortcircuit currents flowing from the car battery through the cable shield to module ground during fault events, preventing car module damage.

Automotive USB-PD reference designs are also available. contact Maxim Integrated for more information.

Applications

  • Dedicated Charging Modules
  • Head Unit, Radio, Navigation
  • Rear-Seat Entertainment Modules
  • USB Hubs, Breakout Boxes, and Multimedia Hubs
