MAX25229
RECOMMENDED FOR NEW DESIGNSEight-Output ASIL D PMIC
- Part Models
- 1
- 1ku List Price
- Starting From $3.53
Overview
- Multiple Functions for Small Size
- Synchronous 5V Boost Converter
- Up to 700mA Output Current
- Four 4A Buck Converters
- OUT2–4: 0.5V to 2.0V
- OUT5: 0.5V to 3.3V
- Supports Dual-Phase Operation
- Three 600mA PMOS LDOs
- Can Be Configured as Voltage Monitors
- Five Programmable GPIO Pins
- Challenge-Response Watchdog
- I2C Fast-mode Plus-Compatible Interface
- 2.1MHz Internal Operation with Spread Spectrum
- High-Precision Performance
- ±1% Output Voltage Accuracy
- ±1% OV/UV Monitoring
- Excellent Load-Transient Performance
- MAXQ™ Architecture
- Diagnostics and Redundant Circuits
- ASIL D Compliant
- Redundant Reference
- Fail Safe on Open Pins
- Packet Error Checking (PEC) on I2C
- Shorted Pin Detection on RESET
- AV Supply OV/UV Monitor
- Robust for the Automotive Environment
- Current-Mode, Forced-PWM Operation
- Overtemperature and Short-Circuit Protection
- 5mm x 5mm, 29-Pin FCQFN
- -40°C to +125°C Grade 1 AutomotiveTemperature Range

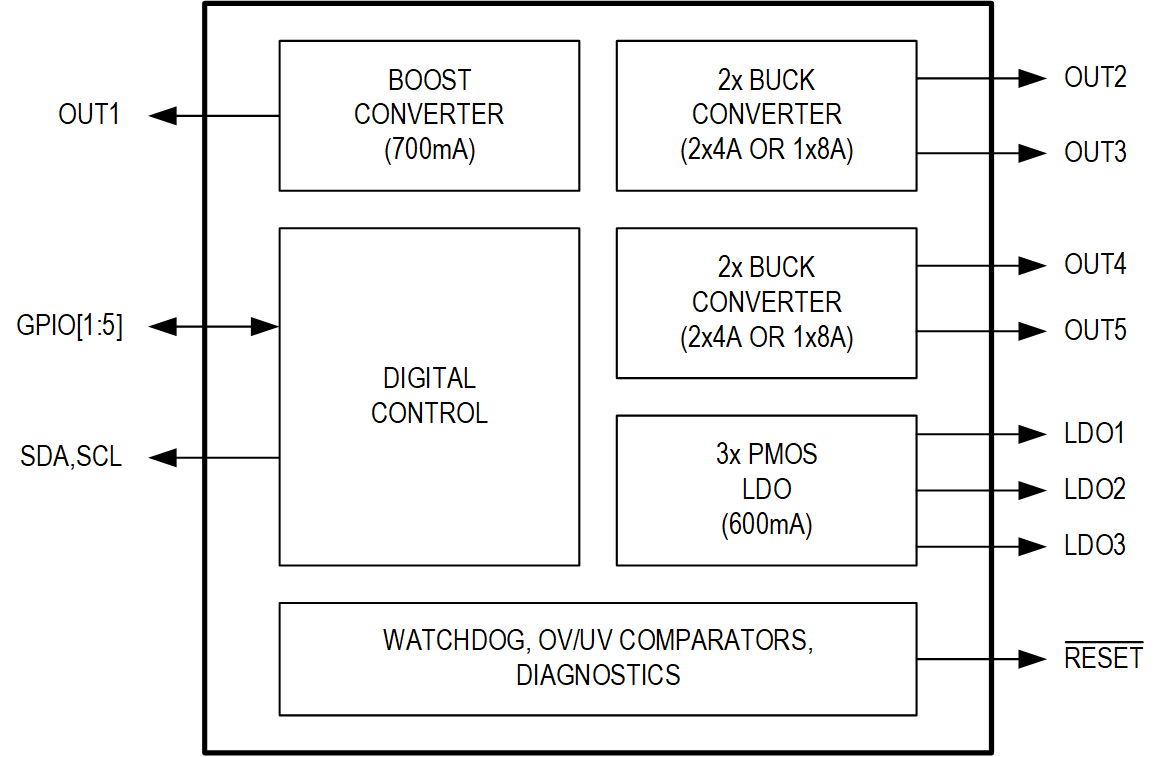

The MAX25229 is a high-efficiency, eight-output, low-voltage PMIC. OUT1 is a 1.6A boost converter which can boost a 3.3V input supply to 5V at up to 500mA output current, while four synchronous step-down converters provide an output voltage range of 0.5V to 2.0V at up to 4A for 1-phase and 8A for 2-phase operation. Three 600mA PMOS LDOs operate from an input voltage range of 2.7V to 5.5V and provide an output voltage of 0.5V to 3.68V. All DC-DC converters achieve ±1% DC accuracy over load, line, and temperature range, while the LDOs achieve ±3% AC+DC accuracy.
This device features a 2.1MHz fixed-frequency PWM mode for better noise immunity and load-transient response. The high switching frequency operation allows for the use of all ceramic capacitors and minimizes external components. The spread-spectrum frequency modulation minimizes radiated electromagnetic emissions. Integrated low RDS(ON) switches improve efficiency at heavy loads and simplify the layout with respect to discrete solutions. The MAXQ™ architecture minimizes output capacitance for each output by individually optimizing each output for the application requirements and eliminating process variations that reduce performance.
The device is offered with factory-preset output voltages. See the Ordering Information table for options.
APPLICATIONS
- Domain ECU
- Advanced Driver-Assistance Systems
