21mΩ, 80V High-Side Switch with Advanced Diagnostics and Load Current Monitoring

RECOMMENDED FOR NEW DESIGNS

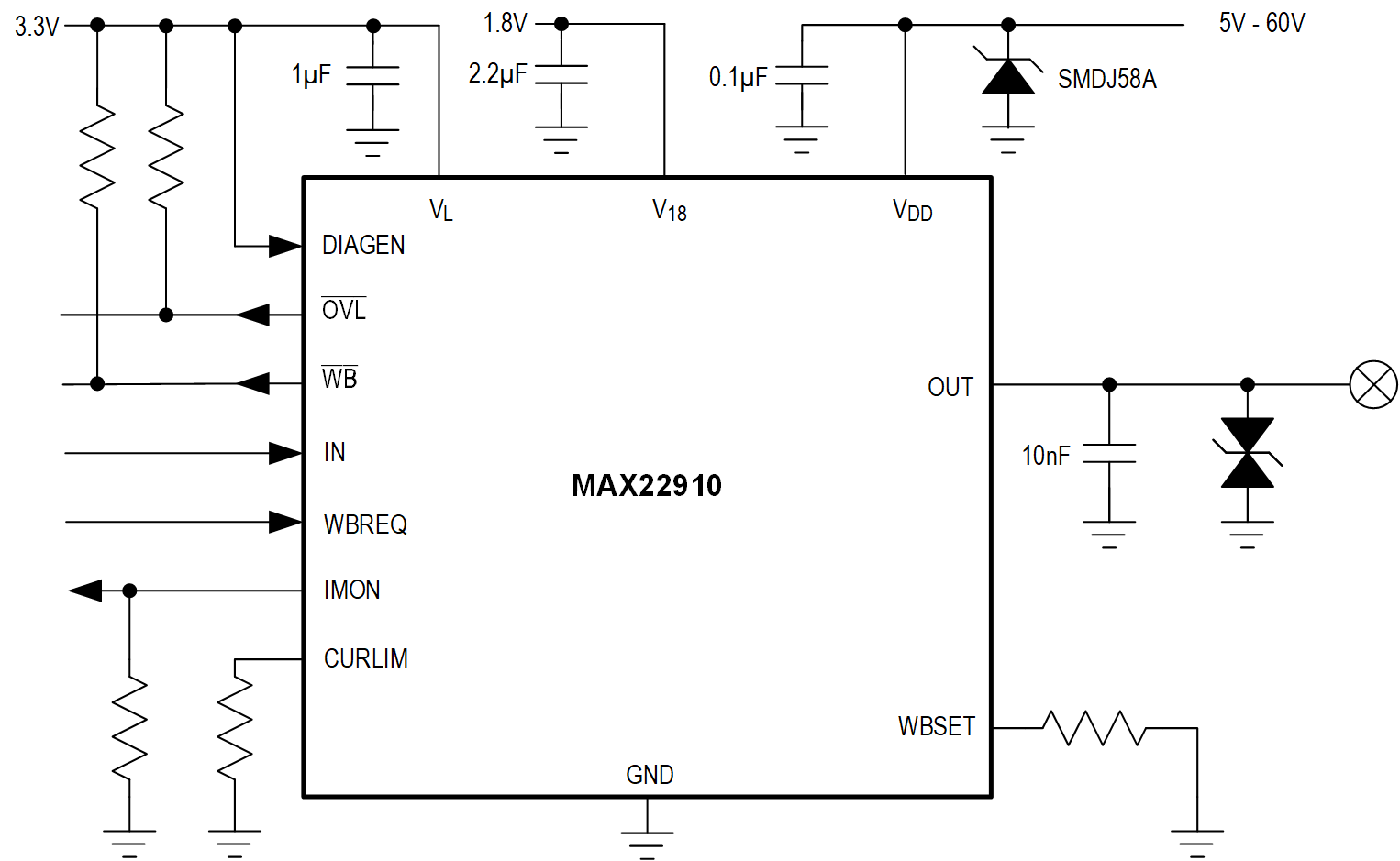

MAX22910 Simple Application Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $5.13

Features

Reduced Power and Heat Dissipation
- 40mΩ (max) On-Resistance at T_A = 125°C
- 1.2mA (typ) Supply Current with No Load
- Adjustable Output Current Limit from 0.7A to 9A
Robustness and Advanced Diagnostics
- 80V Maximum Supply Range
- Independent Load Current Monitor Output
- ±6% (max) Accuracy in Monitoring Load Current more than 700mA
- Open-Wire Detection with Switch Closed
- Adjustable Open-Wire Detection Threshold
- Thermal Overload and Short-Circuit Protection
- Overload Diagnostic Output
- -40°C to +125°C Ambient Operating Temperature

High-Speed Operation
- 110μs (max) Turn-On Propagation Delay
- <1μs (typ) IMON Response Time
Flexibility Design
- Supply Voltage VDD from 4.75V to 80V
- Logic Voltage Interface VL from 1.6V to 5.5V

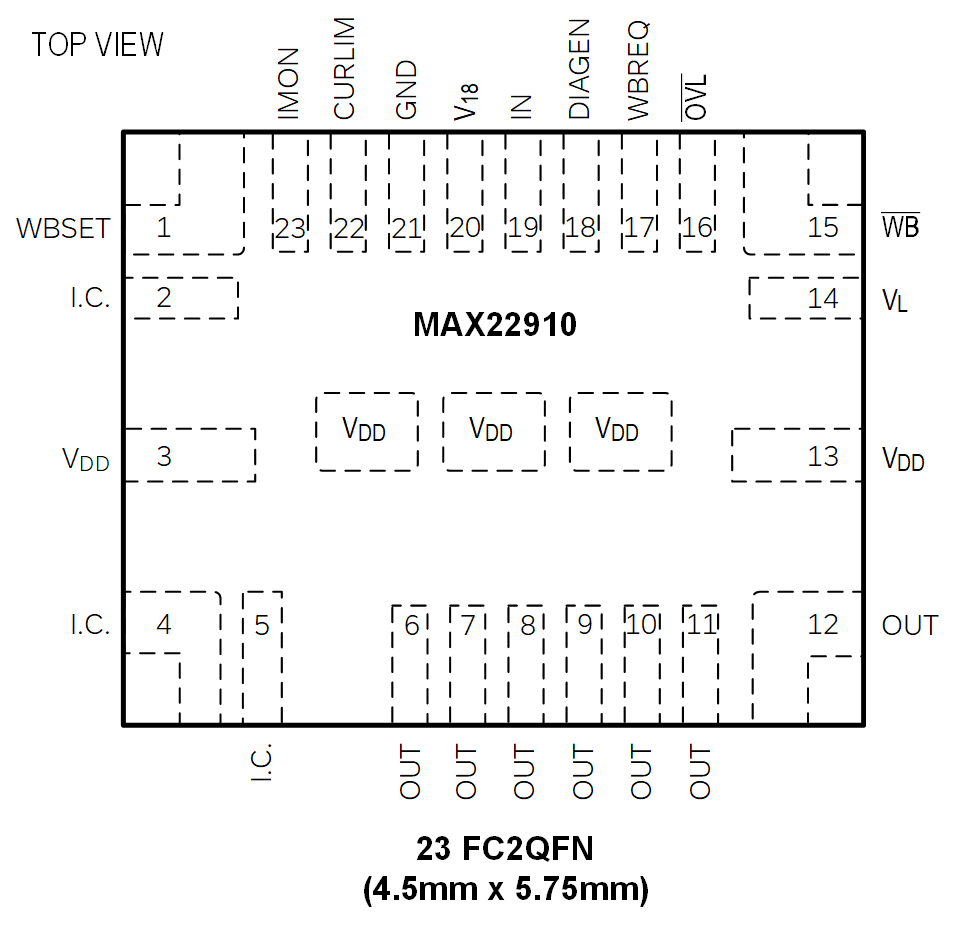

- Compact 4.5mm x 5.75mm FC2QFN

Additional Details

The MAX22910 is an industrial high-side switch that operates as a current sourcing output device. The highside switch has an on-resistance R_ON of 21mΩ (typ) and 40mΩ (max). The maximum load current is limited and set via the CURLIM resistor in the range of 0.7A to 9A with ±10% accuracy. At +100°C ambient temperature, the maximum continuous load current is up to 7A.

The MAX22910 is specified for operation up to 80V (max) supply voltage if OUT does not go below GND. The V_L logic supply allows flexible logic interface levels in the range of 1.6V to 5.5V.

Open-wire detection detects wiring faults when the switch is on for load current below a threshold in the range of 1mA to 7mA, as set by the WBSET resistor.

Accurate load current monitoring at the IMON current output monitors the load current with ±4% accuracy between 2A and 9A and with ±6% accuracy between 0.7A and 2A when the device is not in the current limit.

The MAX22910 is protected against short-circuits, overcurrent, and thermal overload. Achieve fast load turn-off time by connecting an external TVS diode at OUT with a high clamp voltage to clamp inductive kickback energy.

The MAX22910 is available in a compact 4.5mm x 5.75mm FC2QFN package and is specified for operation from -40°C to +125°C ambient temperature.

APPLICATIONS

Industrial Digital Output Modules
Safety Output Modules
Commercial Vehicle Controllers
Motor Holding Brakes

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 2

1ku List Price Starting From $5.13

Technical Documents 1

MAX22910: 21mΩ, 80V High-Side Switch with Advanced Diagnostics and Load Current Monitoring Data Sheet (Rev.1) 04/03/2024

Design Resources 2

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX22910AFD+	23-LFCSP-4.5X5.75X0.75	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
MAX22910AFD+T	23-LFCSP-4.5X5.75X0.75	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

MAX22910AFD+
Pin/Package Drawing
23-LFCSP-4.5X5.75X0.75
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

MAX22910AFD+T
Pin/Package Drawing
23-LFCSP-4.5X5.75X0.75
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Companion Parts 5

Parts	Product Life Cycle	Description
Positive Linear Regulators (LDO)5
LT3013	RECOMMENDED FOR NEW DESIGNS	250mA, 4V to 80V Low Dropout Micropower Linear Regulator with PWRGD
LT3014	RECOMMENDED FOR NEW DESIGNS	20mA, 3V to 80V Low Dropout Micropower Linear Regulator
LT3012	RECOMMENDED FOR NEW DESIGNS	250mA, 4V to 80V Low Dropout Micropower Linear Regulator
LT3011	RECOMMENDED FOR NEW DESIGNS	50mA, 3V to 80V Low Dropout Micropower Linear Regulator with PWRGD
LT3010 LT3010-5		50mA, 3V to 80V Low Dropout Micropower Linear Regulator

MAX22910EVKIT

Evaluation Kit for MAX22910

Evaluation Kit for MAX22910

Download

MAX22910EVKIT

Evaluation Kit for MAX22910

Features and Benefits

Robust Operation with Wide Range of Input Voltage up to +80V (max) and Load Current up to 9A (max)
Safe Inductive Load Switching with Output Clamping
Optional V_DD-reference Output Clamping Diode
Wire-Break and Overload Fault LED Indications
On-Board Isolation between Logic and Field Sides
On-Board 3.3V LDO to Supply Logic Input
±2kV Surge Transients, ±8kV Contact, and ±15kV Airgap ESD Protection
±4kV EFT Burst and 10V_RMS, 10kHz to 80MHz RF Conducted Immunity
-40°C to +125°C Operating Temperature Range
Proven PCB Layout
Fully Assembled and Tested

Buy Now View Details

Product Detail

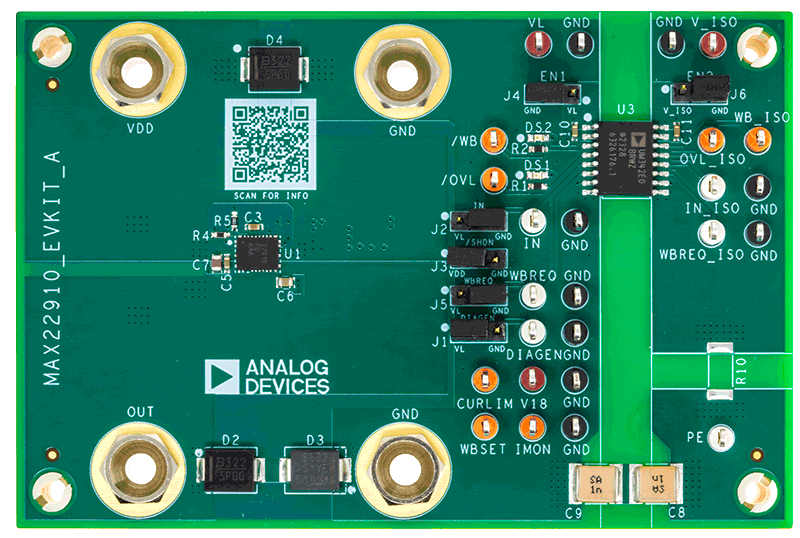

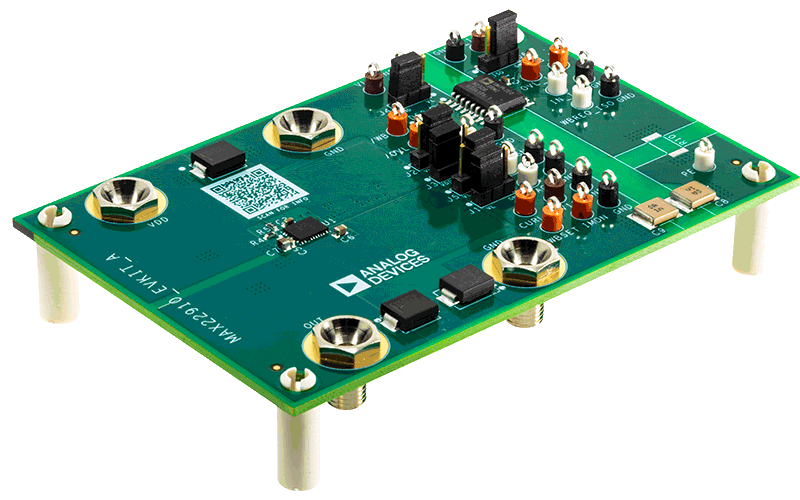

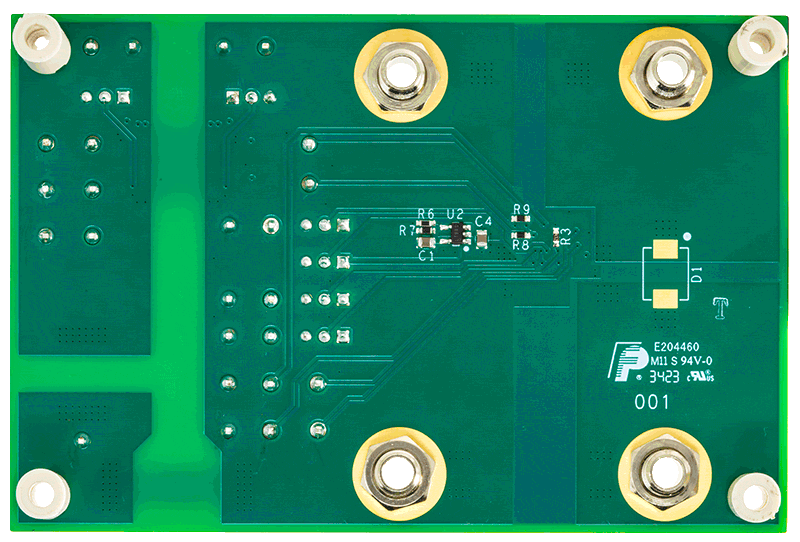

The MAX22910 evaluation kit (EV kit) provides a proven design to evaluate the MAX22910, a 21mΩ single-channel high-side switch with advanced diagnostics for industrial applications. The EV kit is powered from an external power supply at V_DD, while the on-board LT3014 LDO generates a 3.3V for the logic input level of the MAX22910. The logic level can be set with an external power supply at V_L, alternatively. The EV kit is preinstalled with ADuM342E0, a four-channel digital isolator with default-low output. It provides digital isolation between the field and logic sides for logic control I/Os.
