MAX22513

Surge Protected Dual Driver IO-Link Device Transceiver with DC-DC

Show More showmore-icon

Dual Channel Low Power IO-Link Transceiver with Integrated High Efficiency DC/DC

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.4)
Documentation View All Documentation
IBIS Model MAX22513 IBIS Model Download 3.28MB
Part Models 4
1ku List Price Starting From $4.92
Features
  • High Configurability and Integration Reduces SKU
    • Configurable C/Q and DO/DI Drivers
      • PNP, NPN, and Push-Pull Modes
      • Individual Slew Rate Control for Drivers
      • Selectable Driver Current Limit: 50mA to 250mA
    • Control and Monitoring with I2C or SPI
      • Half- and Full-Duplex SPI Modes
    • Integrated High-Efficiency DC-DC Buck Regulator
      • Selectable Switching Frequency
        • 921kHz (typ) or 1.229MHz (typ)
      • 300mA (max) Load
      • Output Voltage from 2.5V to 12V
    • Internal 5V and 3.3V Linear Regulators
    • Accurate Oscillator for IO-Link Communication
  • Integrated Protection Enables Robust Systems
    • Integrated ±1kV/500Ω Surge Protection
    • Glitch Filters for Improved Burst Resilience
    • Selectable Overcurrent Configuration
    • Hot-Plug and Reverse Polarity Protection
    • -40°C to +125°C Operating Temperature Range
  • Optimized for Small Sensor Designs
    • Low Power Dissipation:
      • 2Ω (typ) On-Resistance for C/Q and DO/DI Drivers
    • Available in Two Tiny Packages:
      • 28-Pin TQFN-EP (3.5mm x 5.5mm)
      • WLP (4.1mm x 2.1mm)
Additional Details
show more Icon

MAX22513 Samples

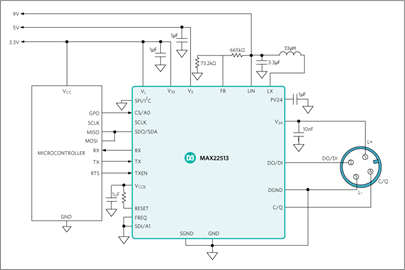

The MAX22513 dual-channel low power IO-Link device transceiver features a selectable control interface, internal high-efficiency DC-DC buck regulator, two internal linear regulators, and integrated surge protection for robust communication. The device features low-on resistance drivers (C/Q and DO/DI), selectable driver current limits, and overcurrent protection to reduce power dissipation in small sensor applications.

The DC-DC buck regulator supplies up to 300mA load current and has an adjustable output voltage (from 2.5V to 12V). Internal linear regulators generate 5V and 3.3V, supplying up to 50mA of current.

The MAX22513 can be controlled using SPI or I2C interfaces, providing flexibility for microcontrollers, and extensive control and diagnostic features. Both full- and half-duplex SPI are supported. The internal MCLK oscillator provides a clock source to a microcontroller for IO-Link communication.

The MAX22513 features extensive integrated protection to ensure robust communication in harsh industrial environments. All four IO pins (V24, C/Q, DO/DI, and GND), are reverse voltage protected, short circuit protected, and feature integrated ±1kV/500Ω surge protection.

The MAX22513 is available in a tiny WLP package (4.1mm x 2.1mm) or 28-pin TQFN-EP package (3.5mm x 5.5mm) and operates over the -40°C to +125°C temperature range.

Applications

  • Industrial Sensors
  • IO-Link Sensor and Actuator Devices
Show More Arrow image
file View Data Sheet (Rev.4)
Documentation View All Documentation
IBIS Model MAX22513 IBIS Model Download 3.28MB
Part Models 4
1ku List Price Starting From $4.92
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX22513

Documentation

7
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Technical Articles
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

UPDATED 08/20/2019
English

MAX22513: Surge Protected Dual Driver IO-Link Device Transceiver with DC-DC Data Sheet (Rev.4)

Open PDF File

redirect
1.00M
download

Download PDF

Technical Articles

6

PDF Vector

HTML

UPDATED 10/16/2023
English
Implementing Small and Energy Efficient Industrial Field Sensors with IO-Link Technology redirect icon

PDF Vector

HTML

UPDATED 10/16/2023
Chinese
利用IO-Link™技术实现小型高能效工业现场传感器 redirect icon

PDF Vector

HTML

UPDATED 06/24/2019
English
How to Select a TVS Diode for IO-Link Devices redirect icon

PDF Vector

HTML

UPDATED 06/24/2019
Japanese
IO-Linkトランシーバーに最適なTVSダイオードを選択する方法 redirect icon

PDF Vector

HTML

UPDATED 03/20/2019
English
Bring Your High Current Sensors to the IO-Link Revolution redirect icon

PDF Vector

HTML

UPDATED 04/02/2021
English
Configuring an IO-Link Device Transceiver for Use in an IO-Link Master redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Solutions Bulletin & Brochure 1

IO-Link Handbook

Webcast 1

Designing Industrial Connectivity Solutions for The Smart Factory

Video

1

Thumbnail Image

Video

2022-10-04

05:46

Introduction to the MAX22513 Surge Protected Dual Driver IO-Link Device Transceiver with DC/DC

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX22513ATI+ 28-LFCSP-3.5X5.5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX22513ATI+T 28-LFCSP-3.5X5.5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX22513AWJ+ 32-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX22513AWJ+T 32-WLCSP-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Software & Part Ecosystem

Evaluation Kits 1

MAX22513EVKIT

Evaluation Kit for the MAX22513

zoom

MAX22513EVKIT

Evaluation Kit for the MAX22513

download icon

Download

 print icon

Print
MAX22513EVKIT
Evaluation Kit for the MAX22513

Features and Benefits

  • IO-Link-Compliant Device Transceiver
  • I/O, I2C, and SPI Interface Terminals
  • Arduino® Compatible Connector
  • Windows 10-Compatible Software
  • USB-PC Connection
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX22513 evaluation kit (EV kit) consists of the evaluation board and software. The EV kit is a fully assembled and tested circuit board that evaluates the MAX22513 IO-Link® device transceiver with integrated DC-DC buck regulators.

The EV kit includes Windows®-compatible software that provides a graphical user interface (GUI) for exercising the features of the MAX22513. The EV kit is connected to a PC through a USB-A-to-micro-B cable.

Applications

  • Industrial Sensors
  • IO-Link Sensor and Actuator Devices

Resources

pdf icon

ZIP

MAX22513EVKIT ODB File - Design Files Download

1.01 M

Show More Arrow image

Evaluation Kits1

MAX22513EVKIT

Evaluation Kit for the MAX22513

Reference Designs 3

MAXREFDES79

MAXREFDES79

4-Port IO-Link Master

MAXREFDES174

MAXREFDES174

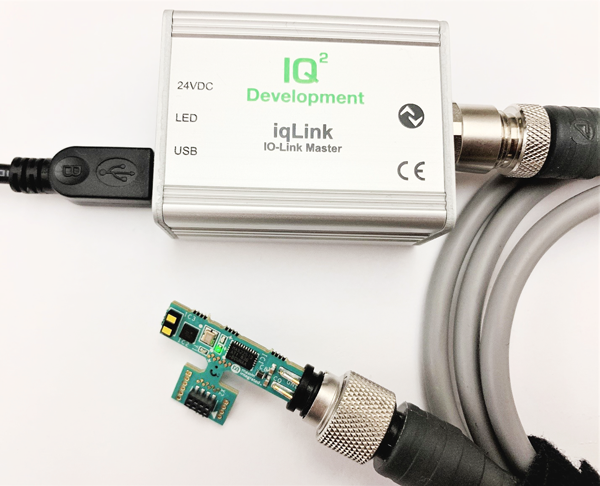

MAXREFDES174: IO-Link Distance Sensor

MAXREFDES171

MAXREFDES171

IO-Link Distance Sensor

Reference Designs3

MAXREFDES79

MAXREFDES79

4-Port IO-Link Master

MAXREFDES174

MAXREFDES174

MAXREFDES174: IO-Link Distance Sensor

MAXREFDES171

MAXREFDES171

IO-Link Distance Sensor
