MAX22212

RECOMMENDED FOR NEW DESIGNS

36V, 7.6A High Current Single H-Bridge with Integrated Current Sense

Viewing:

Overview

  • One H-Bridge with +36V Voltage Rating
    • Total RDS(ON) (High-Side + Low-Side): 125mΩTypical (TA = 25°C)
  • Current Ratings per H-Bridge (Typical at TA = 25°C):
    • IFS_MAX = 7.6A (Max Full-Scale Current Setting forInternal Current Drive Regulation)
    • IRMS = 4ARMS Recommended Maximum RMS Current
  • Integrated Current Control
    • Full-Scale DAC Current Programmable with External Resistor
    • Internal Current Sensing (ICS) Eliminates ExternalBulky Resistors and Improves Efficiency
    • Current Drive Regulation Monitor Output Pin (CDR Pin)
    • Integrated DAC Sets the Output Current from 16Levels
    • Four Decay Modes Supported (Slow, Fast, and Two Mixed Modes)
    • Fixed OFF Time Configurable with External Resistor
  • Current Sense Output (Current Monitor)
  • Fault Indicator Pin (FAULT)
  • Low Power Mode (Sleep Mode)
  • Protections
    • Overcurrent Protection for each Channel (OCP)
    • Undervoltage Lockout (UVLO)
    • Thermal Shutdown TJ = 165°C (TSD)
  • TQFN32 5mm x 5mm Package or in a TSSOP284.4mm x 9.7mm Package

The MAX22212 integrates a high current 36V, 7.6AMAX H-Bridge to drive one Brushed DC motor or one half of a stepper motor. The H-Bridge FETs feature very low impedance, resulting in high driving efficiency and low heat generation. The typical total RON (high-side + low-side) is 0.125Ω. The H-Bridge can be PWM controlled by using three logic inputs (DIN1, DIN2, and EN).

The MAX22212 features an accurate current drive regulation (CDR), which can be used to limit the start up current of a brushed DC motor or to control the phase current for stepper operation. The bridge output current is sensed by a non-dissipative integrated current sensing (ICS) and it is then compared with a user configurable set point (ITRIP). When the bridge current exceeds the setpoint, the device enforces the decay for a fixed OFF-time (tOFF). Four different decay methods are supported (Slow Decay, Fast Decay, and two Mixed Decay modes). The non-dissipative ICS eliminates the bulky external power resistors normally required for this function resulting in a dramatic space and power saving compared with mainstream applications based on the external sense resistor.

A current proportional to the internally-sensed motor current is output to the external pins (ISENA, ISENB). By connecting an external resistor from these pins to GND, a voltage proportional to the motor current is generated. The voltage across this resistor can be used as inputs to ADCs of an external motor controller if motion control algorithm requires the current/torque information.

In addition, one open-drain output (CDR pin) is asserted every time the internal current regulation takes control of the driver so that the activity of the internal current loop can be monitored.

The maximum user configurable full-scale current (IFS_MAX) can be set up to 7.6A limited by the overcurrent protection (OCP). An external resistor connected from REF to GND sets the full-scale current (IFS) threshold. An integrated sinusoidal 4-bit DAC allows the user to dynamically modify the current regulation set-point (ITRIP) from zero to IFS. Because of thermal considerations, the recommended maximum RMS current on a standard 4-layers PCB is 4ARMS.

In applications in which the requirement of maximum full-scale current is less than 3.8A and high current control accuracy is desired, the half full scale (HFS) logic input pin can be set high to halve the current rating and double the low-side FET RON. This results in better current control loop accuracy in the bottom end of the current range. The MAX22212 features overcurrent protection (OCP), thermal shutdown (TSD), and undervoltage lockout (UVLO) protection. An open-drain active low FAULT pin is activated every time a fault condition is detected. During thermal shutdown and undervoltage lockout events, the driver is disabled until normal operations are restored.

The MAX22212 is available into a small TQFN32 5mm x 5mm package or in a TSSOP28 4.4mm x 9.7mm package.

APPLICATIONS

  • Stepper-Motor Driver
  • Brushed DC Motor Driver
  • Solenoid Driver
  • Latched Valves

MAX22212
36V, 7.6A High Current Single H-Bridge with Integrated Current Sense

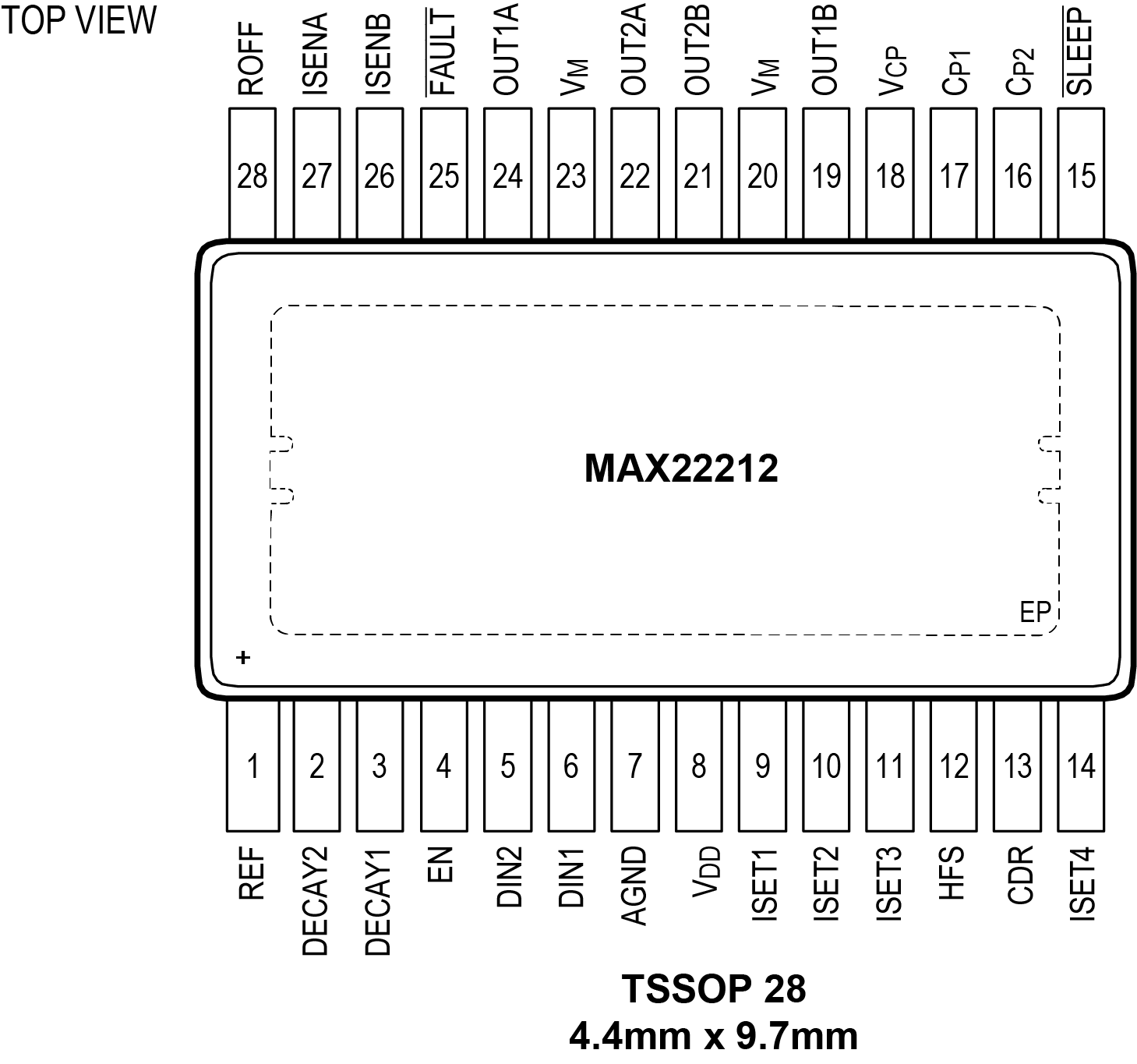

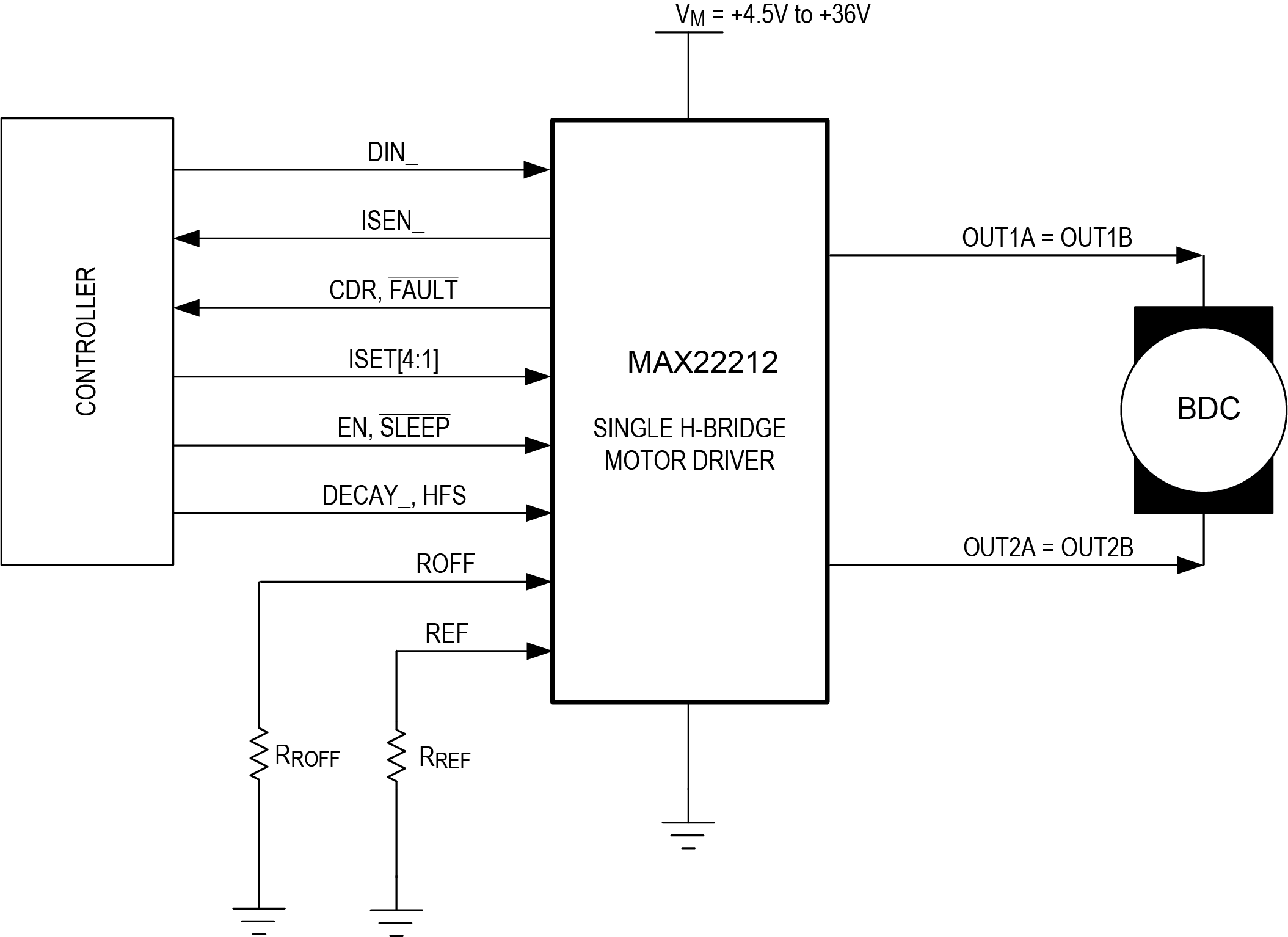

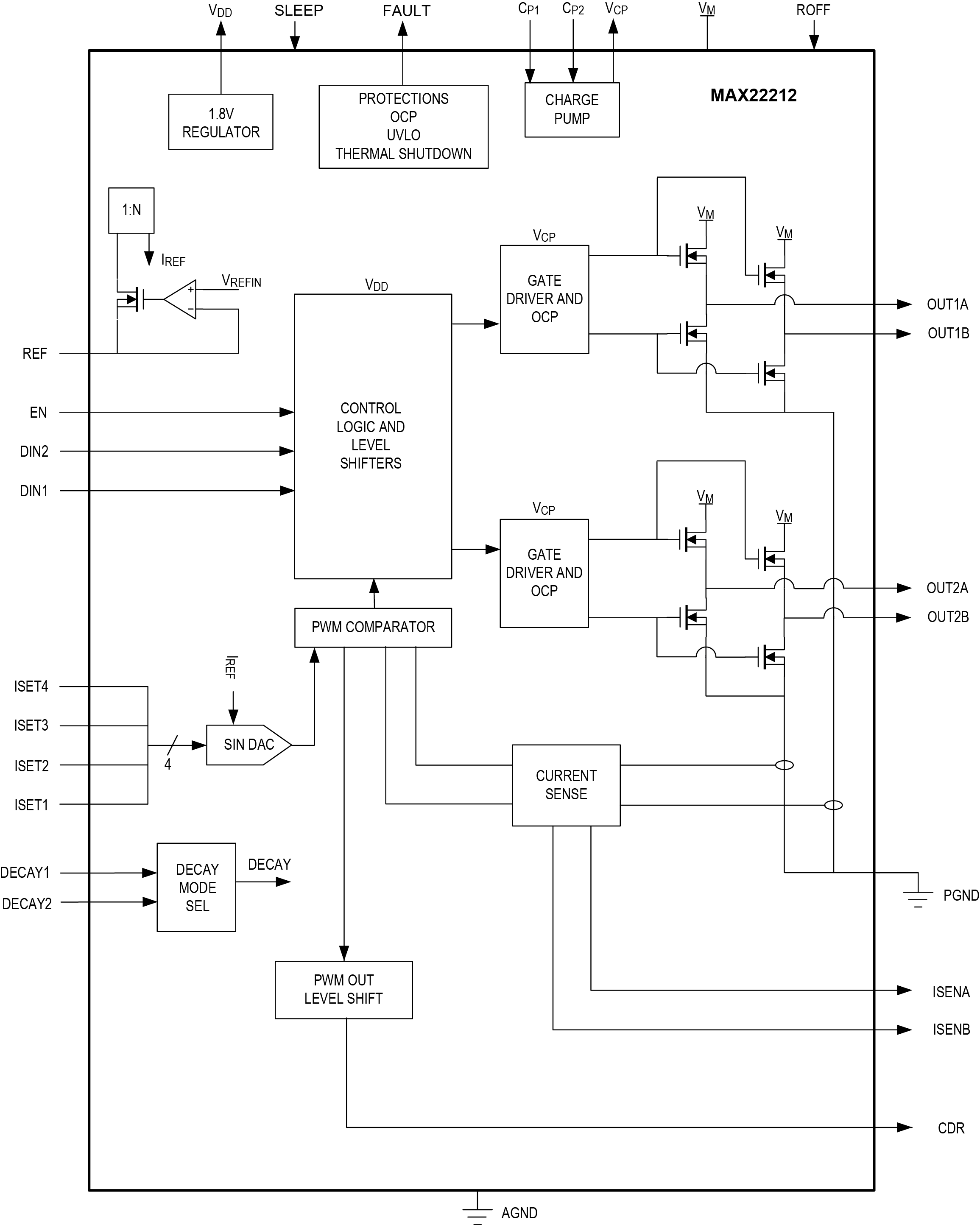

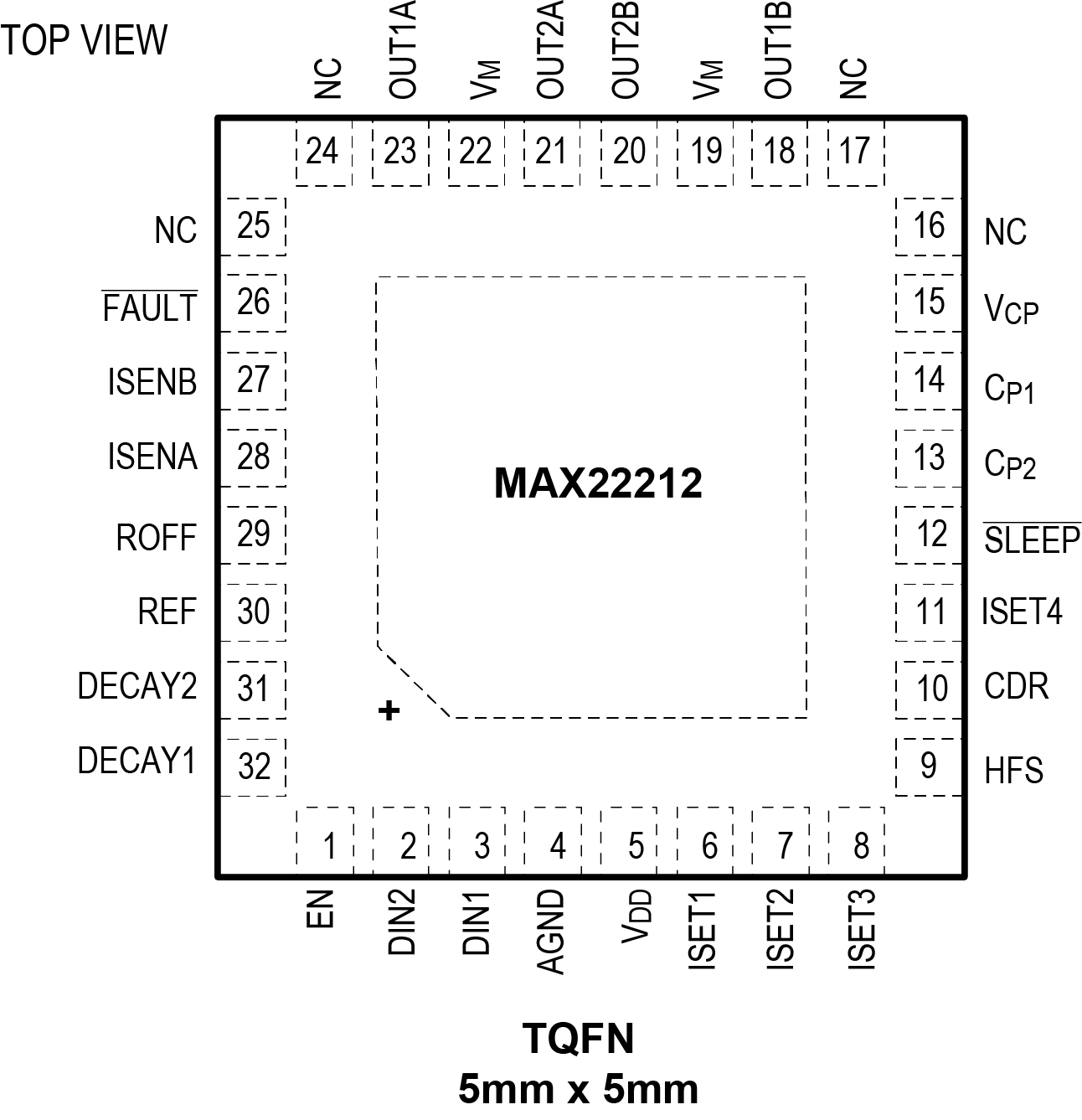

MAX22212 Functional Diagram MAX22212 Simplified Block Diagram MAX22212 TQFN Pin Configuration MAX22212 TSSOP Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

eval board
MAX22212EVKIT

Evaluation Kit for MAX22212

Features and Benefits

  • Easy Evaluation of the MAX22212
  • Adjustable tOFF Time Using On-Board Potentiometer
  • Configurable Current Drive Regulation (CDR)
  • On-Board +3.3V Regulator to Drive the MAX22212 Logic Inputs
  • Test Points and Headers to Interface with the MAX22212 Logic Inputs and Current Sense Outputs
  • Fully Assembled and Tested
  • Proven PCB Layout

Product Details

The MAX22212 evaluation kit (EV kit) provides a proven design to evaluate the +36V, 7.6A single H-bridge MAX22212 motor driver. The MAX22212 drives a single brushed DC motor. The MAX22212 IC integrates very low impedance FETs in a single H-bridge configuration with a typical RON (high-side + low-side) of 0.125Ω. The EV kit features headers, test points, and terminal blocks to provide an interface to the MAX22212 motor driver. The MAX22212’s integrated current sense output ISENA and ISENB can be monitored using test points or connected to an external ADC using header J4. The MAX22212 features embedded current drive regulation (CDR) with adjustable chopping current (IFS) and adjustable current limit off time (tOFF). The MAX22212 EV kit operates from an input voltage of +4.5V to +36V (VM). An on-board +3.3V regulator U2 (MAX6765TTSD2+) provides a regulated +3.3V to drive the MAX22212 logic inputs. Terminal blocks J1 and J5 are installed to provide an interface for the high voltage, high current VM inputs, and motor driver outputs OUT1_ and OUT2_.

MAX22212EVKIT
Evaluation Kit for MAX22212

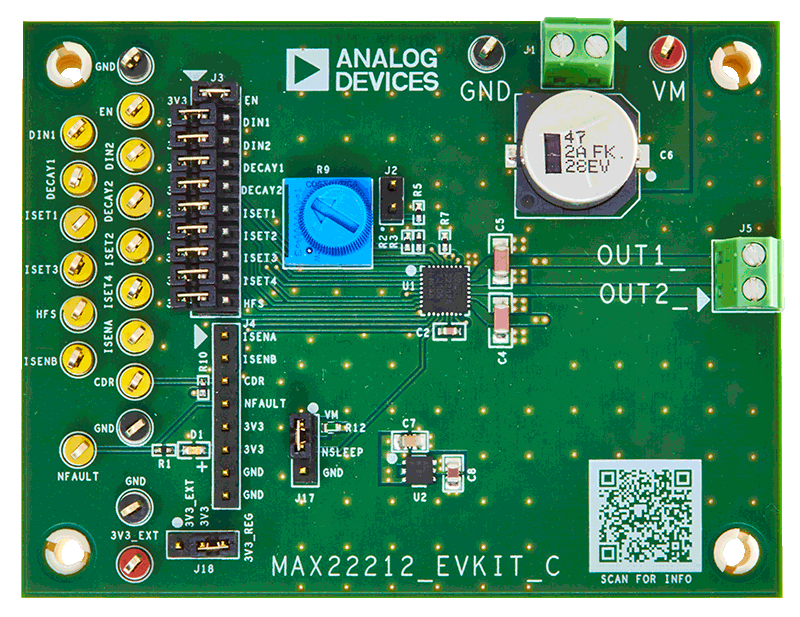

MAX22212EVKIT Board Photo Angle View MAX22212EVKIT Board Photo Top View MAX22212EVKIT Board Photo Bottom View
