MAX20461

Automotive High-Current Step-Down Converter with USB-C Protection/Host Charger

Show More showmore-icon

Industry's First Automotive Single Chip USB Type-C Charge Enumerator with Buck Converter

Info : RECOMMENDED FOR NEW DESIGNS tooltip
Info : RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.8)
Open Interactive Page external-link
Documentation View All Documentation
Part Models 10
1ku List Price Starting From $2.13
Features
  • One-Chip Type-C Solution Directly from Car Battery to Portable Device
    • MAX20461: USB Type-C Compliant DFP Controller with VCONN Protection
    • MAX20461A: USB Type-C Compliant DFP Controller
    • 1GHz Bandwidth USB 2.0 Data Switches
    • 4.5V to 28V Input (40V Load Dump), Synchronous Buck Converter
    • 5V to 7V, 3A Output Capability
  • Optimal USB Charging and Communication for Portable Devices
    • User-Programmable Voltage Gain Adjusts Output for Up to 474mΩ Cable Resistance
    • User-Programmable USB Current Limit
    • Type-C Cable Orientation Indicator for USB3 Applications
    • Supports USB BC1.2 CDP and SDP Modes
    • Compatible with USB On-the-Go Specification and Apple CarPlay®
  • Low-Noise Features Prevent Interference with AM Band and Portable Devices
    • Fixed-Frequency 310kHz to 2.2MHz Operation
    • Fixed-PWM Option at No Load
    • Spread Spectrum for EMI Reduction
    • SYNC Input/Output for Frequency Parking
  • Robust Design Keeps Vehicle System and Portable Device Safe in an Automotive Environment
    • Short-to-Battery Protection on VBUS, HVD± Pins
    • CC1 and CC2 Tolerant to 20V Transients
    • Advanced Diagnostics Through I²C Bus
    • ±25kV Air/±8kV Contact ISO 10605 (330pF, 2kΩ)*
    • ±15kV Air/±8kV Contact IEC 61000-4-2 (150pF, 330Ω)*
    • ±15kV Air/±8kV Contact (330pF, 330Ω)*
    • Overtemperature Protection, Warning, and Intelligent Current Foldback
    • -40°C to +125°C Operating Temperature Range
Additional Details
show more Icon

The MAX20461 combines a 3A high-efficiency, automotive-grade, step-down converter, a USB Type-C/BC1.2 host charger emulator, and high-bandwidth USB protection switches for automotive USB 2.0 host applications. The device also includes a USB load current-sense amplifier and a configurable feedback-adjustment circuit that provides automatic USB voltage compensation for voltage drops in captive cables often found in automotive applications. The device limits the USB load current using both a fixed internal peak-current threshold and a user-configurable external current-sense USB load threshold.

The MAX20461 is optimized for high-frequency operation and includes programmable frequency selection from 310kHz to 2.2MHz, allowing optimization of efficiency, noise, and board space based on the application requirements. The fully synchronous DC-DC converter integrates high-side and low-side MOSFETs with an external SYNC input/output, and can be configured for spread-spectrum operation.

The MAX20461 allows flexible configuration and advanced diagnostic options for both standalone and supervised applications. The device can be programmed using either external programming resistors and/or internal I²C registers through the I²C bus.

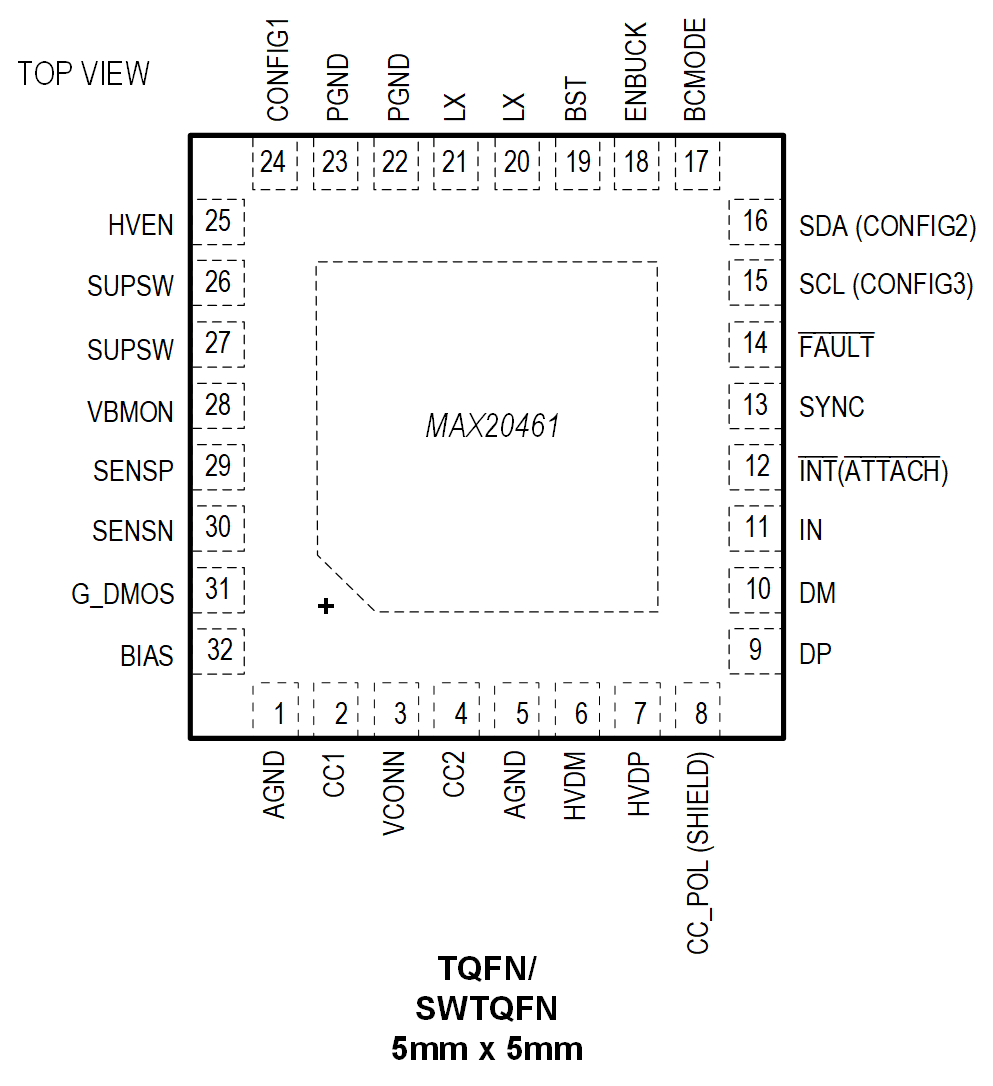

The MAX20461 is available in a small, 5mm x 5mm 32-pin TQFN package. It is designed to minimize required external components and layout area.

Applications

  • Automotive Connectivity/Telematics
  • Automotive Radio and Navigation
  • USB Port for Host and Hub Applications
Show More Arrow image
file View Data Sheet (Rev.8)
Documentation View All Documentation
Part Models 10
1ku List Price Starting From $2.13
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX20461

Documentation

1
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • All
    TickIcon
  • English
resetfilter

Reset Filters

Data Sheet

1

PDF Vector

PDF

PDF Vector

HTML

UPDATED 06/04/2024
English

MAX20461: Automotive High-Current Step-Down Converter with USB-C Protection/Host Charger Data Sheet (Rev.8)

Open PDF File

redirect
2.75 M

Open Interactive Page

redirect
download

Download PDF

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

Video

1

Thumbnail Image

Video

2022-10-04

11:13

Introduction to the MAX20461 Automotive High-Current Step-Down Converter with USB-C Protection/Host Charger

Learn More
Show More Arrow image

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX20461AATJM/V+ 32-LFCSP-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461AATJM/V+T 32-LFCSP-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461AATJM/VY+ 32-LFCSP_SS-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461AATJM/VY+T 32-LFCSP_SS-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461AATJP/V+ 32-LFCSP-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461AATJP/V+T 32-LFCSP-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461ATJA/V+ 32-LFCSP-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461ATJA/V+T 32-LFCSP-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461ATJD/V+ 32-LFCSP-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX20461ATJD/V+T 32-LFCSP-5X5X0.75 external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 25, 2022

- 2254

WAFER FAB

MAX20461AATJM/V+

PRODUCTION

MAX20461AATJM/V+T

PRODUCTION

MAX20461AATJM/VY+

PRODUCTION

MAX20461AATJP/V+

PRODUCTION

MAX20461AATJP/V+T

PRODUCTION

MAX20461ATJA/V+

PRODUCTION

MAX20461ATJA/V+T

PRODUCTION

MAX20461ATJD/V+

PRODUCTION

MAX20461ATJD/V+T

PRODUCTION

pdf

pcn_2254

external-icon

Apr 27, 2024

- 2419B

ASSEMBLY

MAX20461AATJM/VY+

PRODUCTION

MAX20461AATJM/VY+T

PRODUCTION

pdf

pcn_2419b

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Oct 25, 2022

- 2254

arrow down

WAFER FAB

MAX20461AATJM/V+

PRODUCTION

MAX20461AATJM/V+T

PRODUCTION

MAX20461AATJM/VY+

PRODUCTION

MAX20461AATJP/V+

PRODUCTION

MAX20461AATJP/V+T

PRODUCTION

MAX20461ATJA/V+

PRODUCTION

MAX20461ATJA/V+T

PRODUCTION

MAX20461ATJD/V+

PRODUCTION

MAX20461ATJD/V+T

PRODUCTION

pdf

pcn_2254

external-icon
Apr 27, 2024

- 2419B

arrow down

ASSEMBLY

MAX20461AATJM/VY+

PRODUCTION

MAX20461AATJM/VY+T

PRODUCTION

pdf

pcn_2419b

external-icon

Software & Part Ecosystem

Evaluation Kits 1

MAX20461EVKIT

Evaluation Kit for the MAX20461

zoom

MAX20461EVKIT

Evaluation Kit for the MAX20461

download icon

Download

 print icon

Print
MAX20461EVKIT
Evaluation Kit for the MAX20461

Features and Benefits

  • Configurable Charge-Detection Modes
    • USB-C 3.0A, 1.5A, 0.5A
    • USB-IF BC1.2 CDP, DCP
    • Apple 2.4A, 1.0A
    • China YD/T1591-2009 Charging Specification
  • Automatic USB Voltage Adjustment by Integrated DC-DC Converter (275kHz to 2.2MHz)
  • Proven PCB Layout
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX20461 evaluation kit (EV kit) demonstrates the MAX20461 automotive high-current, high-efficiency, step-down DC-DC converter with integrated USB Type-C DFP controller and 1GHz bandwidth USB 2.0 D+/D- protection switches, which provide ESD and short-to-battery protection for low-voltage transceivers.

The MAX20461 features integrated host-charger port-detection circuitry that adheres to the USB Type-C specification, the USB-IF BC1.2 battery-charging specification, Apple iPod/iPhone/iPad® and Samsung® charge-detection termination resistors, and Chinese Telecommunication Industry Standard YD/T 1591-2009.

The MAX20461 integrates high-side current sensing and voltage adjustment circuitry, which provides automatic USB voltage adjustment to compensate for voltage drops in captive cables associated with automotive applications.

The MAX20461 step-down, synchronous, DC-DC converter operates from a voltage of up to 28V continuous and protects against load-dump transients up to 40V. The converter is programmable for frequencies from 275kHz to 2.2MHz and can deliver 3A continuously.

The EV kit contains an I2C-enabled MAX20461. The I2C interface allows for flexible configuration, detailed fault diagnostics, and access to the on-chip ADC that reports die temperature, output voltage, and output current. The I2C features are easily accessed using the Maxim MINIQUSB module and the provided example GUI.

The EV kit is configured for 2.2MHz operation. The data switches of the MAX20461 generally do not require far-eye tuning; the EV kit is populated with shorts.

Applications

  • Automotive Connectivity/Telematics
  • Automotive Radio and Navigation
  • Dedicated USB Charging Port (DCP)
  • USB Port for Host and Hub Applications
