Data Sheet Rev. 0

Overview

Features and Benefits

  • Consumes Less Power
    • Low Battery Standby Current 5μA (typ)
  • Delivers USB Compliance and Flexibility
    • Compliant to USB Battery Charging Specification Revision 1.2
    • Data Contact Detection for Foolproof Connector Insertion Detection
    • Dedicated Charger Detection
    • Standard Downstream Port Detection
    • Charging Downstream Port Detection
    • Apple Charger Detection
  • Facilitates System Design
    • Integrated Precision 1.5A Overvoltage Protection (OVP)
    • Negative Audio Capable DPDT Hi-Speed USB Switches
    • Automatic Switch and Charger Interface Control
    • Full Control by I2C Interface
    • Interrupt for Device Status Change
  • Saves Board Space
    • VBUS Connection Capable of 36V
    • ±15kV HBM ESD Protection
    • 1.8mm x 1.9mm WLP Package

Product Details

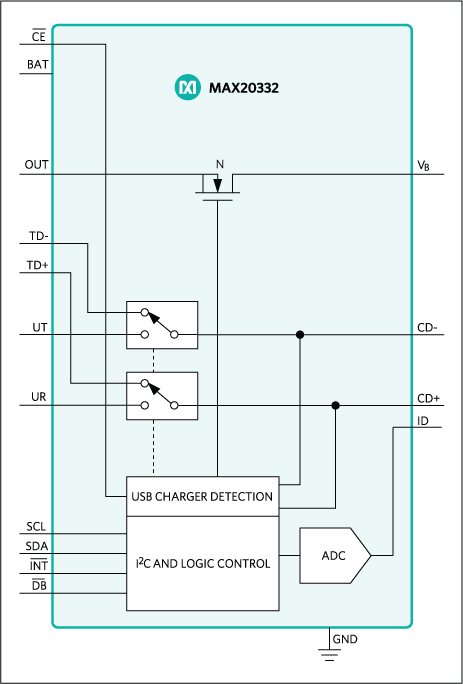

The MAX20332 is a USB charger detector compliant with USB Battery Charging Specification Revision 1.2. The USB charger detection circuitry detects USB standard downstream ports (SDPs), USB charging downstream ports (CDPs), or dedicated charger ports (DCPs), and controls an external lithium-ion (Li+) battery charger.

The device implements USB Battery Charging Specification Revision 1.2-compliant detection logic. The device also includes Apple® charger detection that allows identification of resistor-divider networks on D+/D-.

The internal double-pole double-throw (DPDT) USB switch is compliant to Hi-Speed USB, full-speed USB, low-speed USB, and UART signals. The device’s internal switch features low on-resistance, low on-resistance flatness, and very low capacitance. The ID pin controls the DPDT switch position. The MAX20332 features high-ESD protection up to ±15kV Human Body Model (HBM)on CD+, CD-, and ID pins.

The MAX20332 is available in a 16-bump, 0.4mm pitch, 1.8mm x 1.9mm wafer-level package (WLP) and operates over the -40°C to +85°C extended temperature range.

Applications

  • DSCs and Camcorders
  • e-Readers
  • Smartphones
  • Tablet PCs
