Features and Benefits
- Protects High-Power Portable Devices
- Wide Operating Input Voltage Protection Range: 2.7V to 36V
- Ultra-Fast Turn-Off Time: 100nsec
- Built-In Charge Pump to Drive External N-MOSFET
- Flexible Overvoltage Protection Design
- I2C Adjustable Overvoltage Protection Trip Level
- Wide Adjustable OVLO Threshold Range from 4V to 24V (168 steps)
- Preset Internal Accurate OVLO Thresholds: 6.8V±2%
- Additional Protection Features Increase System Reliability
- VBUS Short Detection
- Soft-Start to Minimize In-Rush Current
- Internal 15ms Startup Debounce
- Thermal Shutdown Protection
- 8 Bump 0.35mm Pitch 1.77mm x 1.03mm WLP

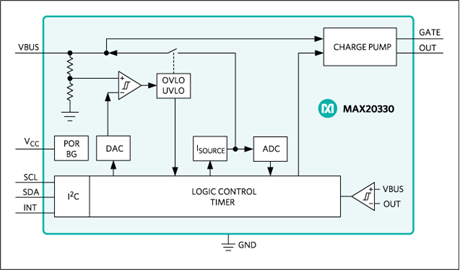

The MAX20330 is an overvoltage controller with the VBUS impedance detection function. The device drives an external low RON path for the device that requires a flexible and adjustable OVLO threshold. The VBUS impedance detection can detect the soft short on VBUS and warn the user about the potential connector overheating.
The MAX20330 is designed to drive a single or dual back-to-back external N-channel MOSFET with a low RON (10mΩ max). An external TVS can be used to protect the device from a high energy surge if necessary.
The device is available in an 8-bump (0.35mm pitch, 1.77mm x 1.03mm) wafer-level package (WLP) and operate over the -40ºC to +85°C extended temperature range.
- Smart Phones
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The MAX20330 evaluation kit (EV kit) is a fully assembled and tested circuit board that demonstrates the MAX20330 programmable OVLO with VBUS short detection device. The EV kit comes with the MAX20330EWA+ installed.
