MAX20087
RECOMMENDED FOR NEW DESIGNSDual/Quad Camera Power Protectors
Industry's Only ASIL-Grade Camera Protector with Integrated I2C-Based Diagnostics
- Part Models
- 8
- 1ku List Price
- Starting From $1.83
Part Details
- Small Solution
- Up to Four 600mA Protection Switches
- 3V to 15V Input Supply
- 3V to 5.5V Device Supply
- 26V Short-to-Battery Isolation
- Adjustable Current Limit (100mA to 600mA)
- Parallel Multiple Channels for Higher Current
- Selectable I2C Addresses

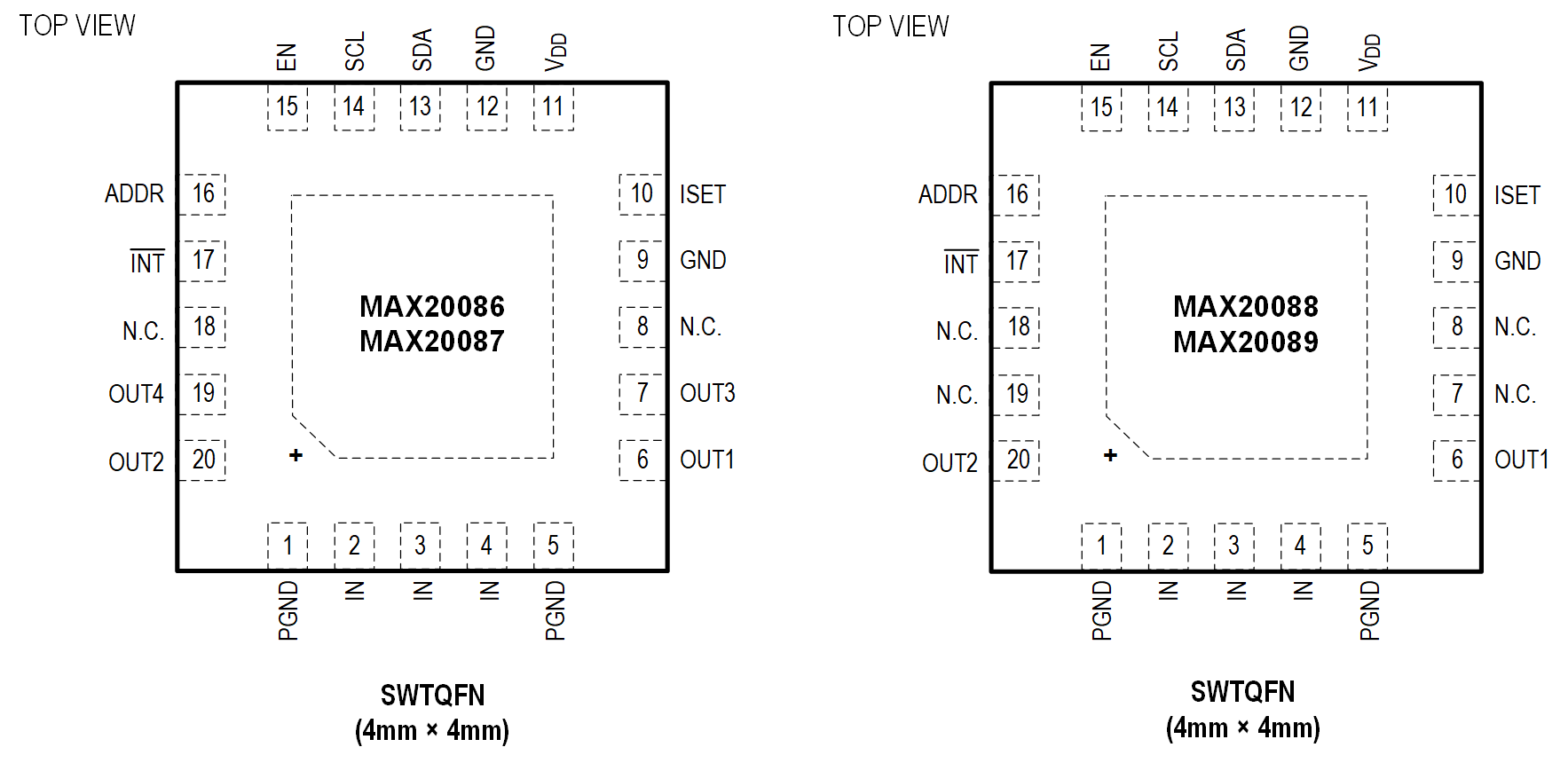

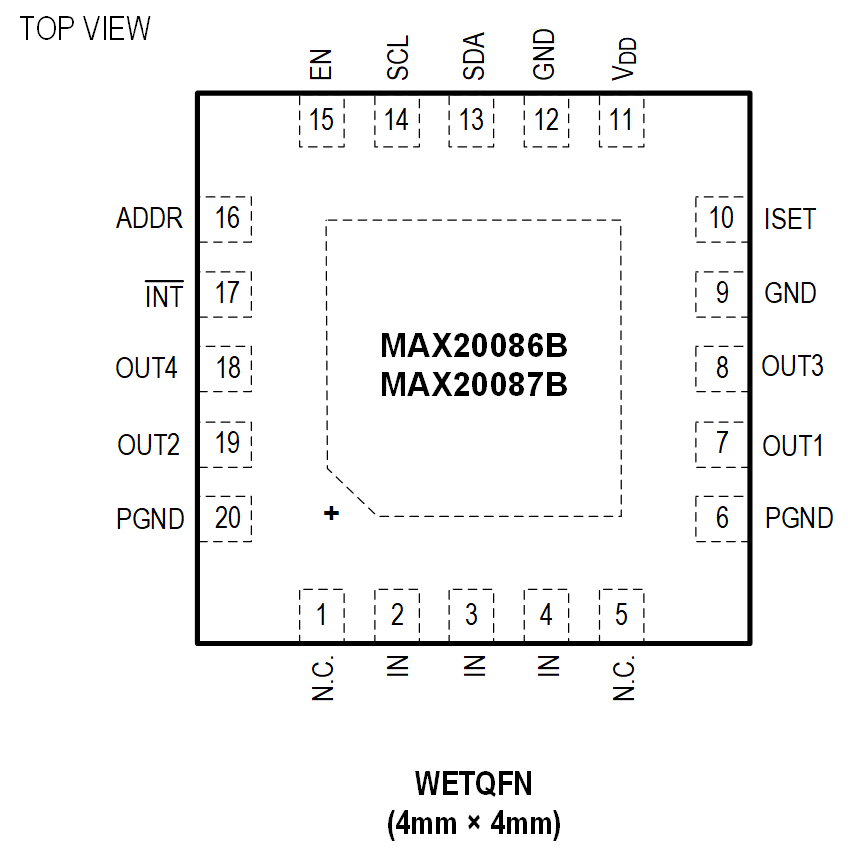

- Small (4mm x 4mm) 20-Pin SWTQFN and WETQFN Packages
- Precision
- ±8% Current-Limit Accuracy
- 0.5ms Soft-Start
- 0.25ms Soft-Shutdown
- 0.3µA Shutdown Current
- 110mV Drop at 300mA
- Designed for Safety Applications
- ASIL B/D Compliant
- Short to VBAT/GND Diagnostics
- Differential Output Over/Undervoltage Diagnostics
- Input Over/Undervoltage Diagnostics
- Individual 8-Bit Current, Output Voltage, and Supply Readings Over I2C
- Autoretry on Fault
- AEC-Q100, -40°C to +125°C
The MAX20086–MAX20089 dual/quad camera power protector ICs deliver up to 600mA load current to each of their four output channels. Each output is individually protected from short-to-battery, short-to-ground, and overcurrent conditions. The ICs operate from a 3V to 5.5V supply and with a 3V to 15V camera supply. The input-to-output voltage drop is only 110mV (typ) at 300mA.
The ICs provide an enable input and I2C interface to read the diagnostic status of the device. An on-board ADC enables reading of the current through each switch. The ASIL B- and ASIL D-compliant versions include support for reading an additional seven diagnostic measurements through the ADC, ensuring high-fault coverage.
The MAX20086–MAX20089 include overtemperature shutdown and overcurrent limiting on each output channel separately. All devices are designed to operate from -40°C to +125°C ambient temperature.
