MAX20046

PRODUCTION

Automotive Hi-Speed USB 2.0 Protector

Tiny Solution for Module-to-Module Connections with Best-in-Class Eye Diagram and Integrated Protection

Data Sheet (Rev. 3) Product Selection Table

Part Models: 10
1ku List Price: Starting From $1.26

Viewing:

Overview

Low 23mA/45mA (MAX20046GTCA/V+) or 60/120mA (MAX20046GTCC/V+) Current Threshold for Module-to-Module Applications
Targeted Features for Optimized USB Performance
- Two R_ON 3.3Ω (typ) USB 2.0 Data Switches
- 480Mbps, 12Mbps or 1.5Mbps USB 2.0 Operation
- 9ms Fault-Recovery Time
- 1ms Overcurrent Blanking Time
- 5.7V (typ) Fixed HVBUS Protection Trip Threshold
Robust for the Automotive Environment
- Short-to-Battery and Short-to-GND Protection on Protected HVBUS Output
- Short-to-Battery and Short-to-HVBUS Protection on HVD+ and HVD- Outputs
- Tested to ISO 10605 and IEC 61000-4-2 ESD Standards
- 12-Pin (3mm × 3mm) TQFN-EP Package
- -40°C to +105°C Operating Temperature Range
- AEC-Q100 Qualified

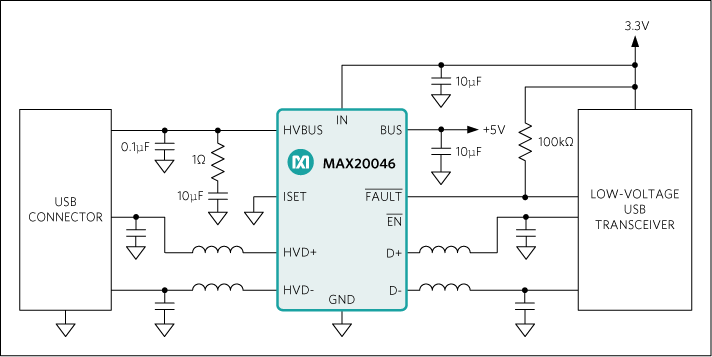

The MAX20046 device provides high-ESD and short-circuit protection for the low-voltage internal USB data and USB power line in automotive radio, navigation, connectivity, and USB hub applications. The device supports USB Hi-Speed (480Mbps), USB full-speed (12Mbps), and USB low-speed (1.5Mbps) operation.

The short-circuit protection features include short-to-battery on the protected HVBUS, as well as short-to-HVBUS and short-to-battery on the protected HVD+ and HVD-. Short-to-GND and overcurrent protection are also provided on the protected HVBUS output to protect the internal BUS power rail from overcurrent faults.

The device features high-ESD protection to ±15kV Air Gap and ±8kV Contact on the protected HVBUS, HVD+, and HVD- outputs.

The device features a 500mΩ (max) USB power switch, and two low on-resistance (R_ON), USB 2.0 data switches. This device also features an enable input, fault output, 10ms fault-recovery time, 1ms overcurrent-blanking time, and integrated overcurrent autoretry.

The MAX20046 is available in a 12-pin lead-free, TQFN-EP package and operate over the -40°C to +105°C temperature range.

Applications

Automotive USB Protection

Part Models: 10
1ku List Price: Starting From $1.26

Documentation

Data Sheet 1

MAX20046: Automotive Hi-Speed USB 2.0 Protector Data Sheet (Rev.3) 03/23/2020

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX20046AGTC/V+	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046AGTC/V+T	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046GTC/V+	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046GTC/V+T	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046GTC/VY+	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046GTC/VY+T	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046GTCA/V+	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046GTCA/V+T	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046GTCA/VY+	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX20046GTCA/VY+T	LFCSP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 27, 2024 - 2400 ASSEMBLY
		pcn_2400
MAX20046AGTC/V+	PRODUCTION
MAX20046AGTC/V+T	PRODUCTION
MAX20046GTC/V+	PRODUCTION
MAX20046GTC/V+T	PRODUCTION
MAX20046GTC/VY+	PRODUCTION
MAX20046GTC/VY+T	PRODUCTION
MAX20046GTCA/V+	PRODUCTION
MAX20046GTCA/V+T	PRODUCTION
Apr 23, 2024 - 2419N ASSEMBLY
		pcn_2419n
MAX20046AGTC/V+	PRODUCTION
MAX20046AGTC/V+T	PRODUCTION
Apr 27, 2024 - 2419B ASSEMBLY
		pcn_2419b
MAX20046GTC/V+	PRODUCTION
MAX20046GTC/V+T	PRODUCTION
MAX20046GTCA/V+	PRODUCTION
MAX20046GTCA/V+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Evaluation Kits

Evaluation Kit for the MAX20046

Buy Now View Details

Features and Benefits

Protects USB BUS, D+, and D- Signals from Overvoltages Up to 18V and ESD Events
USB BUS Undervoltage Lockout
23mA/45mA (typ) USB BUS Overcurrent-Protection Threshold
1ms Overcurrent Blanking Time
Passes 480Mbps USB Data Signals
Low On-Resistance
- BUS: 500mΩ (max)
- D+ and D-: 3.3Ω (typ)
Active-Low FAULT Output Signal
USB Powered
Fully Assembled and Tested
Evaluates the MAX20046 IC in a 12-Pin TQFN Package

Product Details

The MAX20046 evaluation kit (EV kit) demonstrates the MAX20046 automotive Hi-Speed USB 2.0 protector switch IC, featuring overvoltage protection (OVP), electrostatic discharge (ESD) protection, and undervoltage lockout (UVLO)/overcurrent protection (OCP) for automotive USB applications.

The device protects the USB BUS, D+, and D- data lines from overvoltage conditions, such as a short-to-battery and ESD events. UVLO protects the BUS against lowvoltage conditions such as a short-to-ground. The BUS OCP uses a blanking period allowing momentary BUS shorts to be ignored. All faults can be monitored using the active-low FAULT output signal.

The device can pass high-speed USB differential (D+ and D-) signals up to 480Mbps and has a low 500mΩ R_ON (max) for the BUS and a 3.3Ω R_ON (typ) for the D+ and D- lines. The EV kit is powered by the USB BUS. An on-board MAX15007A automotive regulator provides the IN reference voltage. If a 60mA/120mA current threshold is desired, the MAX20046GTC/V+ can be ordered and interchanged with U1.

Applications

Automotive USB Protection

Resources

MAX20046EVKIT Gerber File - Design Files
10/27/2023
