Overview

Features and Benefits

  • Reverse Battery Protection for DC-DC Converter and Load
  • Up to 90% Efficiency
  • No External Diode or FETs Needed
  • Internal Synchronous Rectifier
  • 4µA Quiescent Current
  • <1µA Shutdown Supply Current
  • +1.5V to +5.5V Input Voltage Range
  • Accurate active-low SHDN Threshold for Low-Battery Cutoff
  • BATT Connected to OUT in Shutdown for Backup Power (MAX1832/MAX1833)
  • RST-bar Output (MAX1833/MAX1835)
  • Fixed 3.3V/3.0V Output Voltage
  • Adjustable Output Voltage (MAX1832/MAX1834)
  • Up to 150mA Output Current
  • Tiny 6-Pin SOT23 Package
  • Tiny 6-Pin Thin QFN Package (MAX1833ETT30)

Product Details

The MAX1832-MAX1835 are high-efficiency step-up converters with complete reverse battery protection that protects the device and the load when the battery is reversed. They feature a built-in synchronous rectifier, which allows for over 90% efficiency and reduces size and cost by eliminating the need for an external Schottky diode.

These step-up converters operate from a +1.5V to +5.5V input voltage range and deliver up to 150mA of load current. The MAX1833EUT/MAX1835EUT (SOT devices) have a fixed 3.3V output voltage. The MAX1833ETT30 (TDFN device) has a fixed 3.0V output voltage. The MAX1832/MAX1834 have adjustable outputs from +2V to +5.5V. In shutdown, the MAX1832/MAX1833 connect the battery input to the voltage output, allowing the input battery to be used as a backup or real-time clock supply when the converter is off (see Selector Guide).

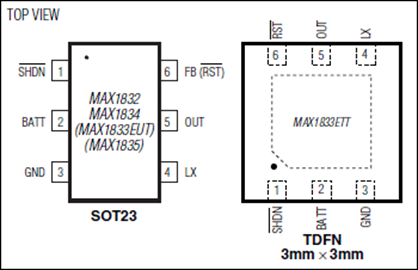

MAX183_EUT devices are available in a miniature 6-pin SOT23 package. The MAX1833ETT30 is available in a 3mm x 3mm thin DFN package. The MAX1832EVKIT is available to speed designs.

Applications

  • Battery Backup
  • Cordless Phones
  • Digital Cameras
  • Handheld Instruments
  • Local 3.3V to 5V Supplies
  • Medical Diagnostic Equipment
  • Pagers
  • PC Cards
  • Remote Wireless Transmitters

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
