Overview

Features and Benefits

  • +3.5V to +16.5V Operating Supply Voltage Range
  • Output Voltage Regulated to VCC + 11V (typ)
  • 150µA (typ) Quiescent Current
  • Power-Ready Output

Product Details

The MAX1822 high-side supply, using a regulated charge pump, generates a regulated output voltage 11V greater than the input supply voltage to power high-side switching and control circuits. The MAX1822 allows low-resistance N-channel MOSFETs (FETs) to be used in circuits that normally require costly, less efficient P-channel FETs and PNP transistors. The high-side output also eliminates the need for logic FETs in +5V and other low-voltage switching circuits.

A +3.5V to +16.5V input supply range and a typical quiescent current of only 150µA make the MAX1822 ideal for a wide range of line- and battery-powered switching and control applications where efficiency is crucial. Also provided is a logic-level power-ready output (PR) to indicate when the high-side voltage reaches the proper level.

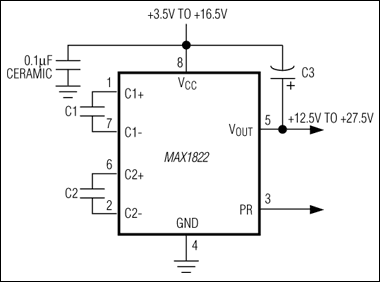

The MAX1822 comes in an 8-pin SO package and requires three inexpensive external capacitors. The MAX1822 is a pin-for-pin replacement to the MAX622.

Applications

  • Battery Management
  • H-Switches
  • High-Side Power Control with N-Channel FETs
  • Low-Dropout Voltage Regulators
  • Portable Computing
  • Power Switching from Low Supply Voltages
  • Stepper Motor Drivers
