MAX1818

500mA, Low-Dropout Linear Regulator in SOT23

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon
Part Details

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.3)
Documentation View All Documentation
Part Models 9
1ku List Price Starting From $1.37
Features
  • Guaranteed 500mA Output Current
  • Low 120mV Dropout at 500mA
  • ±1% Output Voltage Accuracy
    • Preset at 1.5V, 1.8V, 2.0V, 2.5V, 3.3V, 5V
    • Adjustable from 1.25V to 5.0V
  • Power OK Output
  • Low 125µA Ground Current
  • 0.1µA Shutdown Current
  • Thermal Overload Protection
  • Output Current Limit
  • Tiny 800mW 6-Pin SOT23 Package
Additional Details
show more Icon

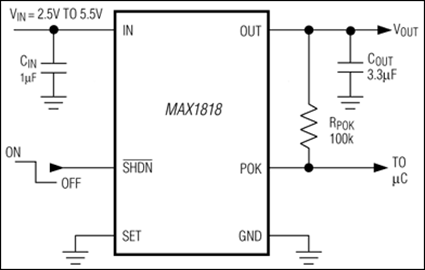

The MAX1818 low-dropout linear regulator operates from a +2.5V to +5.5V supply and delivers a guaranteed 500mA load current with low 120mV dropout. The high-accuracy (±1%) output voltage is preset at an internally trimmed voltage (see Selector Guide in the full data sheet) or can be adjusted from 1.25V to 5.0V with an external resistive divider.

An internal PMOS pass transistor allows the low 125µA supply current to remain independent of load, making this device ideal for portable battery-operated equipment such as personal digital assistants (PDAs), cellular phones, cordless phones, base stations, and notebook computers.

Other features include an active-low open-drain reset output that indicates when the output is out of regulation, a 0.1µA shutdown, short-circuit protection, and thermal shutdown protection. The device is available in a miniature 800mW 6-pin SOT23 package.

Applications

  • Cell Phones/Cordless Phones
  • Docking Stations
  • Notebook Computers
  • Palmtop Computers
  • PDAs and Other Handheld Devices
  • USB Hubs
  • Wireless Base Stations
Show More Arrow image
file View Data Sheet (Rev.3)
Documentation View All Documentation
Part Models 9
1ku List Price Starting From $1.37
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

MAX1818

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Reliability Data
  • Data Sheet
  • Design Note
  • All
    TickIcon
  • English
  • Chinese
  • Japanese
resetfilter

Reset Filters

Data Sheet

3

PDF Vector

PDF

UPDATED 08/18/2008
English

MAX1818: 500mA, Low-Dropout Linear Regulator in SOT23 Data Sheet (Rev.3)

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 01/01/1900
Chinese

MAX1818: 500mA、低压差线性稳压器，SOT23封装 Data Sheet

Open PDF File

redirect
1.00M
download

Download PDF

PDF Vector

PDF

UPDATED 03/06/2012
Japanese

MAX1818: 500mA、低ドロップアウト、リニアレギュレータ、SOT23 Data Sheet (Rev.2)

Open PDF File

redirect
343.00K
download

Download PDF

Reliability Data

1

PDF Vector

PDF

UPDATED 01/12/2023
English
MAX1818 Reliability Data redirect icon

92.51K

download

Download PDF

Design Note

1

PDF Vector

HTML

UPDATED 06/03/2009
English
Using a Linear Regulator to Produce a Constant Current Source redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon
Documentation

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX1818EUT15+ 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX1818EUT15+T 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX1818EUT18+T 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX1818EUT25+ 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX1818EUT25+T 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX1818EUT33+ 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX1818EUT33+T 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX1818EUT50+ 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
MAX1818EUT50+T 6-SOT_23-N/A external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

MAX1818EVKIT

Evaluation Kit for the MAX1818EUT15, MAX1818EUT18, MAX1818EUT20, MAX1818EUT25, MAX1818EUT33, MAX1818EUT50

zoom

MAX1818EVKIT

Evaluation Kit for the MAX1818EUT15, MAX1818EUT18, MAX1818EUT20, MAX1818EUT25, MAX1818EUT33, MAX1818EUT50

download icon

Download

 print icon

Print
MAX1818EVKIT
Evaluation Kit for the MAX1818EUT15, MAX1818EUT18, MAX1818EUT20, MAX1818EUT25, MAX1818EUT33, MAX1818EUT50

Features and Benefits

  • +2.5V to +5.5V Input Voltage Range
  • Up to 500mA Output Current
  • Output Voltage
    • +1.8V Fixed Output Voltage (MAX1818EUT18)
    • +1.25 to +5.0V Adjustable Output Voltage (External Divider)
  • Power-OK Output
  • 6-Pin SOT23 Package
  • Surface-Mount Construction
  • Fully Assembled and Tested
Buy Now View Details

Product Detail

The MAX1818 linear regulator evaluation kit (EV kit) provides a regulated +1.8V output voltage from a +2.5V to +5.5V input source. It delivers up to 500mA output current.

The EV kit is a fully assembled and tested surface-mount PC board. It can also evaluate other preset voltages and other output voltages in the +1.25V to +5.0V range by using external resistors.

Evaluation Kits1

MAX1818EVKIT

Evaluation Kit for the MAX1818EUT15, MAX1818EUT18, MAX1818EUT20, MAX1818EUT25, MAX1818EUT33, MAX1818EUT50
