MAX1817

PRODUCTION

Compact, High-Efficiency, Dual-Output, Step-Up DC-DC Converter

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $2.30

Viewing:

Overview

Dual Step-Up Converter in a Tiny 10-Pin µMAX Package
Main Output
- Up to 125mA Load Current
- Fixed 3.3V or Adjustable 2.5V to 5.5V
- Up to 88% Efficiency
- Internal Switch
LCD Output
- Up to 28V for LCD Bias
- Internal Switch
Input Voltage Range +1.5V to +5.5V
Minimal External Components Required
0.1µA Logic-Controlled Shutdown
Low 15µA Quiescent Supply Current

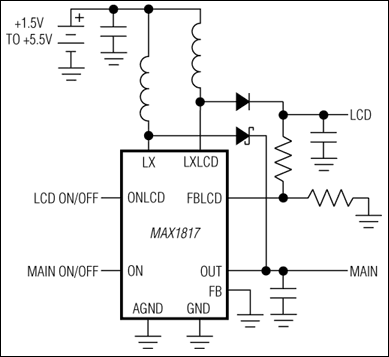

The MAX1817 is a compact, high-efficiency, dual-output step-up converter for portable devices that provides both the main logic supply and the LCD bias. The device operates from an input voltage of +1.5V to +5.5V, allowing the use of 2- or 3-cell alkaline batteries, or 1-cell lithium-ion (Li+) batteries.

The MAX1817's main regulator supplies 125mA at either a preset 3.3V or an adjustable 2.5V to 5.5V output voltage with up to 88% efficiency. A 0.1µA shutdown state also minimizes battery drain. The MAX1817's secondary step-up converter provides the LCD bias voltage and is adjustable up to +28V.

Other features include a fast switching frequency to reduce the size of external components and a low quiescent current to maximize battery life. Both outputs can be independently shut down for improved flexibility.

The MAX1817 is supplied in a compact 10-pin µMAX package. The MAX1817 evaluation kit (MAX1817EVKIT) is available to speed up design.

Applications

GPS Receivers
MP3 Players
Organizers/Translators
PDAs

Part Models: 2
1ku List Price: Starting From $2.30

Documentation

Data Sheet 1

MAX1817: Compact, High-Efficiency, Dual-Output, Step-Up DC-DC Converter Data Sheet (Rev.0) 02/07/2001

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX1817EUB+	10-MINI_SO-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX1817EUB+T	10-MINI_SO-N/A	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
