Features and Benefits

  • Dual USB Switch in Tiny 10-Pin µMAX Package
  • Guaranteed 500mA Load per Channel
  • Built-In 20ms Fault Blanking
  • Compliant to USB Specifications
  • +4.0V to +5.5V Input Voltage Range
  • 45µA Quiescent Current
  • 3µA Shutdown Current
  • Independent Shutdown Control
  • Independent active-low FAULT Indicator Outputs
  • Thermal-Overload Protection

Product Details

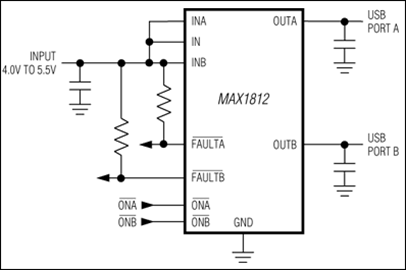

The MAX1812 is a dual current-limited switch specifically made for USB applications. Each channel is guaranteed to supply 500mA and meets USB specifications. The MAX1812's low quiescent supply current (45µA) and shutdown current (3µA) conserve battery power in portable applications.

The MAX1812 has multiple safety features to ensure that the USB port is protected. Built-in thermal-overload protection limits power dissipation and junction temperature. The device also has accurate internal current-limiting circuitry to protect the input supply against both overload and short-circuit conditions. Independent fault signals (active-low FAULTA and active-low FAULTB) notify the microprocessor when a thermal-overload, current limit, undervoltage lockout, or short-circuit fault occurs. A 20ms fault-blanking feature enables the circuit to ignore momentary faults, such as those caused when hot-swapping a capacitive load, thereby preventing false alarms to the host system.

The MAX1812 is available in a space-saving 10-pin µMAX package. For single versions of this device, refer to the MAX1693, MAX1694, and MAX1607 data sheets.


  • Computers: Desktop, Workstation, Server
  • Docking Stations
  • Notebook Computers
  • PDAs and Palmtop Computers
  • USB Hubs
  • USB Ports

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAX1812EUB+ Material Declaration Reliability Data 10-MINI_SO-N/A
MAX1812EUB+T Material Declaration Reliability Data 10-MINI_SO-N/A
Wafer Fabrication Data MAX1812 Reliability Data
