Overview

Features and Benefits

  • Guaranteed 500mA Output Current
  • Output Down to 0.8V
  • Low 175mV Dropout at 500mA
  • ±1% Output Voltage Accuracy
    • Preset at 0.8V, 1.5V, 1.8V, 2.5V, or 3.3V
    • Adjustable from 0.8V to 4.5V
  • Power-OK Output
  • Low 210µA Ground Current
  • 0.02µA Shutdown Current
  • Thermal Overload Protection
  • Output Current Limit
  • Tiny 1.3W, 8-Pin Power-µMAX Package
  • -40°C to +85°C Temperature Range

Product Details

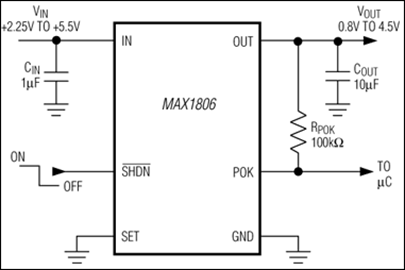

The MAX1806 low-dropout linear regulator operates from a +2.25V to +5.5V supply and delivers a guaranteed 500mA load current with low 175mV dropout. The high-accuracy (±1%) output voltage is preset at an internally trimmed voltage (see Selector Guide) or can be adjusted from +0.8V to +4.5V with an external resistive-divider.

An internal PMOS pass transistor allows low 210µA supply current, making this device ideal for portable equipment such as personal digital assistants (PDAs), cellular phones, cordless phones, and other equipment, including base stations and docking stations.

Other features include an active-low, power-OK output that indicates when the output is out of regulation, a 0.02µA shutdown mode, short-circuit protection, and thermal shutdown protection. The MAX1806 comes in a miniature 1.3W, 8-pin power-µMAX® package with a metal pad on the underside of the package.

Applications

  • Cell Phones/Cordless Phones
  • Docking Stations
  • Notebook Computers
  • Palmtop Computers
  • PDAs
  • USB Hubs
  • Wireless Base Stations

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
MAX1806EUA08+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA08+T Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA15+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA15+T Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA18+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA18+T Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA25+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA25+T Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA33+ Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
MAX1806EUA33+T Material Declaration Reliability Data Micro-MAX, Thin Shrink Small-Outline, Exposed Pad
Wafer Fabrication Data MAX1806 Reliability Data
