MAX1792

PRODUCTION

500mA, Low-Dropout Linear Regulator in µMAX

0.5A LDO Has Only 130mV Dropout Voltage, Fits in 1.3W Power µMAX Package

Data Sheet (Rev. 2) Product Selection Table

Part Models: 14
1ku List Price: Starting From $1.37

Viewing:

Part Details

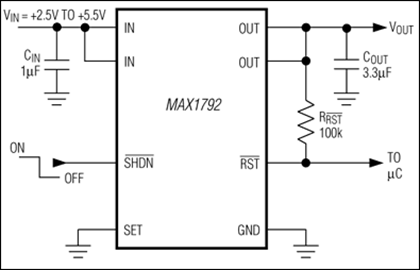

Guaranteed 500mA Output Current
Low 130mV Dropout at 500mA
Up to ±1% Output Voltage Accuracy
- Preset at 1.5V, 1.8V, 2.5V, 3.3V, or 5.0V
- Adjustable from 1.25V to 5.0V
Reset Output with 4ms Timeout Period
Low 80µA Ground Current
0.1µA Shutdown Current
Thermal Overload Protection
Output Current Limit
Tiny 1.3W Power-µMAX Package

Part Models: 14
1ku List Price: Starting From $1.37

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX1792EUA15+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA15+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA18+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA18+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA18/V+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA18/V+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA25+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA25+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA25/V+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA25/V+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA33+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA33+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA50+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys
MAX1792EUA50+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN
No Match Found
Sep 19, 2018 - 1753N ASSEMBLY
		pcn_1753n
MAX1792EUA15+	PRODUCTION
MAX1792EUA15+T	PRODUCTION
MAX1792EUA50+	PRODUCTION
MAX1792EUA50+T	PRODUCTION
Jan 17, 2018 - 1721G ASSEMBLY
		pcn_1721g
MAX1792EUA18/V+	PRODUCTION
MAX1792EUA18/V+T	PRODUCTION
Feb 13, 2014 - 1374 ASSEMBLY
		pcn_1374
MAX1792EUA18/V+	PRODUCTION
MAX1792EUA18/V+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Positive Linear Regulators (LDO) 3
MAX603	PRODUCTION	5V/3.3V or Adjustable, Low-Dropout, Low-I_Q, 500mA Linear Regulators
MAX604	PRODUCTION	5V/3.3V or Adjustable, Low-Dropout, Low-I_Q, 500mA Linear Regulators
MAX1793	PRODUCTION	Low-Dropout, Low-I_Q, 1A Linear Regulator
