MAX17067

PRODUCTION

Low-Noise Step-Up DC-DC Converter

Compact, High-Efficiency Boost Converter

Data Sheet (Rev. 0) Product Selection Table

Part Models: 2
1ku List Price: Starting From $4.55

Viewing:

Overview

90% Efficiency
Adjustable Output from V_IN to 18V
2.4A, 0.15Ω, 22V Power MOSFET
+2.6V to +4.0V Input Range
Pin-Selectable 640kHz or 1.2MHz Switching Frequency
Programmable Soft-Start
Small 8-Pin µMAX Package
Integrated Input Voltage Clamp Circuit

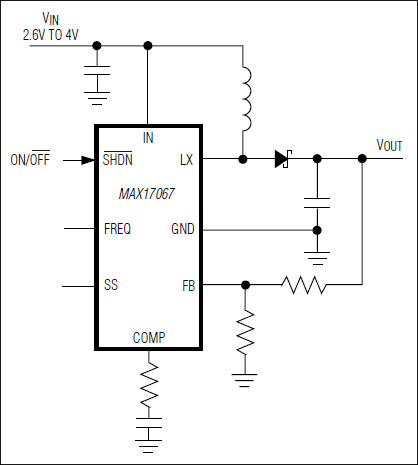

The MAX17067 boost converter incorporates high-performance (at 1.2MHz), current-mode, fixed-frequency, pulse-width modulation (PWM) circuitry with a built-in 0.15Ω n-channel MOSFET to provide a highly efficient regulator with fast response.

High switching frequency (640kHz or 1.2MHz selectable) allows for easy filtering and faster loop performance. An external compensation pin provides the user flexibility in determining loop dynamics, allowing the use of small, low equivalent-series-resistance (ESR) ceramic output capacitors. The device can produce an output voltage as high as 18V.

Soft-start is programmed with an external capacitor, which sets the input-current ramp rate. The MAX17067 is available in a space-saving 8-pin µMAX® package. The ultra-small package and high switching frequency allow the total solution to be less than 1.1mm high.

Applications

LCD Displays

Part Models: 2
1ku List Price: Starting From $4.55

Documentation

Data Sheet 1

MAX17067: Low-Noise Step-Up DC-DC Converter Data Sheet (Rev.0) 02/14/2008

Reliability Data 1

MAX17067 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX17067EUA+	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX17067EUA+T	Micro-MAX, Thin Shrink Small-Outline	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 19, 2018 - 1753N ASSEMBLY
		pcn_1753n
MAX17067EUA+	PRODUCTION	pcn_1753n

This is the most up-to-date revision of the Data Sheet.
