MAX16999

PRODUCTION

Ultra-Low Output Voltage, Low-Quiescent-Current Linear Regulator for High-Temperature Applications

Low 13µA Quiescent-Current Linear Regulator Delivers Up to 100mA

Data Sheet (Rev. 2) Product Selection Table

Part Models: 6
1ku List Price: Starting From $1.40

Viewing:

Overview

Preset 0.5V to 3.3V Output Voltage Range
Up to 100mA Output Current at T_A = +125°C
13µA Quiescent Current
Logic-Controlled Enable
Adjustable POR Delay Flag
Short to GND Protection on Reset Timer
Used in Parallel with High-Current Supply of Equal Voltages
Thermal-Overload and Short-Circuit Protection
Tiny 8-Pin µMAX® Package with Exposed Pad

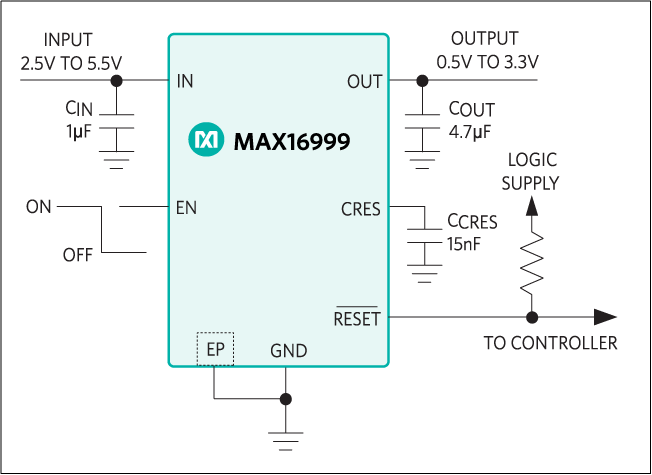

The MAX16999 linear regulator operates from a 2.5V to 5.5V input voltage and delivers 100mA continuous load current with a low quiescent current typically around 13µA. The output voltage is preset to internally trimmed voltages in the 0.5V to 3.3V range (see the Selector Guide in the full data sheet). An active-low, open-drain reset output remains low for a programmable timeout delay after the output voltage reaches regulation. The reset timeout is programmed by an external capacitor connected to CRES.

This device also features logic-controlled shutdown, and short-circuit and thermal-overload protection. The typical applications are multimedia, telematics, and motor control microcontrollers (µCs) with always-on requirements. The MAX16999 is used as a parallel, low-quiescent supply to power the core or interrupt section of µCs during sleep mode. It can also be used to supply a timer or memory during µC shutoff. The adjustable POR delay assists with power-supply sequencing.

Applications

Handheld/Portable Devices
Industrial
Keep-Alive Timers
SDRAM Power Supplies

Part Models: 6
1ku List Price: Starting From $1.40

Documentation

Data Sheet 1

MAX16999: Ultra-Low Output Voltage, Low-Quiescent-Current Linear Regulator for High-Temperature Applications Data Sheet (Rev.2) 03/06/2015

Reliability Data 1

MAX16999 Reliability Data 01/12/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
MAX16999AUA09+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX16999AUA09+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX16999AUA12+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX16999AUA15+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX16999AUA15+T	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
MAX16999AUA18+	Micro-MAX, Thin Shrink Small-Outline, Exposed Pad	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Sep 19, 2018 - 1753N ASSEMBLY
		pcn_1753n
MAX16999AUA09+	PRODUCTION
MAX16999AUA09+T	PRODUCTION
MAX16999AUA15+	PRODUCTION
MAX16999AUA15+T	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
LDO Linear Regulators 6
MAX5084	PRODUCTION	65V, 200mA, Low-Quiescent-Current Linear Regulators in TDFN
MAX5085	PRODUCTION	65V, 200mA, Low-Quiescent-Current Linear Regulators in TDFN
MAX5086	PRODUCTION	45V, 250mA, Low-Quiescent-Current Linear Regulator with Adjustable Reset Delay
MAX5087	PRODUCTION	45V, 400mA, Low-Quiescent-Current Linear Regulator with Adjustable Reset Delay

MAX5023	PRODUCTION	65V, Low-Quiescent-Current, High-Voltage Linear Regulators with µP Reset and Watchdog Timer
MAX5024	PRODUCTION	65V, Low-Quiescent-Current, High-Voltage Linear Regulators with µP Reset and Watchdog Timer
