MAX16952

36V, 2.2MHz Step-Down Controller with Low Operating Current

Show More showmore-icon

Industry's First Automotive Grade Synchronous Step-Down Controller that Operates above the AM Radio Band

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 4
1ku List Price Starting From $2.85
Features
  • Meets Stringent Automotive Quality and Reliability Requirements
    • +3.5V to +36V Input Voltage Range Allows Operation in "Cold Crank" Conditions
    • High Duty Cycle During Undervoltage Transients
    • Tolerates Input-Voltage Transients to +42V
    • Enable-Pin Compatible from +3.3V Logic Level to +42V
    • Current-Limit, Thermal Shutdown, and Overvoltage Protection
    • -40°C to +125°C Automotive Temperature Range
    • AEC-Q100 Qualified
  • Increased Efficiency and Reduced BOM Cost and Board Space
    • Lowest BOM Count for Current-Mode-Control Architecture
    • 16-Pin TSSOP-EP Packages
  • Low Quiescent Current Helps Designers Meet Stringent OEM Current Requirements
    • 50µA Quiescent Current During Skip Mode Operation
  • High Switching Frequency Allows Use of Small, Low-Cost External Components
    • 1MHz to 2.2MHz Adjustable Switching Frequency
    • 2.1MHz Switching Frequency with Three Modes of Operation
    • Skip Mode for Efficient, Low-Power Operation
    • Forced Fixed-Frequency Operation
    • External Frequency Synchronization
  • Adjustable Output Voltage Supports a Diverse Range of Applications
    • 1V to 10V Output Voltage with ±2% Accuracy
Additional Details
show more Icon

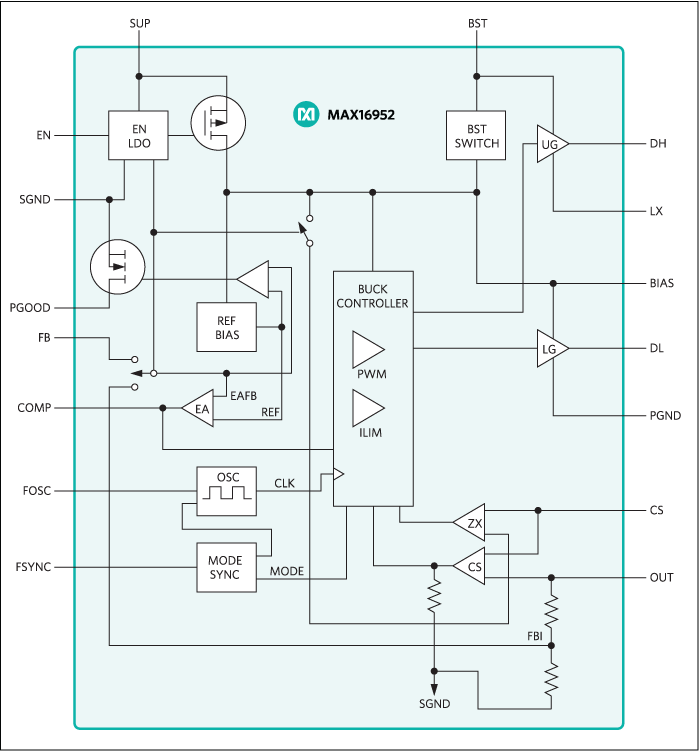

The MAX16952 is a current-mode, synchronous PWM step-down controller designed to operate with input voltages from 3.5V to 36V while using only 50µA of quiescent current at no load. The switching frequency is adjustable from 1MHz to 2.2MHz by an external resistor and can be synchronized to an external clock up to 2.4MHz. The MAX16952 output voltage is pin programmable to be either 5V fixed or adjustable from 1V to 10V. The wide input voltage range, along with its ability to operate in dropout during undervoltage transients, makes it ideal for automotive and industrial applications.

The MAX16952 operates in fixed-frequency PWM mode and low quiescent current skip mode. It features an enable logic input, which is compatible up to 42V to disable the device and reduce its shutdown current to 10µA. Protection features include overcurrent limit, overvoltage, undervoltage, and thermal shutdown with automatic recovery. The device also features a power-good monitor to ease power-supply sequencing.

The MAX16952 is available in a thermally enhanced 16-pin TSSOP package with exposed pad, and is specified for operation over the -40°C to +125°C automotive temperature range.

Applications

  • Automotive
  • Industrial
  • Military
  • Point of Load
Part Models 4
1ku List Price Starting From $2.85

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX16952AUE+
  • HTML
  • HTML
MAX16952AUE+T
  • HTML
  • HTML
MAX16952AUE/V+
  • HTML
  • HTML
MAX16952AUE/V+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 11, 2022

- 2236N

ASSEMBLY

MAX16952AUE+

PRODUCTION

MAX16952AUE+T

PRODUCTION

Oct 31, 2019

- 2000

ELECTRICAL DATASHEET

MAX16952AUE+

PRODUCTION

MAX16952AUE+T

PRODUCTION

MAX16952AUE/V+

PRODUCTION

MAX16952AUE/V+T

PRODUCTION

Dec 11, 2018

- 1754N

ASSEMBLY

MAX16952AUE+

PRODUCTION

MAX16952AUE+T

PRODUCTION

Jul 13, 2022

- 2236A

ASSEMBLY

MAX16952AUE/V+

PRODUCTION

MAX16952AUE/V+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 11, 2022

- 2236N

arrow down

ASSEMBLY

MAX16952AUE+

PRODUCTION

MAX16952AUE+T

PRODUCTION

Oct 31, 2019

- 2000

arrow down

ELECTRICAL DATASHEET

MAX16952AUE+

PRODUCTION

MAX16952AUE+T

PRODUCTION

MAX16952AUE/V+

PRODUCTION

MAX16952AUE/V+T

PRODUCTION

Dec 11, 2018

- 1754N

arrow down

ASSEMBLY

MAX16952AUE+

PRODUCTION

MAX16952AUE+T

PRODUCTION

Jul 13, 2022

- 2236A

arrow down

ASSEMBLY

MAX16952AUE/V+

PRODUCTION

MAX16952AUE/V+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 1

MAX16952EVKIT

Evaluation Kit for the MAX16952

zoom

MAX16952EVKIT

Evaluation Kit for the MAX16952

Evaluation Kit for the MAX16952

Features and Benefits

  • 6V to 36V Input Range
  • 5V at Up to 5A Output
  • 2.2MHz Switching Frequency
  • Selectable Forced Fixed-Frequency PWM Mode, SKIP Mode, or External Synchronization
  • Power-Good LED Indicator
  • Enable Input
  • Cycle-by-Cycle Current Limit and Thermal Protection
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Detail

The MAX16952 evaluation kit (EV kit) is a fully assembled and tested PCB that contains all the components necessary to evaluate the performance of the MAX16952 synchronous PWM step-down controller. The device is available in a 16-pin TSSOP package and features an exposed pad for enhanced thermal dissipation.
The EV kit requires a 6V to 36V power supply for normal operation. The EV kit output is configured to 5V and can deliver up to 5A output current. The EV kit can be easily reconfigured to operate the controller in continuous PWM mode, SKIP mode, or external synchronization operation. The controller switching frequency is set to 2.2MHz. The EV kit includes a jumper to enable the circuit and an LED to monitor the power-good output.

Applications

  • Automotive
  • Industrial
  • Military
  • Point of Load
