MAX16945

30mA Inverting Charge Pump in SOT23 for EMI-Sensitive Automotive Applications

Show More showmore-icon

Low-EMI, Automotive-Qualified Charge Pump in SOT23 Package that Operates at 105°C

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.2)
Documentation View All Documentation
Part Models 4
1ku List Price Starting From $2.13
Features
  • +1.4V to +5.5V Input Voltage Range
  • 30mA Guaranteed Output Current at +105°C
  • Slew-Rate Limited to Reduce EMI
  • 0.1µA Logic-Controlled Shutdown
  • Low 12Ω Output Resistance
  • Startup Current Limited
  • 6-Pin SOT23 Package
  • AEC-Q100 Qualified
Additional Details
show more Icon

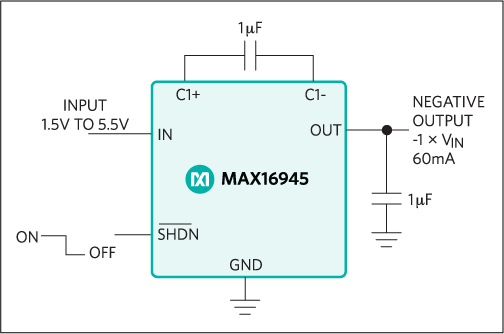

The MAX16945 ultra-small, monolithic, CMOS charge-pump voltage inverter accepts an input voltage ranging from +1.4V to +5.5V. This device features an ultra-low 12Ω output resistance, permitting loads of up to 30mA at +105°C with maximum efficiency. The MAX16945 operates at a frequency of 125kHz, allowing use of small external components. Its small external components, micropower shutdown mode, and wide temperature range make this device ideal for both automotive and industrial applications.

Oscillator control circuitry and four power MOSFET switches are included on-chip. The MAX16945 comes in a 6-pin SOT23 package and operates over -40°C to +105°C.

Applications

  • Automotive and Industrial Equipment
  • GaAsFET Bias Supplies
  • Handy-Terminals, PDAs
  • Negative Supply from +5V or +3.3V Logic Supplies
  • Small LCD Panels
Show More Arrow image
