MAX16928
PRODUCTIONAutomotive TFT-LCD Power Supply with Boost Converter and Gate Voltage Regulators
Rugged Automotive TFT-LCD Power Supply Operates at 2.2MHz to Reduce Solution Size and Minimize AM Band Interference
- Part Models
- 8
- 1ku List Price
- Starting From $1.92
Part Details
- High-Power (Up to 6W) Boost Output Providing Up to 18V
- 1.8V or 3.3V Regulator Provides 500mA with External npn Transistor
- One Positive-Gate Voltage Regulator Capable of Delivering 20mA at 28V
- One Negative-Gate Voltage Regulator
- High-Frequency 2.2MHz Operation
- Flexible Stand-Alone Sequencing
- True Shutdown™ Boost Converter
- Internal Soft-Start
- Overtemperature Shutdown
- -40°C to +105°C Operation
- AEC-Q100 Qualified

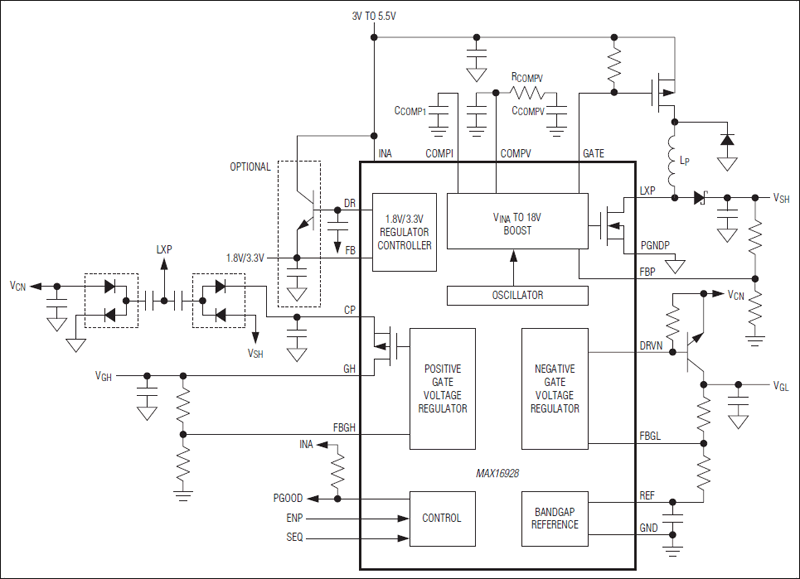

The MAX16928 is a highly integrated power supply for automotive TFT-LCD applications. The device integrates one boost converter, one 1.8V/3.3V regulator controller, and two gate voltage regulators. The device comes in several versions to satisfy common automotive TFT-LCD power-supply requirements (see the Ordering Information table in the full data sheet).
The boost converter uses spread-spectrum modulation to reduce peak interference and to optimize EMI performance. The sequencing input (SEQ) allows flexible sequencing of the positive-gate and negative-gate voltage regulators. The power-good indicator (PGOOD) indicates a failure on any of the converters or regulator outputs. Integrated thermal shutdown circuitry protects the device from overheating.
The MAX16928 is available in a 20-pin TSSOP package with exposed pad and operates over the -40°C to +105°C temperature range.
Applications
- Automotive Central Information Displays
- Automotive Dashboards
- Automotive Navigation Systems
Documentation
Data Sheet 1
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| MAX16928AGUP/V+ | 20-TSSOP_4.4_EP-4.4_MM | ||
| MAX16928AGUP/V+T | 20-TSSOP_4.4_EP-4.4_MM | ||
| MAX16928BGUP/V+ | 20-TSSOP_4.4_EP-4.4_MM | ||
| MAX16928BGUP/V+T | 20-TSSOP_4.4_EP-4.4_MM | ||
| MAX16928CGUP/V+ | 20-TSSOP_4.4_EP-4.4_MM | ||
| MAX16928CGUP/V+T | 20-TSSOP_4.4_EP-4.4_MM | ||
| MAX16928DGUP/V+ | 20-TSSOP_4.4_EP-4.4_MM | ||
| MAX16928DGUP/V+T | 20-TSSOP_4.4_EP-4.4_MM |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Jul 13, 2022 - 2236A ASSEMBLY |
||
| MAX16928AGUP/V+ | PRODUCTION | |
| MAX16928AGUP/V+T | PRODUCTION | |
| MAX16928DGUP/V+ | PRODUCTION | |
| MAX16928DGUP/V+T | PRODUCTION | |
|
May 11, 2022 - 2236N ASSEMBLY |
||
| MAX16928BGUP/V+ | PRODUCTION | |
| MAX16928BGUP/V+T | PRODUCTION | |
| MAX16928CGUP/V+ | PRODUCTION | |
| MAX16928CGUP/V+T | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
