MAX16836
High-Voltage, 350mA, High-Brightness LED Driver with PWM Dimming and 5V Regulator
350mA LED Driver Provides 3.5% Current Accuracy for Long LED Strings and PWM Dimming
Top
Overview
Features and Benefits
- +6.5V to +40V Operating Range
- Adjustable LED Current (35mA to 350mA)
- ±3.5% LED Current Accuracy
- High-Voltage DIM Pin for Dimming Interface
- Integrated Pass Element with Low-Dropout Voltage (0.55V typ)
- +5V Regulated Output with 4mA Source Capability
- Parallel Operation for LED Current > 350mA
- Differential LED Current Sense
- Low Shutdown Supply Current (35µA typ)
- Low 200mV Current-Sense Reference Reduces Power Losses
- Wave-Shaped Edges Reduce Radiated EMI During PWM Dimming
- Thermal Shutdown
- Output Short-Circuit Protection
- Available in Small, Thermally Enhanced, 5mm x 5mm, 16-Pin TQFN Package and in 8-Pin SO with Exposed Pad Package
- -40°C to +125°C Operating Temperature Range

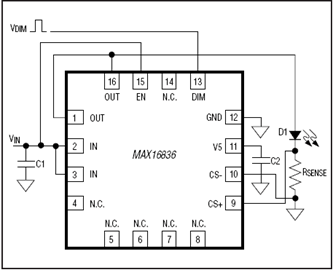

Product Details
The MAX16836 current regulator operates from a 6.5V to 40V input-voltage range and delivers up to a total of 350mA to one or more strings of high-brightness LEDs (HB LEDs). The output current of the MAX16836 is adjusted by using an external current-sense resistor in series with the LEDs. A dimming input allows wide-range "pulsed" PWM operation. Wave-shaping circuitry reduces EMI. The differential current-sense input increases noise immunity. The MAX16836 is well suited for applications requiring a high-voltage input and is able to withstand automotive load-dump events up to 40V. An on-board pass element minimizes external components while providing ±3.5% output-current accuracy. Additional features include a 5V regulated output and short-circuit and thermal protection.
The MAX16836 is available in a thermally enhanced, 5mm x 5mm, 16-pin TQFN package and in an 8-pin SO package with exposed pad. The MAX16836 is specified over the automotive -40°C to +125°C temperature range.
Applications
- Automotive Interior: Map, Courtesy, and Cluster Lighting
- Automotive Exterior: Tail Lights and CHMSL
- Emergency Vehicle Warning Lights
- Navigation and Marine Indicators
- General Lighting
- Signage, Gasoline Canopies, Beacons
Product Categories
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
Documentation & Resources
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|
| MAX16836ASA+ | Material Declaration | Reliability Data | 8-SOIC_N-150_MIL | |
| MAX16836ASA+T | Material Declaration | Reliability Data | 8-SOIC_N-150_MIL | |
| MAX16836ATE+ | Material Declaration | Reliability Data | 16-LFCSP-5X5X0.75 | |
| MAX16836ATE+T | Material Declaration | Reliability Data | 16-LFCSP-5X5X0.75 | |
| Wafer Fabrication Data |
