MAX16835
High-Voltage, 350mA, Adjustable Linear High-Brightness LED Driver
350mA LED Driver Provides 3.5% Current Accuracy for Long LED Strings
Top
Overview
Features and Benefits
- +6.5V to +40V Operating Range
- Adjustable LED Current (35mA to 350mA)
- ±3.5% Output Current Accuracy
- Integrated Pass Element with Low-Dropout Voltage (0.55V typ)
- Output Short-Circuit Protection
- +5V Regulated Output with 4mA Source Capability
- Thermal Shutdown
- Differential LED Current Sense
- High-Voltage Enable Pin for Dimming Interface
- Low Shutdown Supply Current (35µA typ)
- Low 200mV Current-Sense Reference Reduces Power Losses
- Wave-Shaped Edges Reduce Radiated EMI During PWM Dimming
- Available in Small, Thermally Enhanced, 5mm x 5mm, 16-Pin TQFN Package
- -40°C to +125°C Operating Temperature Range
Product Details

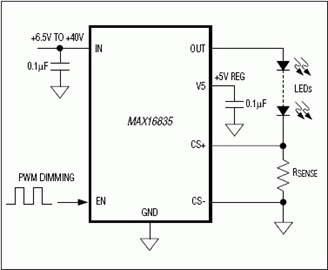

The MAX16835 current regulator operates from a 6.5V to 40V input voltage range and delivers up to a total of 350mA to one or more strings of high-brightness LEDs (HB LEDs). The output current of the MAX16835 is adjusted by using an external current-sense resistor in series with the LEDs. An enable input allows wide-range "pulsed" dimming. Wave-shaping circuitry reduces EMI. The differential current-sense input increases noise immunity. The MAX16835 is well suited for applications requiring high-voltage input and is able to withstand automotive load-dump events up to 40V. An on-board pass element minimizes external components while providing ±3.5% output current accuracy. Additional features include a 5V regulated output and short-circuit and thermal protection.
The MAX16835 is available in a thermally enhanced, 5mm x 5mm, 16-pin TQFN package and is specified over the automotive -40°C to +125°C temperature range.
Applications
- Automotive Interior: Map, Courtesy, and Cluster Lighting
- Automotive Exterior: Tail Lights and CHMSL
- Warning Lights for Emergency Vehicles
- Navigation and Marine Indicators
- General Illumination
- Signage, Gasoline Canopies, Beacons
Product Categories
Product Lifecycle
Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
